Home > Industrial Equipment & Components > Cleaning Machine > High Pressure Cleaner > 1500bar Diesel Electric Cleaning Equipment Industrial Tube Cleaning High Pressure Jetting Hydro Blasting Machine
1500bar Diesel Electric Cleaning Equipment Industrial Tube Cleaning High Pressure Jetting Hydro Blasting Machine
US$ 19000.00
≥1 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1500bar Industrial Ultra-high Pressure Cleaning Machine High Pressure Water Gun Rust Removal and Paint Removal CustomizationUS$ 19500.00MOQ: 1 Set -
High Pressure Heat Exchanger Cleaning Machine Industry Pipe Tube Cleaning Service Hydro Blasting Machine EquipmentUS$ 16000.00MOQ: 1 Set
-
Industrial High-Pressure Water Blaster Machine 22000psi 85L/Min Diesel Engine Hydro Jetting Equipment for Industrial CleaningUS$ 16000.00MOQ: 1 Set
-
Advantaged High Pressure Hydro Jetting Machine Electric 10000 Psi 700bar New Used Cold Water Jet Cleaning Unit Pump EngineUS$ 8000.00MOQ: 1 Set
-
Electric Motor Driven Ultra High Pressure Water Cleaning Machine 1500 kg High Pressure PumpUS$ 14500.00MOQ: 1 Set
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
Shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Electric
use
Aluminum formwork cleaning
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
110kw
dimension(l*w*h)
280*160*180cm
warranty
1 Year
max. pressure
150Mpa
weight (kg)
2000 kg
Name
Aluminum formwork cleaning machine
Working pressure
150Mpa/1500bar
Water flow
40 L/min
Electric motor drive
90kw
High pressure hose
50meters
cleaning nozzle
can be customized
function
Aluminum formwork cleaning
machine color
canbe customized
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
motor, Pump, Engine
Key Selling Points
Long Service Life
Marketing Type
New Product 2024
Product Overview
High pressure hydro jet machine
This high pressure hydro jet machine is driven with 6-cylinder diesel engine, Max. working pressure 22000psi/1500bar; chould be better for industrial heavy dirt cleaning, condenser/ heat exchanger pipe cleaning, tube/tank cleaning, marine rust paint removal, concrete surface roughening, cement removal, etc. welcome customized.
FEATURES AT A GLANCE
Model: RLB501500
Rate pressure: 150Mpa/1500bar/22000psi
water flow: 50L/min / 13.2 GPM
pump speed: 366rpm
pump plunger diameter: 24mm;
with regulating valve, safety valve
pressure gauge;
Diesel engine drive: 264kw, 6-cylinder;
Fuel tank & water tank & booster pump with water inlet filter.
Name: High pressure plunger pump
Rate pressure: 150Mpa/1500bar/22000psi
water flow: 50L/min / 13.2 GPM
pump speed: 366rpm
pump plunger diameter: 24mm;
with regulating valve, safety valve
pressure gauge;
PRODUCT SPECIFICATIONS
Model |
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
RLB501500 |
150MPa/1500bar |
50 L/min |
160kw |
225kw |
RLB701200 |
120Mpa/1200bar |
70 L/min |
160kw |
225kw |
RLB851500 |
150Mpa/1500bar |
85 L/min |
200kw |
264kw |
RLB501000 |
100Mpa/1000bar |
50 L/min |
90kw |
120kw |
RLB70700 |
70Mpa/700bar |
70 L/min |
90kw |
120kw |
RLB60500 |
50MPa/500bar |
60 Lmin |
55kw |
64kw |
RLB85500 |
50Mpa/500bar |
85 L/min |
90kw |
120kw |
RLB22500 |
50Mpa/500bar |
22 L/min |
22kw |
33kw |
PRODUCT CONFIGURATION

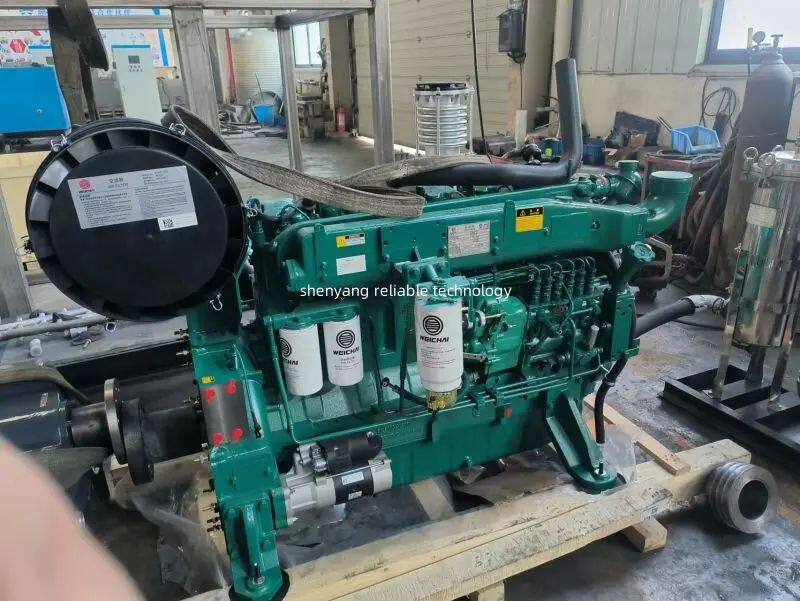

6-cylinder diesel engine
150Mpa high pressure pump
Seismic pressure gauge
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Successful Project
industrial strong dirt cleaning
Tank & reactor cleaning
concrete surface roughening
large Pipe cleaning
cement removal
concrete cutting

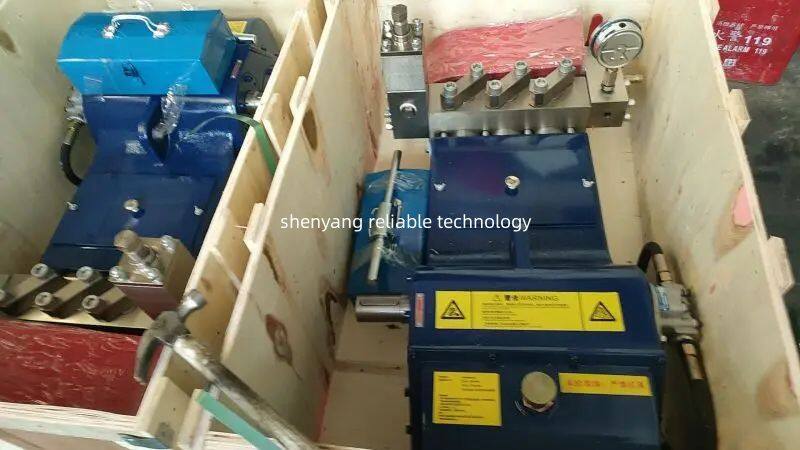

Product packaging
FAQ
Q1：What pressures and flow rates are available in these machines?
A1：Pressure ranges from 3,000 PSI to 40,000 PSI (200 to 2800 bar) or more. Flow rates typically range from 15 to 600 L/min;
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: Fan Nozzles: For surface cleaning. Rotary Nozzles: For deep cleaning and descaling. Piercing Nozzles: For cutting and precise applications. Pipe cleaning nozzles: For industrial pipe/sewer drain pipe cleaning; Turbo nozzle: for surface strong dirt cleaning, Customized Nozzles: Designed for specific tasks or materials.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
