PRODUCT DESCRIPTION:

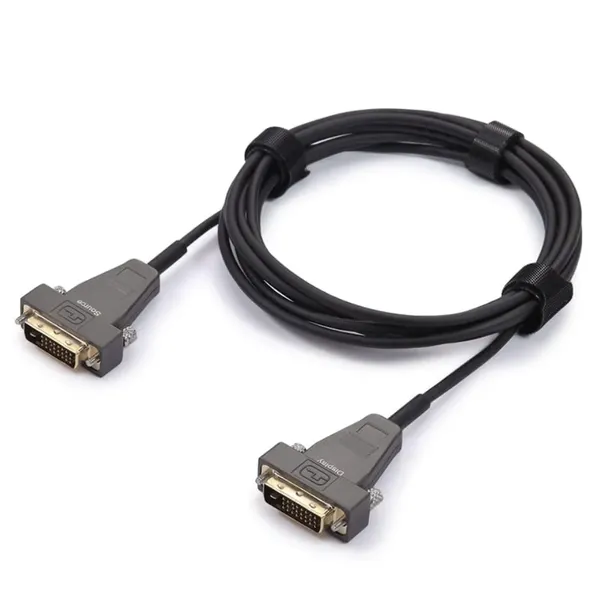

The FDVC-2001 serire DVI Fiber Active Optical Cables, is also knows as DVI AOC, DVI Active Optical Cable, DVI Fiber Optical Cable, Optical DVI Cable, Active DVI Cable, DVI Extender over Fiber Optical Cable. It is a new generation of advanced Active Optical Cables (AOC) that employs cutting edge technology to deliver unprecedented resolution, performance and value. This FDVC-2001 DVI Active Optical Cable offers compact design, reliable transmission of WUXGA (1920×1200) or 1080p@60Hz (4K 30Hz) signals up to 100m. With low power consumption and support for EDID and HDCP, it provides easy installation and compatibility for enhanced flexibility in diverse environments.
Designed for durability and reliability, the DVI Active Optical Fiber Cables feature an industrial-grade TPU jacket, which provide exceptional protection and enables these cables to operate flawlessly in a wide temperature range, from -40℃ to +80℃. With this rugged construction, these cables are ideal for demanding environments such as Medical Surgeries, Live Events Rental, Military applications, Shipboard installations, Temporary Staging, or any scenario that demands extended HDMI connectivity in challenging conditions.
Highlight Features:
Extends WUXGA (1920×1200) at 60Hz or 1080p at 60Hz (36bit, 3.4 Gbps/ch)
Single channel DVI interface, support up to 10.2Gbps bandwidth
Thinner, lighter and softer than conventional copper cable
Operated by DVI source without external power
Transmits DVI data up to 100m (328feet) over Optical hybrid cable
Supports 3D contents transmission
Complies with EDID, HDCP
Extends any DVI Single-Link resolution up to 328 ft. (100 meters)
Applications:

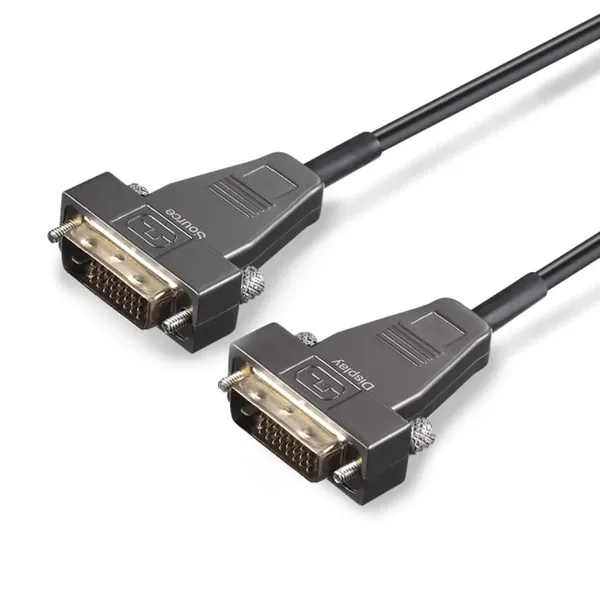

Connector A: DVI-D 24+1 Male
Connector B: DVI-D 24+1 Male
Cable: 4-core Fiber and 8-core Copper Hybrid Cable
Protocols Supported: DVI
Length: Up to 100m (328ft)
Cable Diameter: 4.0mm
Jacket: PVC, RoHS Directive-compliant
Video Resolution: 4K@30Hz, 1080P
Bandwidth: 10.2Gbps
Minimum Bend Radius: 40mm
Power Supply: No external power supply required, plug and play
Applications:
Digital signage
LED signs & monitors for stadiums,hospitals,shipping malls
Medical imaging equipment
Airport boarding video information system
Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
Radio and TV station
Video conference equipment
Security monitoring system
