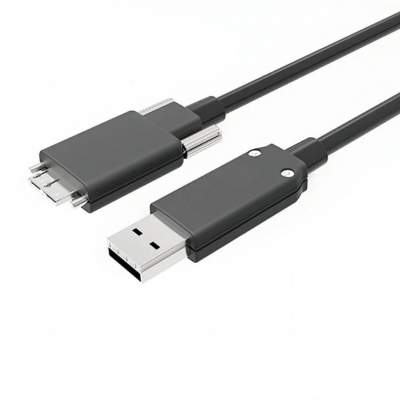

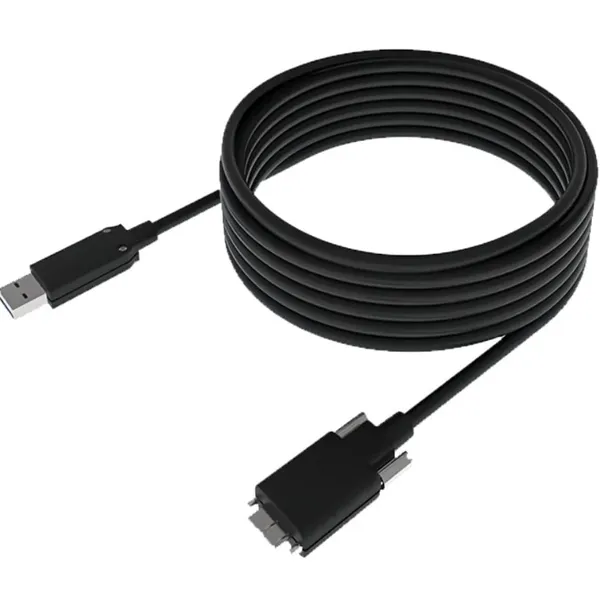

USB3.1 Gen1 Hybrid AOC-Active Optical Cable-AM to Micro-B 20m 5Gbps

PRODUCT DESCRIPTION:

The FUBC-31AB-XX USB 3.1 Gen 1(5Gbps) Hybrid AOC-Active Optical Cable, type A Male to Micro-B offer a solution to a significant limitation of pure optical cables: the inability to power end devices.

Employing a sleek, high-flex (4.8 mm) optical fiber as its transmission medium, the USB 3.1 Hybrid Active Optical Cable innovatively integrates copper for supplying power to both the cable’s active components and the connected device(s), particularly when they’re bus-powered.

Extending the USB 3.x bus to a remarkable 20 meters or 65 ft, this USB 3.1 Hybrid Active Optical Cable ensures a maximum bandwidth speed of 5 Gbps. With a Micro-B connector boasting screw lock support, it’s perfectly suited for machine vision, industrial, and robotic applications.

Max Transmission Speed: USB 3.1 @ 5Gbps

Maximum Transmission Length: 20 meters (65ft), USB 2.0 up to 50 meters (115ft)

Power Supply: Support 5V 900mA max to the remote device

Easy Installation: Hot-plugging, no driver required

EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment

Customizable: Up to 20m maximum length, custom length(5m/10m/15m/20m), logo, and packaging available

Specifications:

Host side: USB 3.1 Type-A plug, dimensions: 34mm x 16mmx 8mm

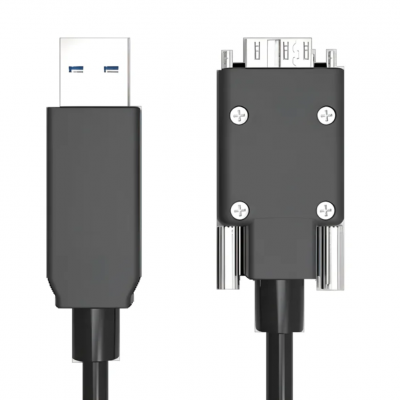

Device side: USB 3.1 Micro-B plug with locking screws, dimensions: 36mm x 22mm x8mm

Cable diameter: 4.8 mm

Bend radius: 40 mm

High flex rated for for >10 million cycles for bending stroke of 1m, velocity 80 cycles/min

Tensile Strength(Long Term/Short Term): 150N/300N

Crush Resistance (Long Term/Short Term)/100mm: 500N/1000N

Supply voltage: 4.75 – 5.25 V

Power dissipation: 0.95 W

Device supply current: Max 5V – 900mA (up to 20m), 600mA (21m-50m)

Operating conditions: -10’C -55′C, 15%-80% humidity

Max temperature gradient: 6′ C per hour

Compliance: FCC/CE/RoHS

Applications:

Machine Vision Camera Link

Medical Imaging Equipment

Machine Vision
