500bar to 1500bar Ultra High Pressure Water Jetting Pump High Quality Triplex Piston High Pressure Water Pump
US$ 3000 - 9000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Cold Water High Pressure Cleaner
Certification:
CE
Warranty:
One year
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
High Pressure Water Jet Pump 50Mpa to 150Mpa Big Flow Industrial CleaningUS$ 3000 - 9000MOQ: 1 Set -
Ultra High Pressure 22000psi 150Mpa Plunger Pump New Condition High Pressure Water Blasting Cleaner for Cold Water CleaningUS$ 3000 - 9000MOQ: 1 Set
-
280Mpa 2800bar Ultra High Pressure Triplex Plunger High Pressure Water Jetting Pump Rust Paint Removal PumpUS$ 3000 - 9000MOQ: 1 Set
-
Ultra High Pressure 40000psi/2800bar Water Jet Pump New Condition Three Piston Plunger Pump for Road Mark Removal Water BlastingUS$ 3000 - 9000MOQ: 1 Set
-
1000bar High Pressure Water Jetting Pump Triplex Plunger Pump 100Mpa CustomizedUS$ 3000 - 9000MOQ: 1 Set
Type
Cold Water High Pressure Cleaner
Certification
CE
Warranty
One year
Drive
Diesel
Application
Industrial
Condition
New
After-sales Service
Yes
Operation Type
Movable
Customized
Customized
Nozzle Type
Fan-Shaped Nozzle
Transport Package
Wooden case
Specification
120*60*30cm
Trademark
RELIABLE
Origin
China
500bar to 1500bar ultra High Pressure Water Jetting Pump High Quality Triplex Piston High Pressure Water Pump
Product description
Performances and Characteristics
The high-pressure plunger pump can use the water jet method to assist subsidence in the construction of hard soil layers. The high-pressure water jet guide hole is composed of a high-pressure water pump, a high-pressure water pipe, a steel pipe, and a water jet nozzle. Inject high-pressure water into the body to liquefy the surrounding soil to reduce the resistance during the sinking of the pile, and also play a certain role in lubrication, so that the pile can sink smoothly in the dense soil layer or other soil layers (general water injection The sinking is also combined with vibration, hammering, etc. to assist the sinking) In the reinforced concrete sheet pile, a water injection channel must be reserved in the middle, that is, a hole in the middle that is empty and can be used for water injection. Steel sheet piles are generally taken along the siding to secure the jet piping.

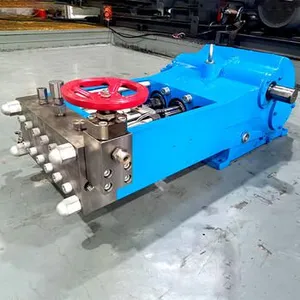

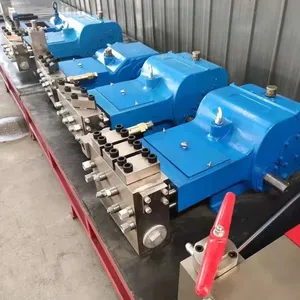

High pressure plunger pump
Pressure range from 500bar to 1500bar; Max. 2800bar; has both electric motor drive and diesel engine drive.
Pressure regulating valve.
Pressure regulating valve setting on the pump
Could be adjust the pressure easily.
Optional accessories
Application display
FAQ:
Q1：What pressures and flow is suitable to assist pilot hole piling?
A1：Pressure normally suggest 200-300bar; Flow rates suggest 170-600L/min, more higher water flow, more better piling effect.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: If for assist pilot hole piling, need to confirm the type and size of the pilot. 4# steel sheet pilot suggest 170L/min, 6# steel sheet pilot, Cement wave pile， PC pilot, suggest 320L/min. or can customized according to your request.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
