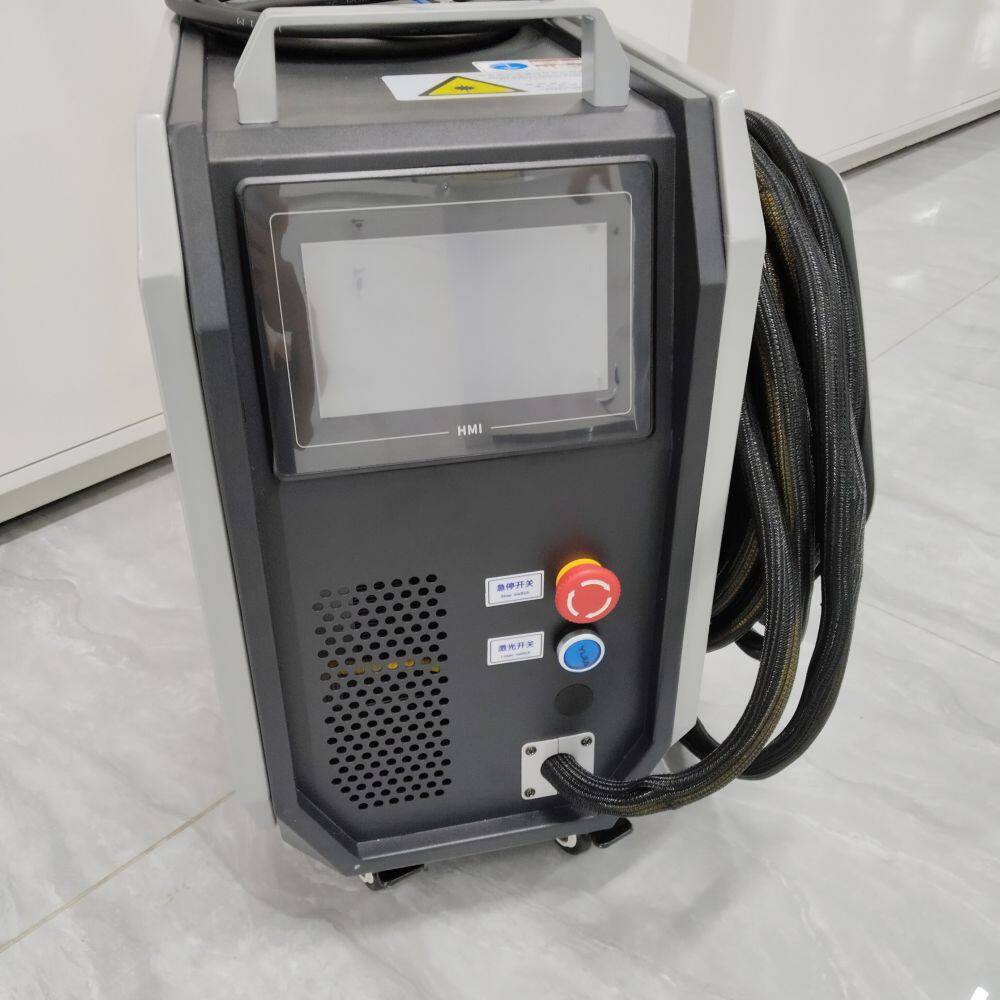

FMW Handheld Laser Welding4 In1 Machine 1500W/2000W/3000W for Stainless Steel Aluminum Carbon Steel Copper

FMW series air-cooled continuous fiber lasers are independently developed and produced by Maqing Laser. Compared with traditional gas and solid lasers,the products have the characteristics of high electro-optical conversion efficiency and excellent beam quality. At the same time, due to the coilability of opticalfiber, the fiber laser structure is more compact. This series of products integrates high electro-optical conversion efficiency, high output power, excellent

beam quality, compact structure, maintenance-free, low cost and other advantages. It can be widely used in metal welding, cutting, and other industrial processing, military defense, scientific research and other scenarios.

FMW series handheld laser welding machine can be equipped with a thread machine to reduce the gap requirements of parts and further improve the  welding quality. It can also be used in conjunction with a collaborative robot, and the welding gun can be fixed on the collaborative robot to reduce the labor intensity of the operator and improve the welding quality of the weld

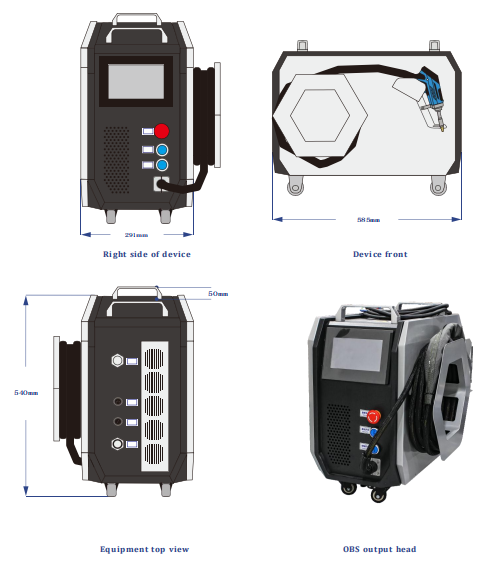

Lightweight and flexible to hold     The whole machine is compact and integrated

Laser welding heads are widely used in complex and irregular welding procedures in industries such as stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel furniture, etc.; they perfectly replace traditional argon arc welding, stainless steel plates, iron plates, aluminum plates and other metal material welding. Smart internal design and good interactive control system expand the tolerance range of processed parts and weld width, solve the disadvantage of small spot, and better weld formation The model is lightweight and adopts ergonomic design, which makes it comfortable to hold. It can be easily controlled with one hand and is easy to operate. It has multiple safety alarms and automatically locks the light after the workpiece is removed, which is highly safe. Beautiful welds, fast speed, no consumables, no weld marks, no discoloration, and no need for post- grinding; A variety of nozzle angles can be configured to meet the welding needs of different products.
