Q378 Single Hook Shot Blasting Machine, Valve, Gear and Other Workpiece Surface Strengthening Cleaning, On-site Installation and Commissioning

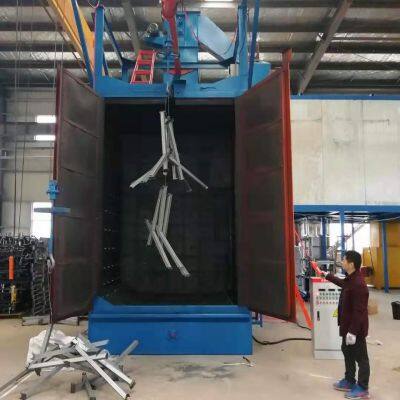

Q378 Single Hook Shot Blasting Machine, Valve, Gear and Other Workpiece Surface Strengthening Cleaning, On-site Installation and Commissioning photo-1

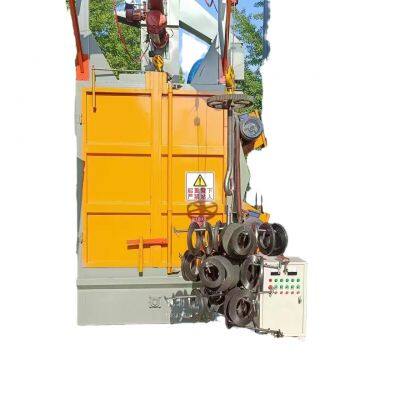

Q378 Single Hook Shot Blasting Machine, Valve, Gear and Other Workpiece Surface Strengthening Cleaning, On-site Installation and Commissioning photo-2

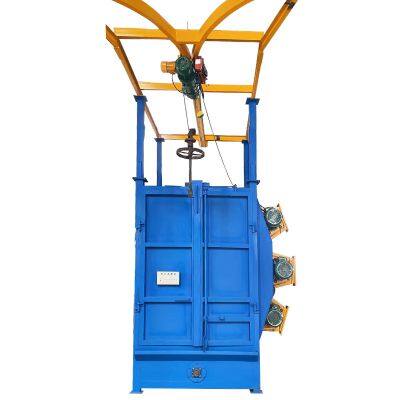

Q378 Single Hook Shot Blasting Machine, Valve, Gear and Other Workpiece Surface Strengthening Cleaning, On-site Installation and Commissioning photo-3

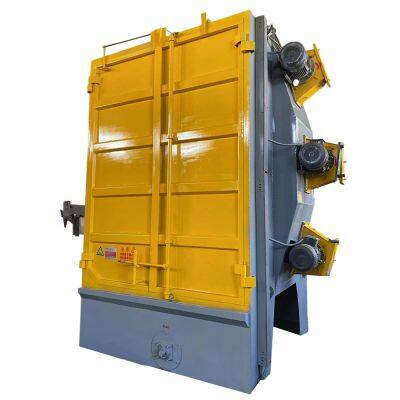

Q378 Single Hook Shot Blasting Machine, Valve, Gear and Other Workpiece Surface Strengthening Cleaning, On-site Installation and Commissioning photo-4
Q378 Single Hook Shot Blasting Machine, Valve, Gear and Other Workpiece Surface Strengthening Cleaning, On-site Installation and Commissioning photo-5
US$ 8000 ≥1 Set
Key Specifications
Get Latest Price
Warranty:
one year
After-sales Service:
on line support
Transport Package:
export standard
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Warranty one year
After-sales Service on line support
Transport Package export standard
Specification Q376
Trademark Ruigang
Origin China
Hook type sand blasting machine surface treatment equipment for sandblasting, rust removal, and removal of oxide scale

Q37 Hook Type Sand Blasting Machine

  1. It is suitable for surface cleaning or strengthening of castings, forgings, welded parts and heat-treated parts of various varieties, large, medium and small batches. It is divided into two main forms: single hook type and double hook type.

  2. The chamber adopts a fully enclosed structure, special wear-resistant alloy cast iron guard plate, and no projectile splashing phenomenon.

  3. The electric hoist is used to realize the loading, unloading, lifting and walking of the workpiece; the self-rotation device is used to realize the forward and reverse rotation of the workpiece in the shot blasting chamber.

  4. Automatic or manual control is optional.

  5. It has the characteristics of no pit, compact structure and high productivity.

Automatic Forging Casting Part Cleaning Gear-Bearing ISO9001 CE Approved Metal Polishing Machine Shot Blasting PLC Controlled
ItemUnitQ376Q378Q3710Q3720Q3730Q3740
Single hook lifting weightkg60010001000200030005000
Shot blasting capacitykg/min2X1502X2002X2203X2203X2506X250
Separator capacityT/h253030454560
Lifting capacity T/h253030454560
Max single sizemmΦ600
X1200
Φ800
X1500
Φ1000
X2000
Φ1200
X2200
Φ1400
X2700
Φ1600
X3000
Ventilation capacitym 3/h500053009600156001850022000
Total powerkw≈23≈34≈48≈60≈67≈80
Automatic Forging Casting Part Cleaning Gear-Bearing ISO9001 CE Approved Metal Polishing Machine Shot Blasting PLC Controlled
Automatic Forging Casting Part Cleaning Gear-Bearing ISO9001 CE Approved Metal Polishing Machine Shot Blasting PLC Controlled
Automatic Forging Casting Part Cleaning Gear-Bearing ISO9001 CE Approved Metal Polishing Machine Shot Blasting PLC Controlled



Automatic Forging Casting Part Cleaning Gear-Bearing ISO9001 CE Approved Metal Polishing Machine Shot Blasting PLC ControlledAutomatic Forging Casting Part Cleaning Gear-Bearing ISO9001 CE Approved Metal Polishing Machine Shot Blasting PLC Controlled

Automatic Forging Casting Part Cleaning Gear-Bearing ISO9001 CE Approved Metal Polishing Machine Shot Blasting PLC Controlled
