Help CenterFood Grade 304 304L 316 316L Sanitary Seamless Stainless Steel Tube / Ss Pipe With Low Price
Related Products
-
Cold Rolled Stainless Steel Welded Pipe 304/201/316/321 TubeNegotiableMOQ: 1 Ton -
Factory Outlet Cold Rolled 304 316 201 321 2205 Bright Annealed Sanitary Polished Tube Pipe ASTM GB En AISI JIS DINUS$ 2 - 50MOQ: 1 Kilogram
-
ASTM A270 SUS AISI 201 304 304L 316 316L Welded/Seamless Tube Stainless Steel Sanitary Round PipeUS$ 2 - 50MOQ: 1 Kilogram
-
ASTM SUS304 304L 316 316L Welded Seamless Steel Tube 4 Inch 6 Inch 8 Inch Stainless Steel Pipe for SanitaryUS$ 2 - 50MOQ: 1 Kilogram
-
Multiple Uses ASTM AISI Sanitary Standards Stainless Steel Pipe 304 304L 316 Stainless Steel Pipes Tube Accept CustomizationNegotiableMOQ: 1 Ton
Item |
Stainless Steel Round Pipe / Tube |
|
Steel grade |
200 / 300 / 400 series |
|
Standard |
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296 |
|
Material |
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202 |
|
Surface |
Polishing,annealing,pickling,bright(NO.1/NO.2D/NO.2B/BA/NO.3/NO.4/NO.7/NO.8)
|
|
Type |
Hot rolled and cold rolled |
|
Size |
Wall thickness |
0.15-50mm |
Outer diameter |
DN15-DN600 |
|
Delivery time |
7-35 weekdays |
|
Package |
Standard Export Package,Suit for All Kinds of Tran |
|
Surface treatment of stainless steel coils
| Surface Finish | Definition | Application |
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA/8K mirror | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| Hairline | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe. |
| Normal pipe size |
OD | Normal wall thickness | |||||||||||||
| DN | inch | ASME | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2 | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4 | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1 | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1.25 | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | |||||
| 40 | 1.5 | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2 | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2.5 | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3 | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.25 | |||||
| 90 | 3.5 | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | |||||||
| 100 | 4 | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5 | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | |||||
| 150 | 6 | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||||
| 200 | 8 | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10 | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 18.58 | 25.4 |
| 300 | 12 | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14 | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16 | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 | |
| 450 | 18 | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20 | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | |
| 550 | 22 | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | ||
| 600 | 24 | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | |
| 650 | 26 | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | |||||||||
| 700 | 28 | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||
| 750 | 30 | 762 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | ||||||||
| 800 | 32 | 812.8 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||
| 850 | 34 | 863.6 | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | 12.7 | |||||||
| 900 | 36 | 914.4 | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 | 12.7 | |||||||
Stainless Steel Coil is widely used in fields such as tableware, household appliances, machinery manufacturing, building decoration, coal, petrochemical, etc. due to its excellent corrosion resistance, heat resistance, and low temperature resistance.

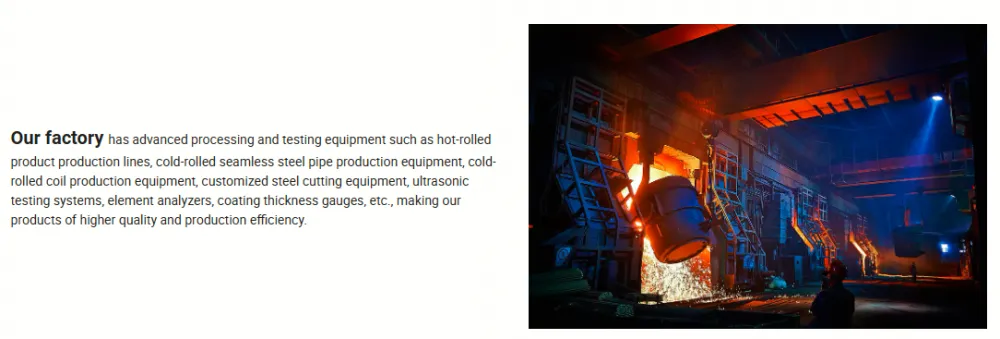

Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
