GE IS200EPSMG1AED Exciter Power Supply Module

GE IS200EPSMG1AED Exciter Power Supply Module thumbnail-2

GE IS200EPSMG1AED Exciter Power Supply Module thumbnail-3

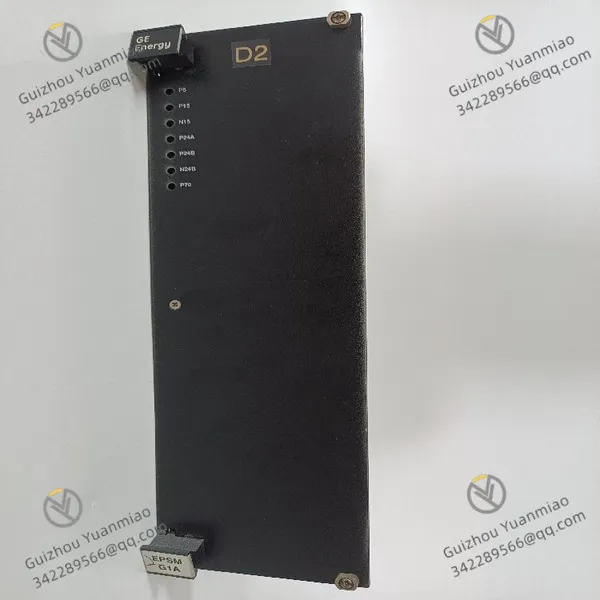

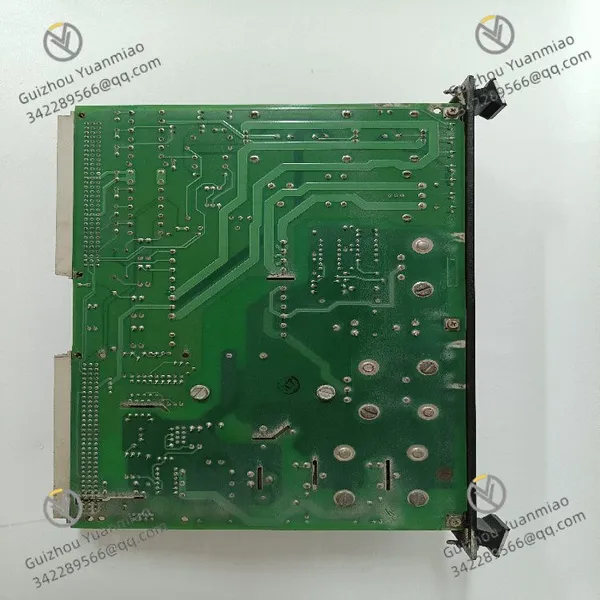

GE IS200EPSMG1AED Exciter Power Supply Module photo-1

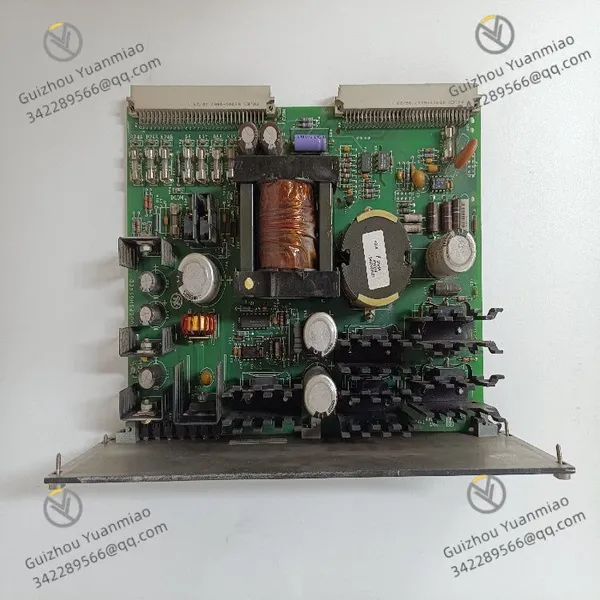

GE IS200EPSMG1AED Exciter Power Supply Module photo-2

GE IS200EPSMG1AED Exciter Power Supply Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -20℃~+60℃

Relative Humidity 5%~95% (non-condensing)

Storage Temperature -40℃~+85℃

I. Overview

GE IS200EPSMG1AED is a high-performance power supply module and a core component of the GE Mark VI series. Its core positioning is to serve as a "system power supply hub", focusing on addressing the stable power supply needs of control systems for critical equipment such as gas turbines, steam turbines, and chemical reactors in industrial scenarios. Through wide-voltage input, efficient power conversion, and redundant backup design, it provides continuous and reliable DC power for core components like CPU modules, I/O modules, and communication modules, ensuring the continuous operation of industrial automation systems in harsh environments.

This module boasts core advantages of "wide-voltage input adaptation + efficient power conversion + strong environmental resistance":

It supports a wide range of AC input from 85V AC to 264V AC, which is compatible with grid voltages in different regions worldwide (e.g., 220V AC in China, 110V AC in the United States, and 230V AC in Europe), eliminating the need for additional voltage-regulating equipment.
It outputs a stable DC power of 24V DC/10A with a power density of 240W, capable of powering 1 CPU rack and 3 I/O racks simultaneously.
Meanwhile, it features wide-temperature adaptability (-20℃~+60℃), electromagnetic interference resistance, and oil/dust-proof design, enabling continuous and stable operation in harsh industrial environments such as power plants, petrochemical facilities, and heavy manufacturing.

Compared with ordinary industrial power supplies, it has significant advantages in voltage adaptability, power density, and system compatibility. Compared with third-party power supply modules, it is natively compatible with GE Mark series control systems and supports fault self-diagnosis and redundant parallel connection, making it a key component for building high-reliability industrial power supply systems.

As a mainstream power supply module in the Mark VI series, IS200EPSMG1AED is widely used in scenarios such as gas turbine control cabinets, power plant DCS systems, and chemical reactor control units. It provides "safe, stable, and efficient" power supply support for control systems and is a core technical equipment that prevents equipment shutdown caused by power supply abnormalities and ensures the continuity of industrial production.

II. Technical Specifications

(I) Core Power Supply and Conversion Parameters

Parameter Category	Specific Specifications
Input Voltage and Frequency	AC input: 85V AC~264V AC (wide range), frequency 47Hz~63Hz (compatible with 50Hz/60Hz global power grids); supports DC input (optional: 120V DC~370V DC) for battery backup scenarios
Output Parameters	Main output: 24V DC/10A (rated power 240W), output voltage accuracy ±1% (under full-load condition); ripple and noise ≤50mVp-p (within 20MHz bandwidth) to ensure accurate data acquisition of analog I/O modules; supports fine adjustment of output voltage (adjustable from 22V DC to 26V DC) to meet the voltage requirements of different modules
Power Conversion Efficiency	Conversion efficiency ≥90% under typical load (50%~100% load) and ≥85% under light load (20% load); low-power design reduces heat generation and lowers heat dissipation costs
Redundancy and Parallel Capability	Supports parallel redundant operation of up to 4 modules (redundant cables required); total output current after parallel connection is 40A, with redundant switching time ≤1ms; supports load sharing (error ≤5%) to prevent overload of a single module

(II) Electrical and Safety Parameters

Power Supply Protection Functions: Equipped with overvoltage protection (triggered when output voltage ≥28V DC), overcurrent protection (current limiting when output current ≥12A), short-circuit protection (immediately cuts off output in case of output short circuit and automatically recovers after fault elimination), and overtemperature protection (reduces output when internal module temperature ≥85℃ and shuts down when temperature ≥95℃). These multiple protections prevent damage to the module and loads.
Electrical Isolation: Electrical isolation between input and output (isolation voltage ≥3000Vrms for 1 minute); isolation between output and ground (isolation voltage ≥1500Vrms for 1 minute), which avoids ground loop interference and protects the CPU core circuit.
Safety Certifications: Complies with UL 508 safety standard for industrial control equipment and EN 61010-1 safety standard for measurement and control equipment; leakage current ≤3.5mA (under 250V AC input), which meets industrial safety specifications and ensures the safety of operators.

(III) Physical and Installation Parameters

Physical Dimensions: Adopts the standard rack-mounted design of the Mark series, with dimensions (length × width × height) of 180mm×100mm×150mm. It is compatible with Mark VI standard racks (e.g., IC698CHS010) and can be installed side by side with CPU modules and I/O modules, saving space in the control cabinet.
Installation Method: DIN rail mounting (compatible with DIN 35mm standard rails) or screw fixing; installation torque ≤2N・m to avoid damaging the module housing due to over-tightening; module weight ≤800g, featuring a lightweight design for easy installation and maintenance.
Heat Dissipation Method: Natural convection heat dissipation (fanless); the housing adopts an aluminum alloy heat dissipation structure with high heat dissipation efficiency. When operating at full load in a 60℃ environment, the surface temperature of the module is ≤75℃, with no risk of overheating; equipped with a temperature detection probe for real-time monitoring of internal temperature.

(IV) Environmental Parameters

Operating Environment: Operating temperature range -20℃~+60℃, supporting low-temperature startup (no preheating required in -20℃ environment, startup time ≤30s); storage temperature range -40℃~+85℃; humidity range 5%~95% (non-condensing, complying with IEC 60068-2-3 standard); altitude ≤2000m (derating is required when exceeding this altitude, with output power derated by 10% for every 1000m increase in altitude).
Vibration and Shock Resistance: Vibration resistance rating of 5g (10Hz~500Hz, complying with IEC 60068-2-6); shock resistance rating of 20g (11ms pulse, complying with IEC 60068-2-27), adapting to the vibration environment of equipment such as turbines and compressors.

III. Functional Features

(I) Wide-Voltage Input and Global Adaptation to Break Grid Limitations

With "85V AC~264V AC wide-voltage input" as its core, GE IS200EPSMG1AED is compatible with different power grid environments worldwide and can be deployed without additional equipment:

Compatibility with Multi-Voltage Scenarios: It can adapt to power grids in different regions without module replacement. For example, in a gas-fired power station in China (220V AC/50Hz), the module is directly connected to the power grid; in an oil platform in Mexico (127V AC/60Hz), it automatically adapts to the input voltage without a voltage-regulating transformer and outputs stable 24V DC power, preventing module damage caused by voltage mismatch.
DC Input Expansion: Optional DC input function is available for special power supply scenarios. For example, in a wind power control cabinet in a remote area, when the power grid is unstable, it can switch to battery DC power supply (220V DC), and the module continuously outputs 24V DC to ensure the wind power pitch control system is not interrupted, avoiding wind turbine shutdown losses.
Adaptability to Grid Fluctuations: When the input voltage fluctuates within ±15% (e.g., grid voltage drops from 220V AC to 187V AC), the output voltage fluctuation is ≤±0.5% (24V DC fluctuation ≤0.12V). This ensures no deviation in temperature and pressure data collected by analog I/O modules (e.g., IS220PAICH2A) and prevents logic misjudgment of the control system.

(II) Efficient Conversion and Low-Consumption Heat Dissipation to Reduce Operating Costs

Through optimized circuit design and heat dissipation structure, the module achieves efficient power conversion and low heat generation, reducing system operating costs:

90% High Conversion Efficiency: High-efficiency conversion reduces energy waste. For example, if a chemical reactor control system requires 200W power supply and the module operates for 8,000 hours (approximately 1 year), compared with an ordinary power supply with 80% conversion efficiency, it can save electricity: 200W×(90%-80%)×8,000h=160kWh. Calculated at an industrial electricity price of 1 yuan/kWh, it saves 160 yuan in electricity costs per year and a total of 1,600 yuan within a 10-year service life cycle.
Fanless Mute Heat Dissipation: The natural convection heat dissipation design has no mechanical wear, avoiding module overheating caused by fan failure. For example, in a gas turbine control cabinet (closed environment), the fanless design prevents dust from clogging the fan, and the module operates for a long time without cleaning, reducing maintenance workload by 90%; at the same time, it operates quietly (noise ≤30dB), meeting the noise standards of control rooms.
Stable Derating at Wide Temperatures: In high-temperature environments (e.g., 60℃), the module automatically derates to 80% output (24V DC/8A), which can still meet the power supply needs of small and medium-sized control systems. For example, in a chemical workshop in southern China in summer (ambient temperature 55℃), the derated module can power 1 CPU module and 2 I/O modules, with the output voltage stably maintained at 24V±0.2V and no risk of overheating shutdown.

(III) Redundant Parallel Connection and Multiple Protections to Ensure Power Supply Safety

Through redundant parallel design and full-scenario protection mechanisms, the module prevents system failures caused by power supply abnormalities:

4-Module Parallel Redundancy: It supports parallel connection of up to 4 modules to improve system reliability. For example, in the auxiliary equipment control system of a nuclear power plant, 4 IS200EPSMG1AED modules supply power in parallel with a total output of 24V DC/40A. Under normal conditions, each module bears 25% of the load (2.5A); when one module fails, the remaining 3 modules automatically share the load evenly (3.3A per module), with a load rate of only 33%, ensuring uninterrupted power supply and meeting nuclear safety requirements (availability ≥99.999%).
Full-Scenario Fault Protection: Overvoltage/overcurrent/short-circuit/overtemperature protection covers various risks. For example, when the output end is short-circuited due to wrong wiring, the module immediately cuts off the output (short-circuit current ≤1A) to prevent burning of the CPU module (e.g., IS220UCSAH1A); after the short circuit is eliminated, the module automatically resumes power supply without manual restart, reducing downtime.
Isolation and Leakage Current Prevention: 3000Vrms input-output isolation and low leakage current ensure personnel safety. For example, in a humid food processing workshop, the module has good isolation between input and output, with leakage current ≤3.5mA, so operators have no risk of electric shock when touching the control cabinet, complying with industrial safety standards.
