DSO1200 Oscilloscope,200MHZ Multimeter Digital Oscilloscopes

DSO1200 Oscilloscope,200MHZ Multimeter Digital Oscilloscopes thumbnail-1
DSO1200 Oscilloscope,200MHZ Multimeter Digital Oscilloscopes photo-1
US$ 1 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PT
Model Number:
DSO1200
Contact Supplier Request Quote Chat Now
Shenzhen Pantai Precise Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PT
Model Number DSO1200

Specifications

1)Large 5.7 inch TFT Color LCD Display
2)6000 COUNTS high precision DMM
3)1000 waveforms save and record

Feature:



  • Hantek DSO1200 5.7" 200MHz 500MSa/s 2 Channels Digital Oscilloscope
  •
  • The Hantek DSO1200 acts as both a two channel 200 MHz oscilloscope with 500 MSa/s, or as a digital multimeter.
  • It comes complete with oscilloscope probes and multimeter probes.
  • The oscilloscope functions are intuitive and familiar to work with, so setting this 'scope up is quite easy.
  • The multimeter has Voltage, Current, Resistance, and Capacitance ranges, and it also checks diodes and continuity.
Specifications

MODE



DSO-1200

VERTICAL

Channels

2

Bandwidth

200MHz

Rise Time

1.7ns

Input Impedance

Resistance: 1M ; Capacitance: 15 pF

Input Sensitivity

10mV/div to 5V/div

Input Coupling

AC, DC and GND

Vertical Resolution

8 bits

Maximum Input

400V (DC+AC Peak)

HORIZONTAL

Real-Time Sampling Rate

250MSa/s

Equivalent Sampling Rate

50GSa/S

Time Base Range

2ns/div~1000s/div

Memory Depth

32k at Single Channel, 16k at Dual Channel

Time Base Precision

±50ppm

TRIGGER

Source

CH1, CH2

Mode

Edge, Pulse Width, Alternative

X-Y MODE

X-Axis Input

Channel 1

Y-Axis Input

Channel 2

Phrase Shift

Max.3 degree

CURSORS AND MEASUREMENT

Voltage Measuremet

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot

Time Measuremet

Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Delay Measuremet

Delay time from ch1 rising edge to ch2 rising edge

Delay time from ch1 falling edge to ch2 falling edge

Cursors Measuremet

Manual, Track, Auto Measure Modes

Waveform Signal  Process



CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert

Storage

Storage

15 Waveforms and Setups

METER MODE

Maximum  Resolution

6,000 Counts

DMM Testing Modes

Voltage, Current, Resistance, Capacitance,Diode & Continuity

Maximum Input Voltage

AC: 600V, DC: 800V

Maximum Input  Current

AC: 10A, DC: 10A

Input Impedance

10 MΩ

DISPLAY

TFT LCD Type

5.7 Inch with LED Backlight Display

Display Resolution

240 (Vertical) x 320 (Horizontal) Dots

INTERFACE

USB

USB Host / Device 2.0 Full Speed Supported

Optional

RS232, LAN

POWER SOURCE

Line Voltage Range

AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA

Battery Power (Installed)

6 Hours (Li-ion Battery)

MECHANICS

Dimension

245 x 163 x 52 (mm)

Weight

2.5Kgs

Other

GND Reference

Oscilloscope and Multimeter Independence

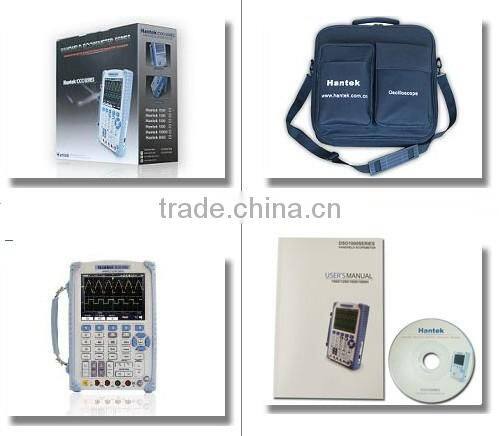

Package Including
  • 1 x Hantek DSO1200 Digital Oscilloscope
  • 1 x Box
  • 1 x Carrying bag
  • 1 x User manual
  • 1 x Disc with software

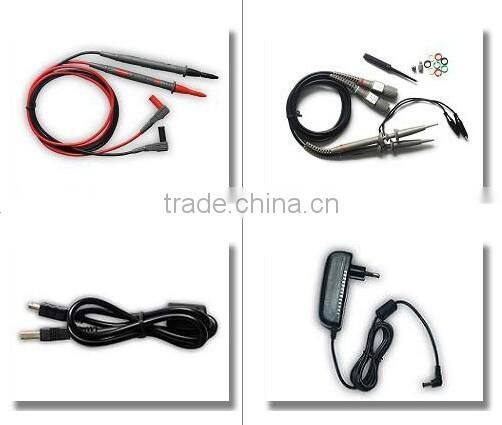

  • 2 x Multimeter test leads
  • 2 x Oscilloscope probes
  • 1 x USB
  • 1 x Power adapter
