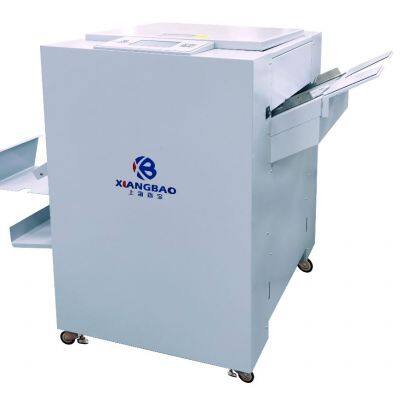

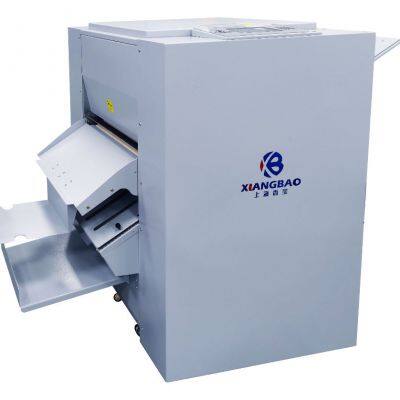

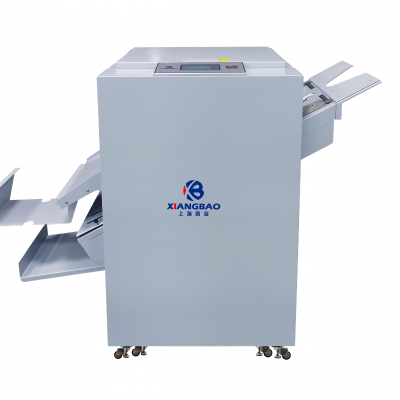

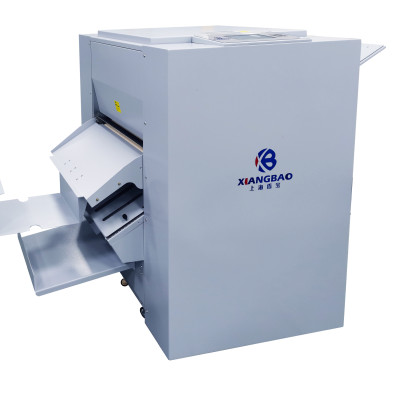

Help CenterShanghai Xiangbao XB-100D Automatic Stitching and Folding Machine
Related Products
-
Shanghai Xiangbao XB-S31T Ultra-Quiet Saddle StitcherUS$ 542MOQ: 1 Piece -
Shanghai Xiangbao XB-S60T Double-head Automatic Saddle StitcherNegotiableMOQ: 1 Piece
-
Shanghai Xiangbao Double-head Electric Saddle StitcherNegotiableMOQ: 1 Piece
-
Shanghai Xiangbao XB-1108EP Flagship Heavy-duty Paper CutterUS$ 5685MOQ: 1 Piece
-
Shanghai Horizon Standard XB-481B Sewing MachineNegotiableMOQ: 1 Piece
Product Description: Machine Features:
The machine features a touchscreen control system for easy operation, supporting both stitching and folding modes, as well as lay-flat stitching and folding modes.
Size Adjustment: Fully CNC-controlled, the side supports, folding stop, and nailing stop are all controlled by independent stepper motors. Data is entered based on paper size, and the machine automatically adjusts to the desired size, eliminating manual adjustment. Five pre-set common sizes allow for quick selection based on your needs.
conveniently-Tuning: Adjusts staple and fold position based on your needs, reducing material waste caused by errors.
Staple Heads: This machine utilizes 43/6 staple heads to make sure easy staple insertion and adjustable nail angles for different paper thicknesses.
A one-step staple adjustment mechanism allows switching between A4 and A3 positions with a single movement, eliminating the problem of nail head failure caused by difficult nail head adjustment.
The machine utilizes a thickened stainless steel U-shaped guide for smooth paper feeding. During binding, two guides simultaneously tap the paper, with a customizable number of taps (1-3) for a more even binding effect.
The folding part adopts concave and convex folding rollers: it increases friction, creates high folding pressure, and the folding pressure can be adjusted from 1 to 9 gears to meet the needs of different papers. The thickened mold spring has the characteristics of high rigidity, good elasticity, and high density. The folding lower paper part adopts concave and convex stainless steel plates, which are smoother during the paper folding process and make the folding more accurate.
The sheet metal of the machine is cut with high precision, and the surface holes are designed with round holes. During assembly, the screws can be directly installed and tightened without the need for extra adjustment steps, which makes the machine longer in service life and more stable in performance. Some holes use embedded nuts, which make the screws not easy to loosen. The machine part uses extrusion screws for transmission, which has high precision, strong stability, wear resistance, and stable folding effect.
Technical parameters:
Display Touching screen
stitching and folding format 330X480mm 148.5X210mm (width X length)
Flat stitching size 330X247mm 148.5X112mm (width X length)
Binding thickness 70g 30
nail head spacing 60mm/130mm
Structure accuracy ±0.5mm
Running speed 2400 Book A5/hour fastest
wire type 26# 0.5mm Wire
paper pat 0-3 times
Voltage/power 220V/220W
Net weight 124KG
Gross weight 178KG
Machine size 1518X675X965mm
Notes Simple paper collection tray, no rear shot, can be connected to a cutting knife
