Help CenterCustomized BALLASTED ROOF MOUNTING SYSTEM Solar Bracket Framed or Frameless Landscape or Portrait
Related Products
-
METAL ROOF MOUNTING SYSTEM Solar Bracket Framed or Frameless 0°-60°Flushed or Tilted With RoofNegotiableMOQ: 1 Set -
On Grid Photovoltaic Energy Storage Integrated System 50KW/100WKH SRM-E215-100K-400-LUS$ 21500MOQ: 1 Set
-
Hybrid Photovoltaic Energy Storage Integrated System 50kW/100kWh SRM-SAC50DPNegotiableMOQ: 1 Set
-
10 Feet Container Energy Storage System SRM-LES-H10-100M2PNegotiableMOQ: 1 Set
-
Large Container Energy Storage System SRM-E4180-2100K-690-LNegotiableMOQ: 1 Set

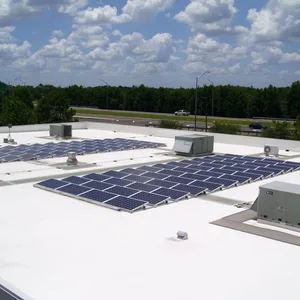

Ballasted roof mount system optimizes the performance of solar modules,that a unique modular support concept provides the flexibility to design, and install the grid mounting structure around roof obstructions and avoid shaded areas. Based on stress analysis and wind engineering analysis, wind tunnel testing data to optimize the system. designs that require less ballast weight and no or less roof penetrations for most site applications and complied with the local building code and other construction acts.
SOLAROOM ballasted roof mount system use HDP galvanized steel, SUS304 stainless steel, AL6063, AL6005 anodized aluminum alloy as the structure materials to provide long term corrosion resistance, suitable for extremely climate condition. Pre-assembled mounting assembly and fewer hardware components greatly reduce on site assembly thus saving both valuable time and costs on every roof installation. The design also provides flexibility for a wide range of roof and installation variations. Tilt angle is available in 5°, 10°, 15° and 20° to maximize PV output as required by project location. Custom orders of other angles are available.
It is widely used in commercial & residential distributed solar power system.
Unique modular structure design optimizes the performance of the solar system. It provides flexibility on installation on different roof condition, even around roof obstructions and help avoiding shaded area.Customized requirements available.
InstallationType : BUR; PVC; TPO; SMS; Most Low Slope Roofs
Tilt Angle : 5°, 10°, 15°, 20° or Customized
Max Snow Load :1.4KN/m2 through add snow feet
Max.Wind Speed : 50m/s (110mph) through add penetrations
Design Standards : AS/NZS1170,DIN1055,IBC2006,etc.
Module Compatibility : All Major Brands Modules
Module Configuration : Landscape or Portrait
Warranty : Fifteen Years
