Help CenterOn Grid Photovoltaic Energy Storage Integrated System 50KW/100WKH SRM-E215-100K-400-L
Related Products
-
Hybrid Photovoltaic Energy Storage Integrated System 50kW/100kWh SRM-SAC50DPNegotiableMOQ: 1 Set -
10 Feet Container Energy Storage System SRM-LES-H10-100M2PNegotiableMOQ: 1 Set
-
Large Container Energy Storage System SRM-E4180-2100K-690-LNegotiableMOQ: 1 Set
-
Large Container Energy Storage System SRM-E2236-1260K-690-ANegotiableMOQ: 1 Set
-
10 Feet Container Energy Storage System SRM-LES-H10-100M1PNegotiableMOQ: 1 Set
1、Flexible matching,supporting the parallel use of multiple units in 1+N mode;
2、High power density,compact size,small footprint,and convenientinstallation and transportation;

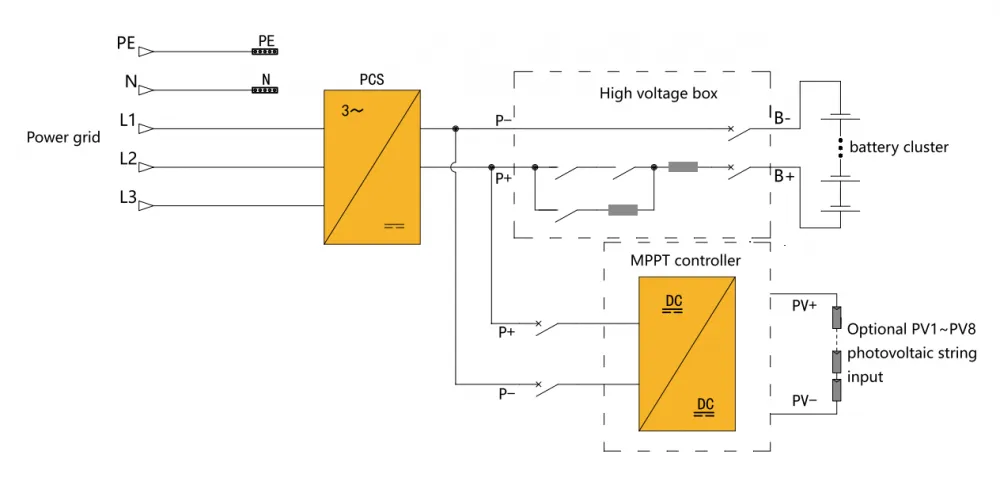

3、Support photovoltaic access and match distributed MPPT controller;
4、Optional off-grid switching components are available to realize uninterrupted power supply after power outage;
5、4G,WIFI online intelligent monitoring,remote inspection,reducing on-site manual inspection tasks;
6、Deploy on demand,operate automatically during peak shaving valley filling,support linkage control of BMS,PCS and EMS systems,and have multiple protections;
7、The battery is liquid-cooled,with refined constant temperaturecontrol and management,small cell temperature difference and longlife;
8、Pack level+whole cabinet fire protection,perfluorohexanonerapid fire extinguishing,high safety and reliability.
|
Product Model |
SRM-E215-100K-400-L | |
| DC Battery |
Cell type |
LFP 280Ah |
|
Battery Pack capacity and configuration |
43.008kWh/1P48S | |
|
Battery capacity/number of packs |
215kWh/5 | |
|
Battery voltage range |
672V~864V | |
|
Charge and discharge rate |
≤0.5C | |
|
Discharge depth |
95%DOD | |
|
Cycles |
＞8000 | |
|
Numberof temperature checks |
160 | |
| PV Side |
Maximum input power |
100kW |
|
Maximum input current |
148A |
|
|
Voltage range |
672V~864V |
|
| AC Side |
AC rated power |
100kW |
|
AC maximum power |
110kW |
|
|
AC current distortion rate |
||
|
DC component |
||
|
System voltage format |
400V |
|
|
Grid voltage range |
360VAC~440VAC |
|
|
Power factor |
-1~1 | |
|
Rated grid frequency |
50Hz/60Hz | |
| System Parameters |
Maximum system efficiency |
≥89% |
|
Operating temperature |
-30~55℃(Derating when exceeding 40 degrees Celsius) | |
|
Relative humidity |
0 to 95%RH,no condensation | |
|
Dimensions (LxDxH) |
1050×1300×2250mm(including hanging rings) | |
|
Weight |
2400kg | |
|
Protection level |
IP54 (IP67 for battery) | |
|
Noise |
||
|
Cooling method |
Battery liquid cooling,PCS air cooling |
|
