1400 Bar Industrial Pipe High Pressure Cleaning Machine
TECHNICAL PARAMETER
| Name | Details |
|---|---|
| Model | RLB-85/1500 |
| Inpurt speed | 1480 rpm |
| High pressure pump | Made In China |
| Pump speed | 366 rpm |
| Stock | 120 mm |
| Rate Pressure | 1500 bar / 40000 psi |
| Water flow | 85 L/min |
| Plunger dia. |
30mm |
| Diesel engine | 285kw, Weichai Brand, or Cummins Brand |
application
Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. Which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc.

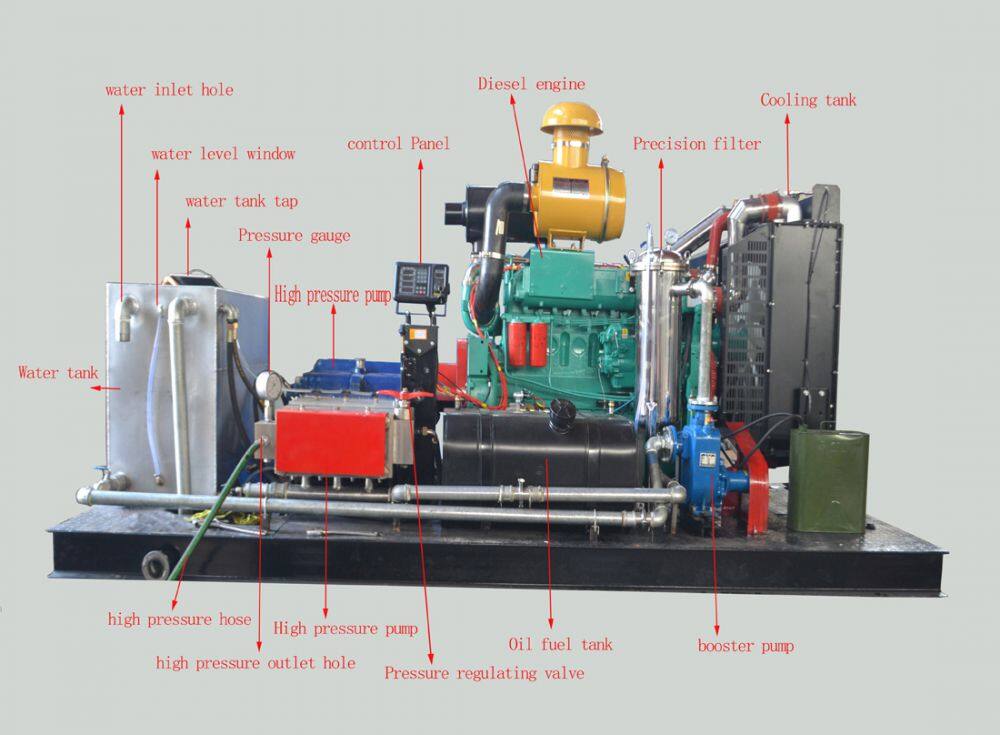

Maine Machine include
| Name | Details | Quantity |
|---|---|---|
| High pressure pump | 1500bar; 50L/min; | 1 set |
| Pressure regulating valve | 0-1500bar can be adjust | 1 pc |
| Safety valve | 1 pc | |
| Pressure gauge | Data 0-1500bar | 1 pc |
| Diesel engine | 183kw Weichai Brand, or Cummins Brand | 1 set |
| Storage Battery | 1 set | |
| Coupling | Connect the electric motor with the pump | 1 set |
| Water tank | Volume 400L | 1 set |
| Ball Valve | Control the nozzle working | 1 set |
| Y-type Filter | Water inlet filter | 1 set |
| Booster pump | For Precision filter |
1 set |
| Fuel tank | Volume 200L | 1 set |
| Movable chassis | With 4 small wheels, easy to be moved | 1 set |

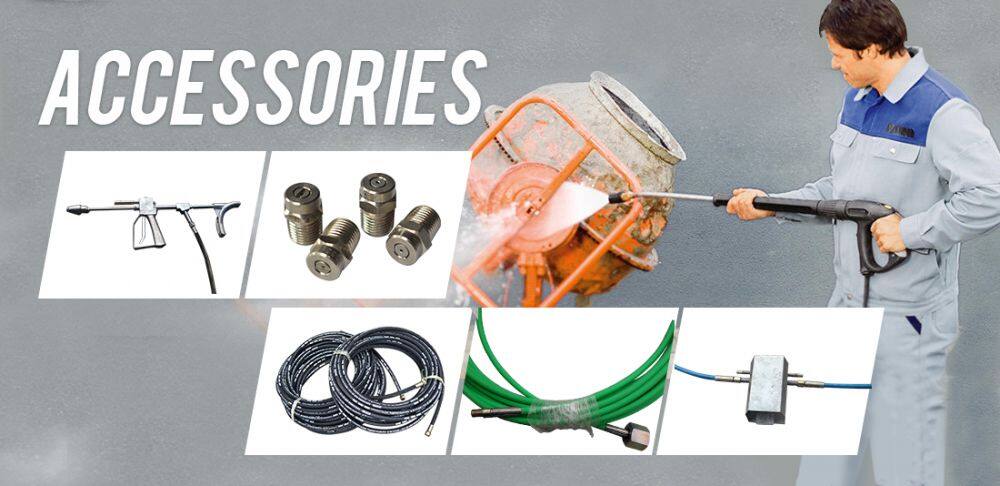

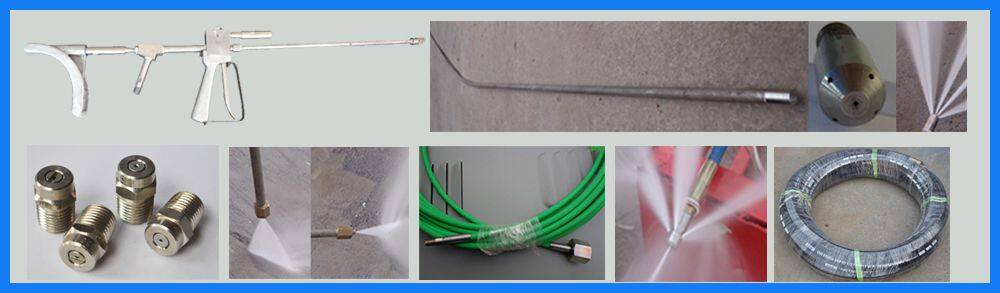

Accessories
| Name | Details |
|---|---|
| High pressure hose | Bear Pressure 150Mpa |
| Water spray gun | Stainless steel material |
| Fan-shaped nozzle | Connect with the water spray gun |
| Cylinder-shaped nozzle | Connect with the water spray gun |
| Flexible lance | For industrial pipe cleaning |
| Flexible lance nozzle | Multi hole, Connect the flexible lance, for small pipe cleaning |
| Stainless steel lance | For industrial pipe cleaning |
| ss lance nozzle | Multi hole, for industrial small pipe cleaning |
| Foot control valve | Stainless steel material, control the lance |
| Spare Part |
