RLB 500bar 22kw High Pressure Wet Sand Blaster

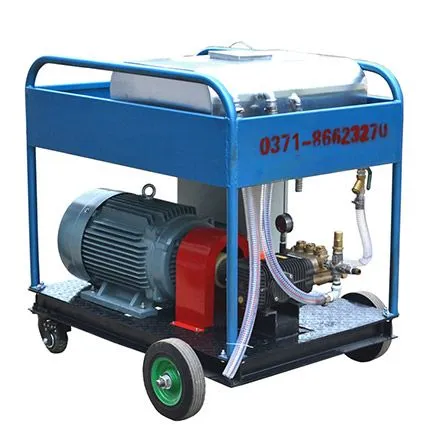

RLB 500bar 22kw High Pressure Wet Sand Blaster photo-1

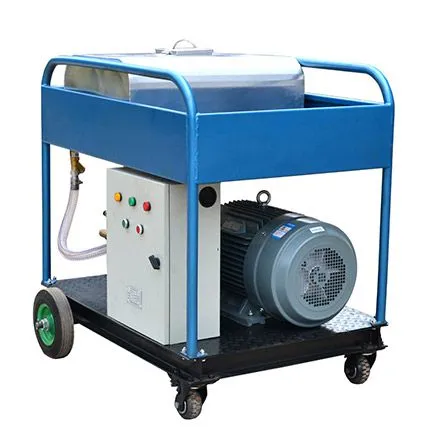

RLB 500bar 22kw High Pressure Wet Sand Blaster photo-2
US$ 9000 ≥1 Set
Key Specifications
Get Latest Price
Type:
Cold Water High Pressure Cleaner
Certification:
CE
Warranty:
One year
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Type Cold Water High Pressure Cleaner
Certification CE
Warranty One year
Drive Diesel
Application Industrial
Condition New
After-sales Service Yes
Operation Type Fixed
Customized Customized
Nozzle Type Fan-Shaped Nozzle
Transport Package wooden case
Trademark RELIABLE
Origin CHINA
Name Details
Model RLB-23/500
Speed 1480 rpm
High pressure pump Italy COMET Brand;
Rate Pressure 500 bar / 7200 psi
Water flow 23 L/min
Plunger dia.
18mm
Electric power 22kw, 3Phase, 380v/50Hz; IP55


application

Wet sand blasting machine is used for shipyard rust remove, paint remove, industrial cleaning, iron rust removal, descaling furnace removal, concrete surface roughing, etc.

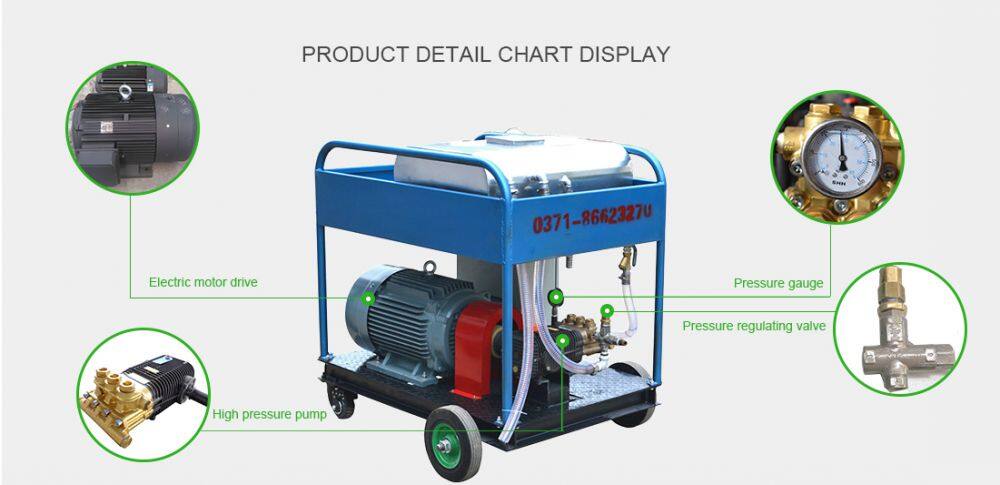

Maine Machine include

Name Details

Pressure regulating valve

0-500bar can be adjust


High pressure pump

500bar; 23 L/min; Italy COMET Brand


Pressure gauge

Data 0-500bar


Electric power

22kw, 3Phase, 380v/50Hz; IP55


Electric cabinet

Match the electric motor


Coupling

Connect the electric motor with the pump


Water tank

Volume 200L


Ball Valve

Control the nozzle working


Y-type Filter

Water inlet filter


Movable chassis

With 4 small wheels, easy to be moved

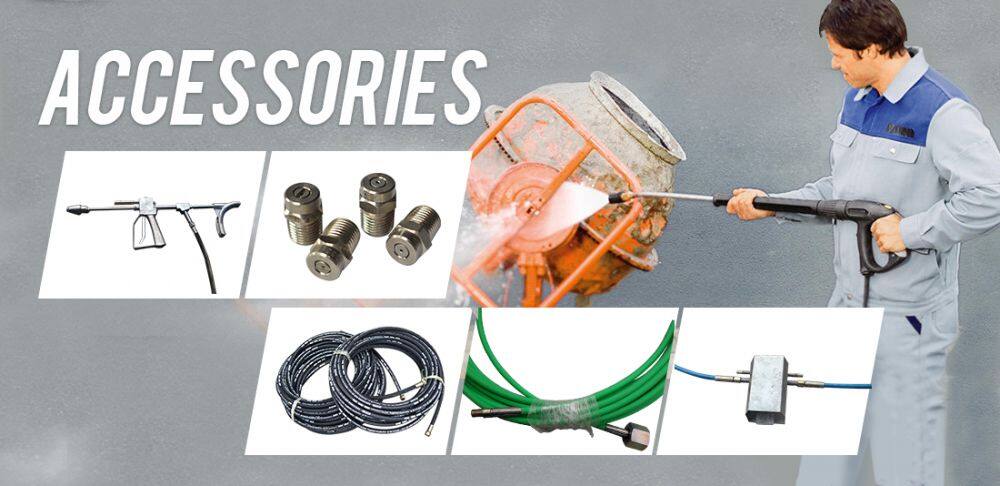

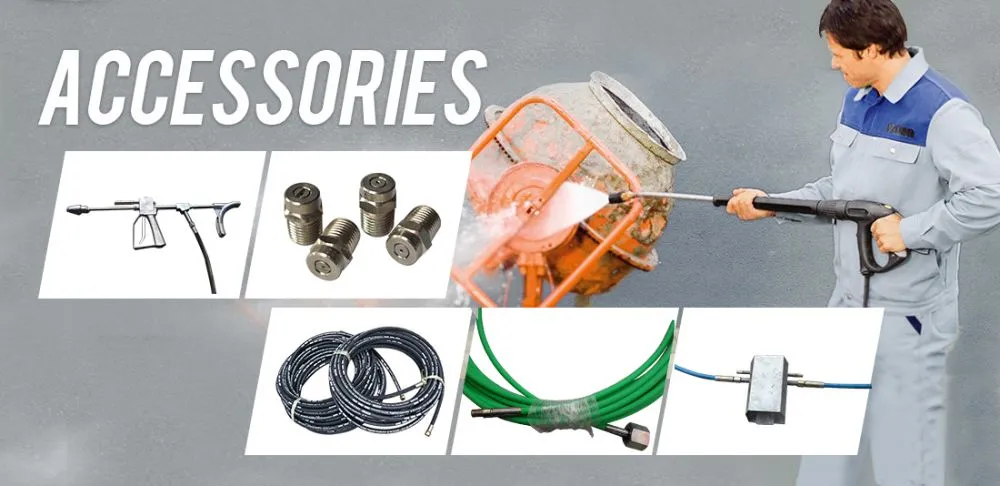

Accessories

Name Details
High pressure hose DN10; Bear Pressure 70Mpa
Water spray gun Italy PA Brand, 560Bar Pressure
Fan-shaped nozzle Connect with the water spray gun
Cylinder-shaped nozzle Connect with the water spray gun
Wet sand spray nozzle for rust paint remove
Sand inlet hose
Sand Tank Volume 150L
Spare Part


110kw-50-1000-05

Packing and shipping





2
