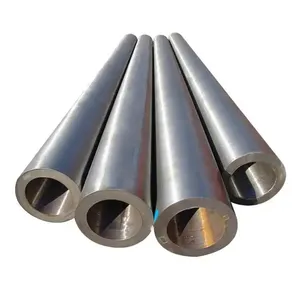

Excellent Resistance Corrosion SUS304 08X18h10 10X17h 12X18h9t Stainless Steel Pipe Seamless Heat Treatment Piping for Pot Kettle
US$ 800 - 1500
MOQ: 1 Ton
Key Specifications
Get Latest Price
Certification:
ISO
Shape:
Round
Technique:
Cold Rolled
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
Heat Exchanger Tube Manufacturer 304 316 Stainless Steel Seamless PipeUS$ 800 - 1100MOQ: 1 Ton -
Cold / Hot Rolled Seamless Stainless Steel Pipe Ss Steel Tube TP304/304L 316/316L Stainless Steel PipeUS$ 800 - 1100MOQ: 1 Ton
-
China High Precision 304/316 Stainless Steel Seamless Pipe Cold Rolled Tube in ISO ASTM GB En AISI JIS DINUS$ 800 - 1100MOQ: 1 Ton
-
Factory Direct Delivery of 304 316 321 2205 2507 Seamless Stainless Steel Rough TubesUS$ 800 - 1100MOQ: 1 Ton
-
Good Service 300 Series Thick More Than 2mm China Ss 304 316 321 Welded/Seamless Pipe Stainless Steel Tube SupplierUS$ 800 - 1500MOQ: 1 Ton
Certification
ISO
Shape
Round
Technique
Cold Rolled
Model NO.
201, 303Cu, 304, 304L, 316, 316L, 310S,
Production Process
welding/ polishing/inside bead removing
Specification
Customized
Standard |
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296 |
|
Material |
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, 202 |
|
Surface |
Polishing,annealing,pickling,bright |
|
Type |
hot rolled and cold rolled |
|
stainless steel round pipe/tube | ||
Size |
Wall thickness |
1mm-150mm(SCH10-XXS) |
Outer diameter |
6mm-2500mm (3/8"-100") |
|
Delivery time |
Prompt delivery or as the order quantity. |
|
Package |
Standard export seaworthy package,or as required. |
|
Application |
Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required. |
|
Contact |
If you have any questions,please feel free to contact me. |
|
Container size |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
|
Chemical composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0- |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 - |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
ASTM&UNS Grade
| No | Grade(EN) | Grade | C | N | Cr | Ni | Mo | Others |
| (ASTM/UNS) | ||||||||
| 1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
| 2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
| 3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
| 4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
| 5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
| 6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
| 7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
| 8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
| 9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
| 10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
| 11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
| 12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
| 13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
| 14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
Mechanical Performance
| Steel grade | ASTM | Mechinical Spefication | ||
| T.S. Mpa | Y.S.(Mpa) | A5 | ||
| 201 | 201 | ≥520 | ≥275 | ≥40 |
| 1Cr17Ni7 | ≥520 | ≥205 | ≥40 | |
| 301 | 301 | ≥520 | ≥205 | ≥40 |
| 1Cr18Ni9 | ≥520 | ≥205 | ≥40 | |
| 0Cr18Ni9 | ≥520 | ≥205 | ≥40 | |
| 304 | 304 | ≥515 | ≥205 | ≥30 |
| 00Cr19Ni10 | ≥480 | ≥175 | ≥40 | |
| 304L | 304L | ≥485 | ≥170 | ≥30 |
| 309S | 309S | ≥520 | ≥205 | ≥40 |
| 0Cr25Ni20 | ≥520 | ≥205 | ≥40 | |
| 310S | 310S | ≥520 | ≥205 | ≥40 |
| 0Cr17Ni12Mo2 | ≥520 | ≥205 | ≥40 | |
| 316 | 316 | ≥515 | ≥205 | ≥30 |
| 00Cr17Ni14Mo2 | ≥480 | ≥175 | ≥40 | |
| 316L | 316L | ≥485 | ≥170 | ≥30 |
| 316Ti | 316Ti | ≥515 | ≥205 | ≥30 |
| 0Cr19Ni13Mo3 | ≥520 | ≥205 | ≥40 | |
| 00Cr19Ni13Mo3 | ≥480 | ≥177 | ≥40 | |
| 317L | 317L | ≥480 | ≥176 | ≥40 |
| 0Cr18Ni10Ti | ≥520 | ≥205 | ≥40 | |
| 321 | 321 | ≥515 | ≥205 | ≥30 |
| 409L | ≥360 | ≥175 | ≥25 | |
| 410 | 410 | ≥440 | ≥205 | ≥20 |
| 430 | 430 | ≥450 | ≥205 | ≥22 |
| 444 | 444 | ≥480 | ≥310 | ≥30 |
| 410S | ≥420 | ≥290 | ≥33 | |
| 2205/S31803/F51 | 2205 | ≥450 | ≥620 | ≥15 |
| 2507/S32750/F53 | 2507 | ≥550 | ≥800 | ≥25 |
| 630 | ≥520 | ≥785 | ≥18 | |
| 904L/N08904 | ≥490 | ≥216 | ≥35 | |
Company Profile
Since 2018, Zhongzheng Stainless Steel has actively cooperated with many domestic steel mills. Zhongzheng Stainless Steel regularly exchange steel technology with these mills and make progress from this. ln the process of communicating with customers, we carefully listen to customers' requirements and produce steel products as customers' demands. Under necessary circumstances,Zhongzheng Stainless Steel is willing to help customers find suitable steel mill to produce some special products to save time and cost for customers because we have the reliable resources of still mills to prevent you to be cheated.
