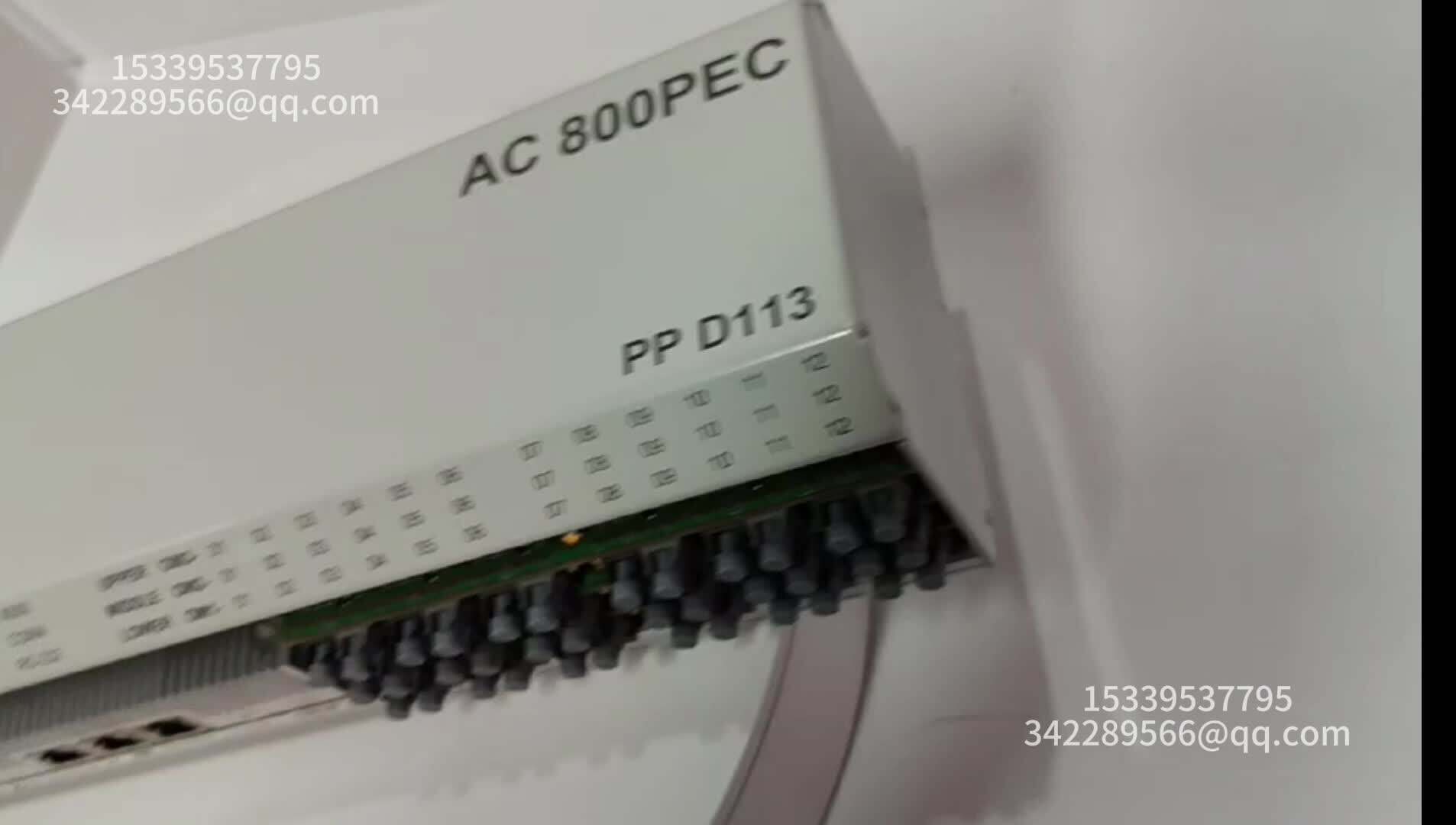

ABB 3BHE023784R1023 Controller Module

Functional Features

Technical Parameters

Common Faults, Possible Causes, and Solutions for ABB 3BHR023784R1023:

• Possible Causes: Poor communication cable connections, incorrect communication parameter settings, electromagnetic interference, damaged communication interfaces.

• Solutions: Check communication cable connections, confirm communication parameters, shield communication cables, and replace communication interfaces or modules.

• Possible Causes: External power supply failures, damaged power modules, incorrect power wiring.

• Solutions: Check the external power supply, replace the power module, and inspect power wiring.

• Possible Causes: Corrupted program files, memory card failures, outdated firmware versions.

• Solutions: Redownload the program, check or replace the memory card, and upgrade the module's firmware.

• Possible Causes: Aging of electronic components, external shocks or vibrations, excessively high ambient temperature.

• Solutions: Replace damaged electronic components, reinforce the module against vibration, and improve the module's heat dissipation conditions.

Input/Output Signal Types of ABB 3BHR023784R1023 Module

1. Digital Input (DI)

• Signal Types:

• DC: 24V DC dry or wet contact signals.

• AC: 110V/230V AC signals (supported by some models).

• Function: Detects switch states (e.g., buttons, limit switches, relay contacts).

• Typical Parameters:

• Input impedance: High impedance (anti-interference design).

• Filter time: Configurable (e.g., 0.1ms–20ms, anti-noise design)

2. Digital Output (DO)

• Signal Types:

• Relay output: Supports AC/DC loads, with contact ratings typically 2A/250V AC or 1A/30V DC.

• Transistor output (NPN/PNP): Supports only DC loads, fast response (e.g., 0.1ms), current approx. 0.5–2A.

• Thyristor output (SSR): Supports AC loads, contactless, suitable for high-frequency switching scenarios.

• Function: Controls devices such as contactors, solenoid valves, and indicator lights

3. Analog Input (AI)

• Signal Types:

• Current signals: 4–20mA, 0–20mA (common, strong anti-interference).

• Voltage signals: 0–10V, ±10V, 0–5V, etc.

• Resistance signals: E.g., Pt100, Pt1000 thermistors (for temperature measurement).

• Thermocouple signals: E.g., K, J, T type thermocouples (with built-in cold junction compensation).

• Function: Acquires continuously varying physical quantities such as temperature, pressure, and flow rate.

• Typical Parameters:

• Resolution: 12-bit, 16-bit, or higher (accuracy depends on the model).

• Input range: Configurable via hardware or software

4. Analog Output (AO)

• Signal Types:

• Current signals: 4–20mA, 0–20mA.

• Voltage signals: 0–10V, ±10V.

• Function: Outputs continuous signals to control actuators such as frequency converters and control valves.

• Typical Parameters:

• Output accuracy: ±0.1%–±0.5% FS (full scale).

• Load capacity: Load resistance ≤500Ω for current output, ≥10kΩ for voltage output

5. Pulse Input/Output (Pulse I/O)

• Signal Types:

• High-speed pulse input: For counting, encoder signals (e.g., AB phase quadrature pulses, frequency up to 100kHz or higher).

• Pulse output: For stepper motor and servo system control (e.g., PWM signals, pulse train output).

• Function: Motion control, speed measurement, position feedback, etc

6. Communication Interfaces (non-electrical signals, but involve data interaction)

• Types:

• Serial communication: RS232, RS485 (supporting Modbus RTU, ASCII, etc.).

• Ethernet: Profinet, EtherNet/IP, Modbus TCP, etc.

• Fieldbus: Profibus DP, CANopen, etc.

• Function: Exchanges data with host computers, other modules, or intelligent devices.
