1.4Ghz HF Wireless Bridge Ethernet Radio Transceiver for IP Camera, PLC,Unmanned Vehicle
US$ 780 - 820
/ Piece
2 Pieces(Min. Order)
- T/T PayPal
You May Like
-
Battery Powered Wireless Temperature Humidity Sensor
-
Long Range Wireless Temperature and Humidity Sensors 433Mhz 868mhz 915mhz
-
Wireless sensor Remote Temperature Humidity Monitoring of Warehouses Museums Archives
-
wireless rs232&rs485 modbus uhf control radio modem 450mhz 470mhz rf transceiver module 433mhz fsk transmitters enclosur
-
433Mhz 450mhz Rx Tx 470mhz frequency programming 2W radio modem wireless data transmission
-
420Mhz-480Mhz Vhf Transmitter Module TTL/rs232&rs485 RF Transceiver Module 3km-5km Radio Modem SMA Connector
Product Description
Welcome to our store!Please feel free to contact Mrs.Sarah Yuan: Whatsapp +86 18820739215/sarah@thingsend.com
Product Description
XZ-DT68-L is a multifunctional wireless data transmission radio integrating Ethernet, CAN and RS-485.The products adopt key technologies such as OFDM (Orthogonal Frequency Division Multiplexing) and MIMO (Multi-Input & Multi-Output) to effectively reduce system delay and improve system transmission capability.It has the characteristics of long transmission distance, large data throughput and strong anti-interference.
It enables non-line-of-sight (NLOS) wireless high-speed data transmission in real time.Supports PTP(point-to-point) and PTMP(point-to-multipoint) networking.Real-time transmission up to 30Mbps，wireless bandwidth and signal strength adaptive.
It adopts efficient channel coding and decoding technology,ensure system security.It has strong resistance to multi-path interference,ensures high-speed mobile communication.
It enables non-line-of-sight (NLOS) wireless high-speed data transmission in real time.Supports PTP(point-to-point) and PTMP(point-to-multipoint) networking.Real-time transmission up to 30Mbps，wireless bandwidth and signal strength adaptive.
It adopts efficient channel coding and decoding technology,ensure system security.It has strong resistance to multi-path interference,ensures high-speed mobile communication.
Products Features
♦Support 2 100M LAN,CAN,RS485 ;
♦Support timely high-speed transmission of up to 30Mbps
♦Support transparent point to point& point to multipoint network technique
♦Support high-speed mobile signals communication
♦Provide super network self-adaptive function,no need to configure
♦TDD-COFDM technology,with fast-moving,ultra-wideband, and transparent transmission.
♦Strong anti-multipath interference ability
♦Support ZUC,snow3g,AES encryption
♦Support timely high-speed transmission of up to 30Mbps
♦Support transparent point to point& point to multipoint network technique
♦Support high-speed mobile signals communication
♦Provide super network self-adaptive function,no need to configure
♦TDD-COFDM technology,with fast-moving,ultra-wideband, and transparent transmission.
♦Strong anti-multipath interference ability
♦Support ZUC,snow3g,AES encryption

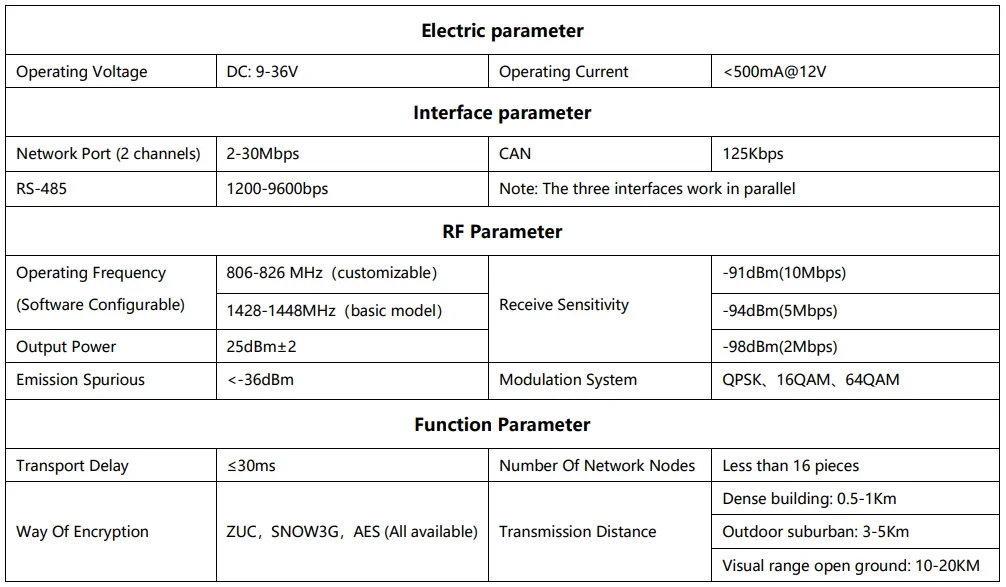

Technical Parameters

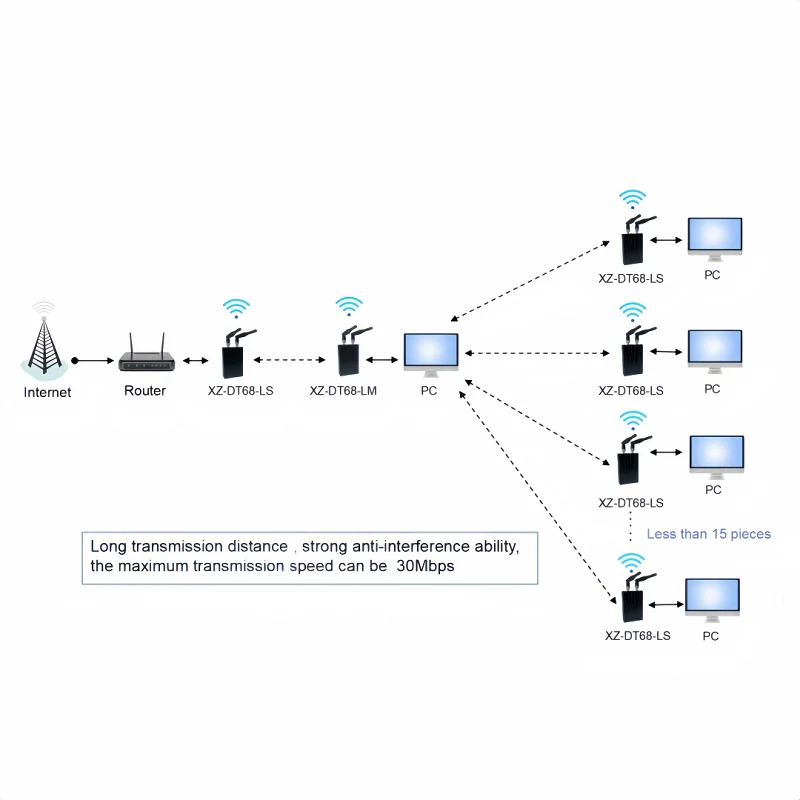

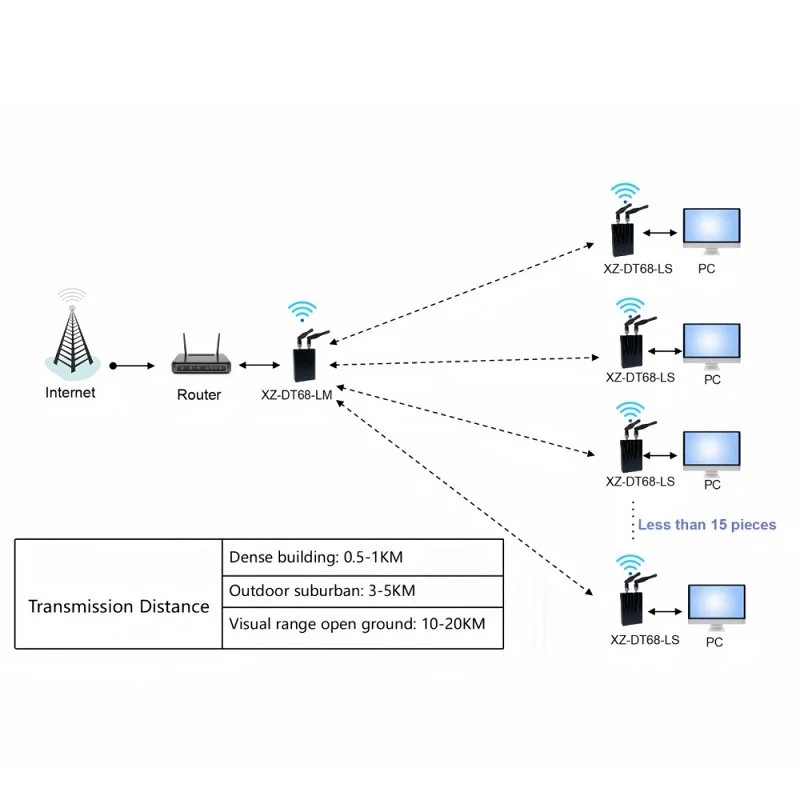

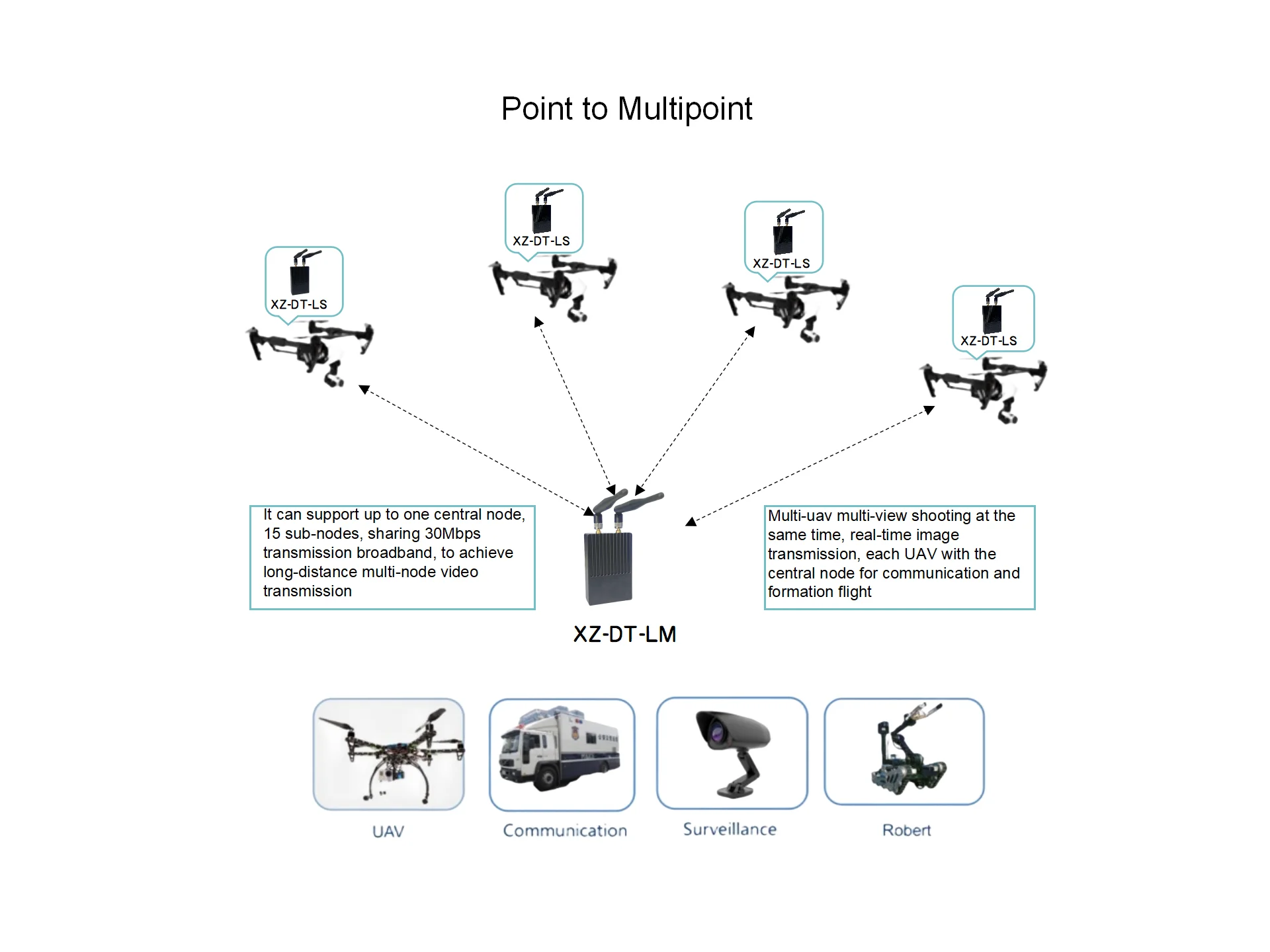

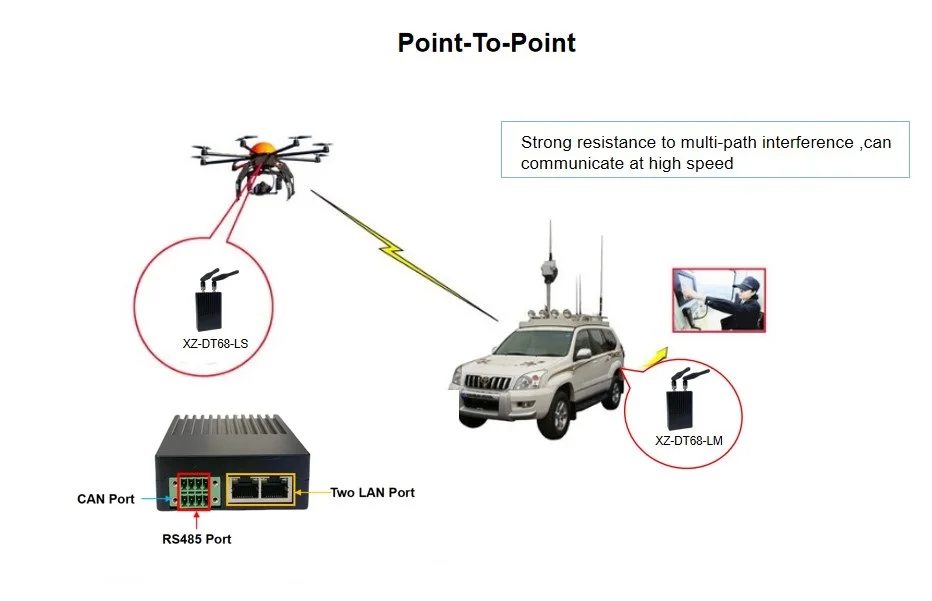

Networking Mode

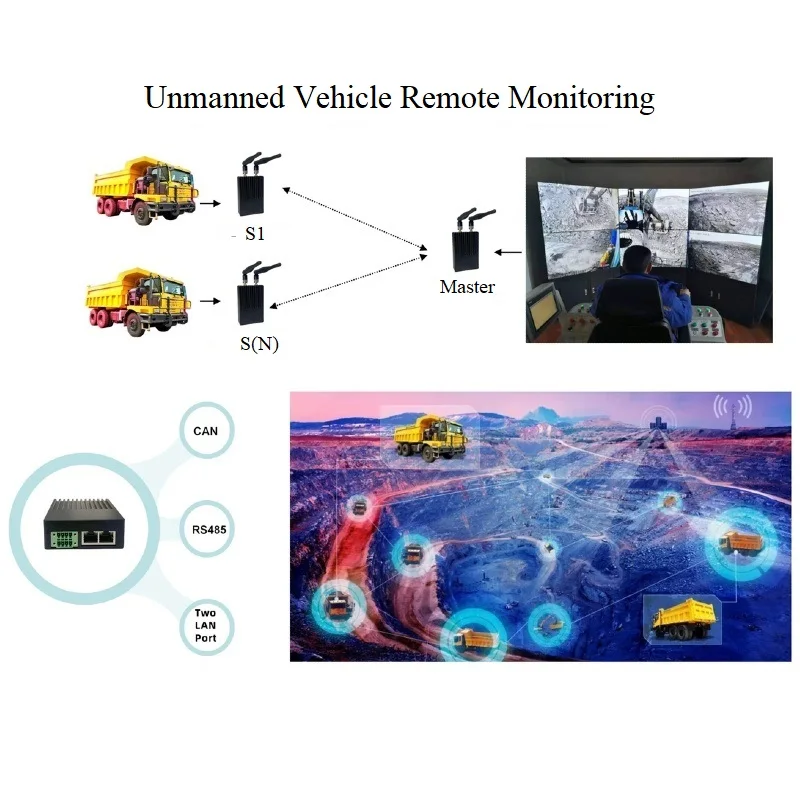

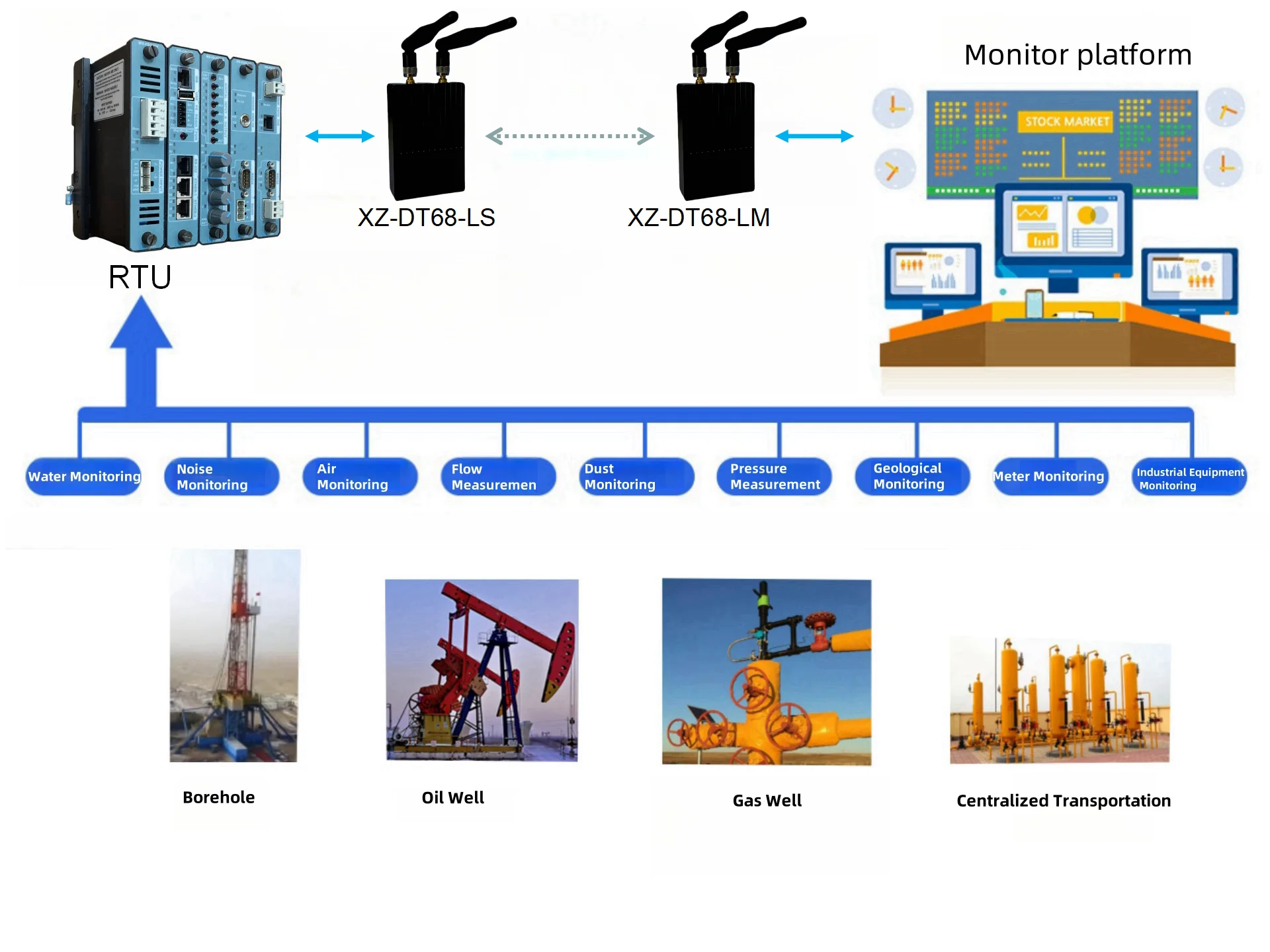

Application
