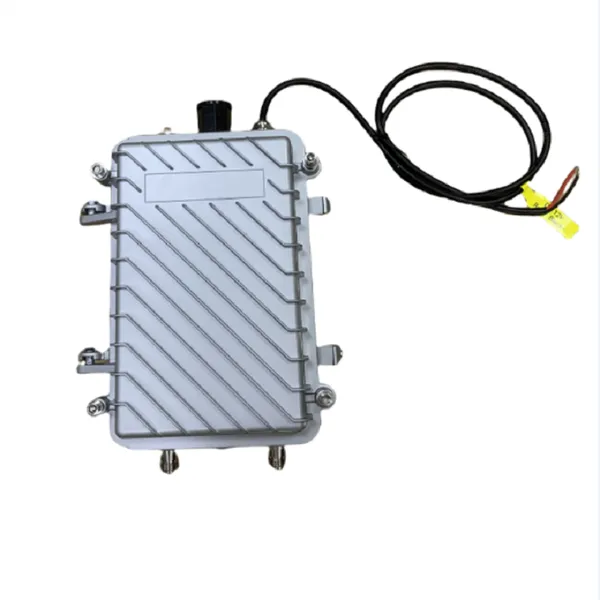

Thingsend DT60-P 10Watts Industrial Ethernet Radio Modem NLOS Wireless Communication Ethernet Transceiver for Automation Monitoring and Control

FOB Price

US$ 1860

≥2 Pieces

Payment TermsT/T PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Welcome to our store!Please feel free to contact Mrs.Sarah Yuan: Whatsapp +86 18820739215/sarah@thingsend.com

Product Description

XZ-DT60-P is is a multifunctional high power wireless ethernet transceiver,integrated with rs485 CAN and Ethernet port. It can also be made with IP65 waterproof housing for outdoor use.It adopts key technologies such as OFDM (Orthogonal Frequency Division Multiplexing) and MIMO (Multi-Input & Multi-Output) to effectively reduce system delay and improve system transmission capability. It has the characteristics of long transmission distance, large data throughput and strong anti-interference.
The product can do non-line-of-sight (NLOS) wireless high-speed data transmission in real time, and support PTP(point-to-point) and PTMP(point-to-multipoint) networking. Its real-time transmission can be up to 30Mbps,wireless bandwidth and signal strength is self-adaptive.
The product adopts efficient channel coding and decoding technology to ensure system security. It has strong resistance to multi-path interference, ensuring high-speed mobile communication

Products Features

♦With 2 100M LAN ,RS485,CAN ports

♦37dBm to 40dBm software configurable

♦Support long distance NLOS wireless transmission
♦Maximum transmission bandwidth is 30Mbps

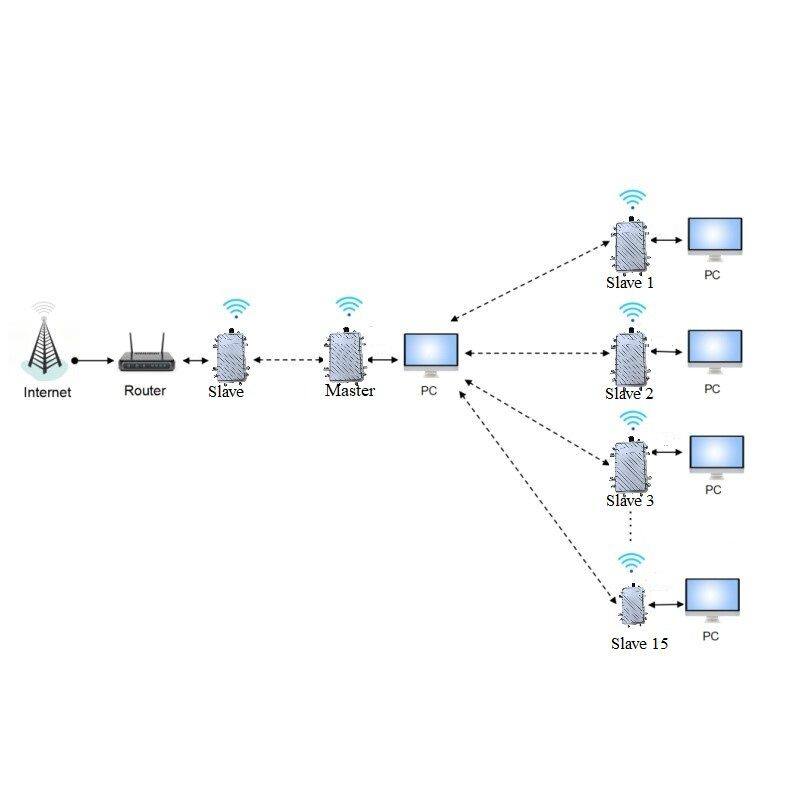

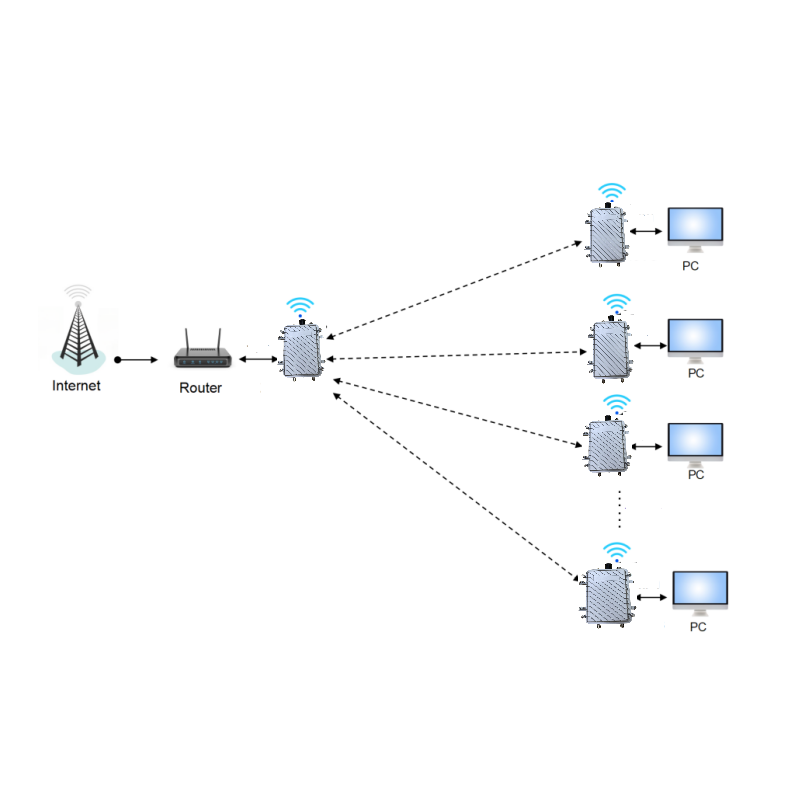

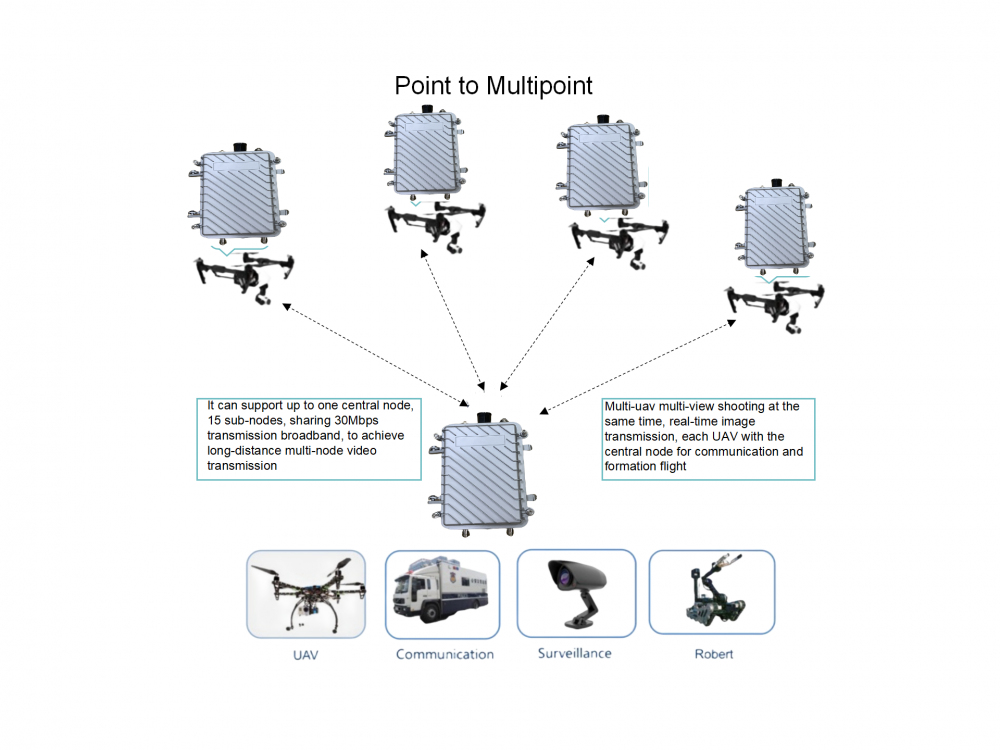

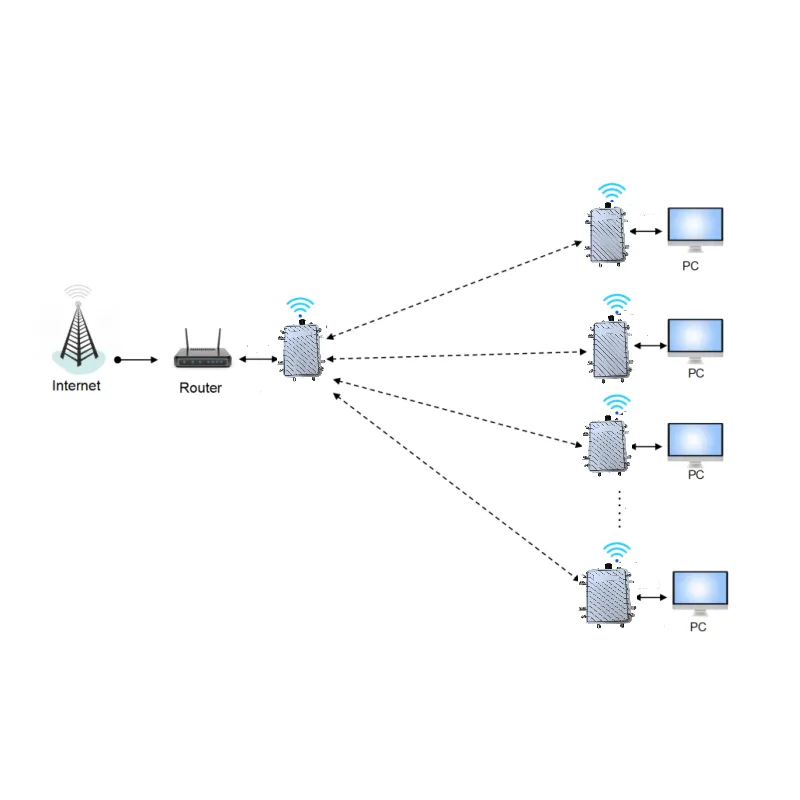

♦Support transparent point to point& point to multipoint network technique
♦Support high-speed mobile signals communication
♦Provide super network self-adaptive function,no need to configure
♦TDD-COFDM technology,with fast-moving,ultra-wideband, and transparent transmission.
♦Strong anti-multipath interference ability
♦Support ZUC,snow3g,AES encryption

Technical Parameters

Electric parameter
Operating Voltage	DC12-24v	Operating Current	<2000mA@12V (Peak current)
Interface Parameter
Ethernet (2 channels)	2-30Mbps	CAN	125Kbps
RS-485	1200-9600bps
RF Parameter
Operating Frequency (Software Configurable)	806-826 MHz（customizable)	Receive Sensitivity	-91dBm(10Mbps)
Operating Frequency (Software Configurable)	1428-1448MHz（standard）		-94dBm(5Mbps)
Emission Spurious	<-36dBm		-98dBm(2Mbps)
Output Power	37dBm to 40dBm	Modulation System	QPSK、16QAM、64QAM
Function Parameter
Transmission Delay	≤30ms	Number Of Network Nodes	at most 15pcs
Way Of Encryption	ZUC，SNOW3G，AES (All available)	Transmission Distance	Dense building: 1.5-3.5KM
			Outdoor suburban: 6-8KM
			Visual range open ground: 10-20KM
