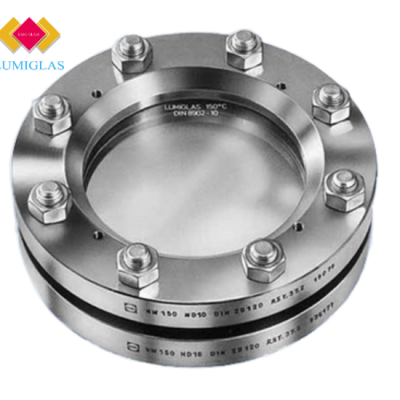

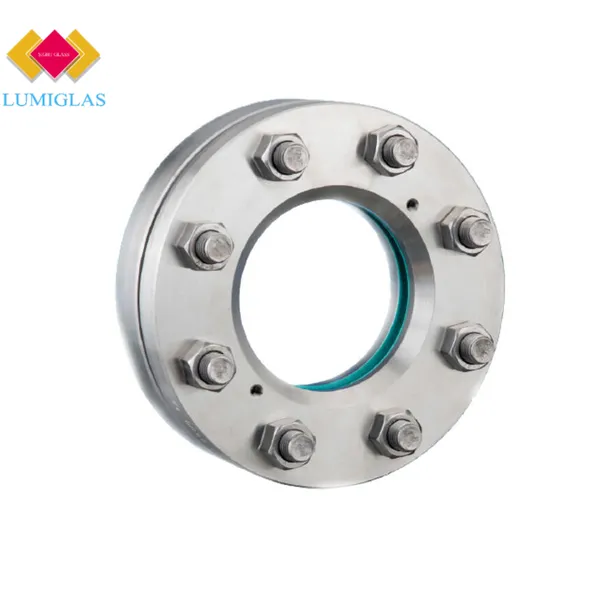

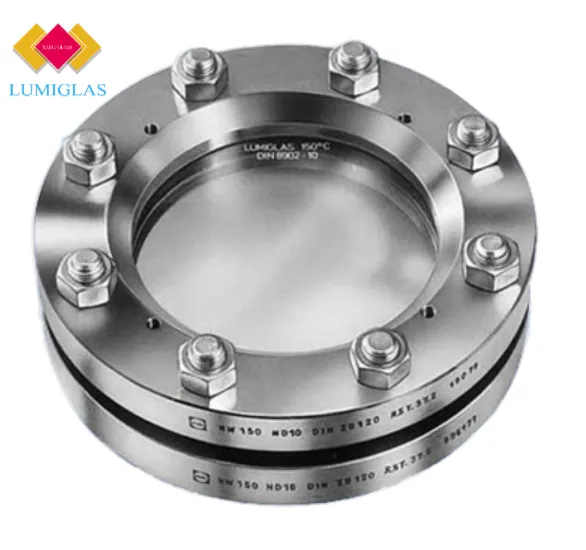

DIN28120 Vessel Sight Glass — Circular Weld-On Pressure Vessel Sight Glass
DIN 28120 vessel sight glass fittings are circular flanged sight-glass assemblies designed to be welded into or onto vessel walls for safe, distortion-free viewing of vessel internals. They consist of a weld-on base/block, a cover (or cover flange), a sight-glass disc positioned between gaskets and bolted together to create a leak-tight, pressure-rated viewing port. These fittings are widely used for pressure vessels, stirred tanks, separators and pipeline inspection points.
Key Benefits
Standards-based design — manufactured to the DIN 28120 dimensional and assembly guidelines (sizes commonly cover DN 50 → DN 200).
Pressure & temperature capable — typical pressure classes for DN sizes are PN10/16 (higher ratings on request); typical working temperatures depend on glass type (e.g., soda-lime vs borosilicate). Ratings up to ~10–16 bar, depending on size and glass selection.
Optical clarity & distortion control — flange/seat geometry and specified glass thicknesses ensure the sight disc remains distortion-free when correctly welded and assembled.
Flexible material & accessory options — supports borosilicate (DIN 7080) or soda-lime (DIN 8902) glass discs, stainless or alloy flanges, a range of gasket materials, and options for illumination or explosion-proof light fittings.
Typical Applications
Used in chemical, pharmaceutical, dairy & food, brewery, petrochemical, and process industries, wherever visual inspection of color, clarity, filling/level, or agitation inside a pressure vessel is required.
Typical Technical Specifications
Operating conditions:Pressure resistance: 10bar~16bar; We can customize pressure vessels with a pressure range of 1.6~70MPa according to customer needs. The vacuum operating temperature can reach up to 200°C. Borosilicate glass DIN7080 is available for customization, and other higher-grade, high-temperature-resistant glasses can also be provided upon request.
Combination: Used with Lumistar spotlights for explosion-proof and non-explosion-proof areas. Provides matching threaded holes on the flange for securing the spotlight.
Certificate: Additional charges are required for acceptance according to customer requirements, or alternatively, certification can be based on DIN EN 102013.1/3.2
| Item | Part | Material |
|---|---|---|
| 1 | base flange（welding flange） | carbon steel RSt 37-2, stainless steel 1.4571 or other |
| 2.1, 2.2 | fastening bolts | carbon steel 5.6/5 or stainless steel A2 |
| 3.1, 3.2 | gaskets | KLINGERSil C-4400; silicone, PTFE or other |
| 4 | sight glass disc | sodalime glass: high temperature resistant tempered glass DIN8902 borosilicate glass: high temperature resistant tempered glass DIN7080 |
| 5 | cover flange | carbon steel RSt 37-2; stainless steel 1.4541 or other |
| 6 | vesel wall |
| size | 1 | 2 | 3 | 4 | 5 | 6 | |
|---|---|---|---|---|---|---|---|
| Nominal width | DN | 50 | 80 | 100 | 125 | 150 | 200 |
| Pressure resistance (bar) | PN | 10/16 | 10/16 | 10/16 | 10/16 | 10/16 | 10 |
| Viewing diameter | d1 | 80 | 100 | 125 | 150 | 175 | 225 |
| Sight glass disc | d3 | 100 | 125 | 150 | 175 | 200 | 250 |
| s | 15/15 | 15/20 | 20/25 | 20/25 | 25/30 | 30 | |
| Flanges | D | 165 | 200 | 220 | 250 | 285 | 340 |
| K | 125 | 160 | 180 | 210 | 240 | 295 | |
| d6 | 18 | 18 | 18 | 18 | 22 | 22 | |
| h1 | 16/16 | 20/20 | 22/22 | 25/25 | 30/30 | 35 | |
| h2 | 30 | 30 | 30 | 30 | 36 | 36 | |
| Fastening bolts | no. | 4 | 8 | 8 | 8 | 8 | 8 |
| size | M16 | M16 | M16 | M16 | M20 | M20 | |
| Sealing gasket | d1 | 80 | 100 | 125 | 150 | 175 | 225 |
| d7 | 102 | 127 | 152 | 177 | 202 | 252 | |
| Bolt torque | Nm | 28/32 | 20/23 | 26/30 | 32/34 | 47/54 | 63 |
