High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine

Zhengzhou Howann Machinery Co., Ltd.
High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine thumbnail-1
High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine thumbnail-2
High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine thumbnail-3
High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine thumbnail-4
High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine thumbnail-5
High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine photo-1
High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine photo-2

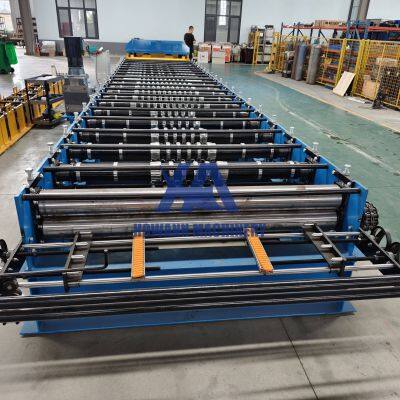

High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine photo-3

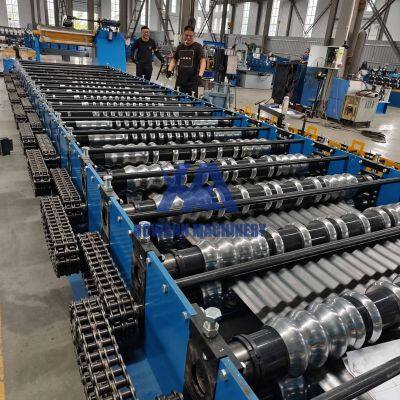

High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine photo-4

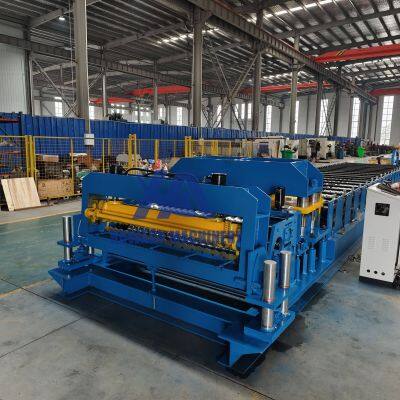

High Quality Full Automatic Steel Silo Granary Corrugated Panel Making Roll Forming Machine photo-5
US$ 35000 1 Piece
US$ 33000 2 Piece
US$ 29800 ≥3 Piece
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
2 years
Usage:
Other, Silo Panel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
60 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE
Warranty 2 years
Usage Other, Silo Panel
After-sales Service 2 years
Customized Customized
Condition New
Tile Type Glazed
Transmission Method Electric
Transport Package standard
Specification as following
Trademark HOWANN
Origin Cangzhou,Hebei,China
Product Details

Steel silo roll forming machine

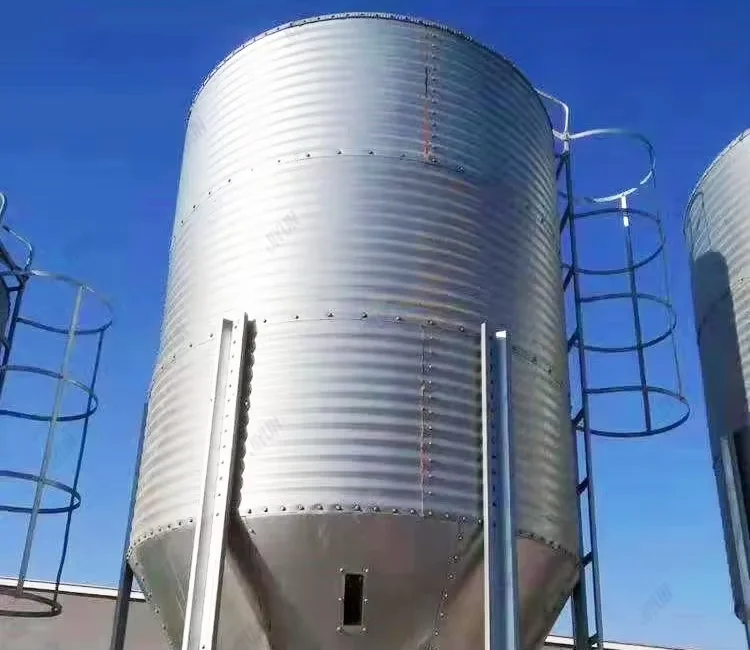

A silo is a structure for storing bulk materials. silos are commonly used for bulk storage of

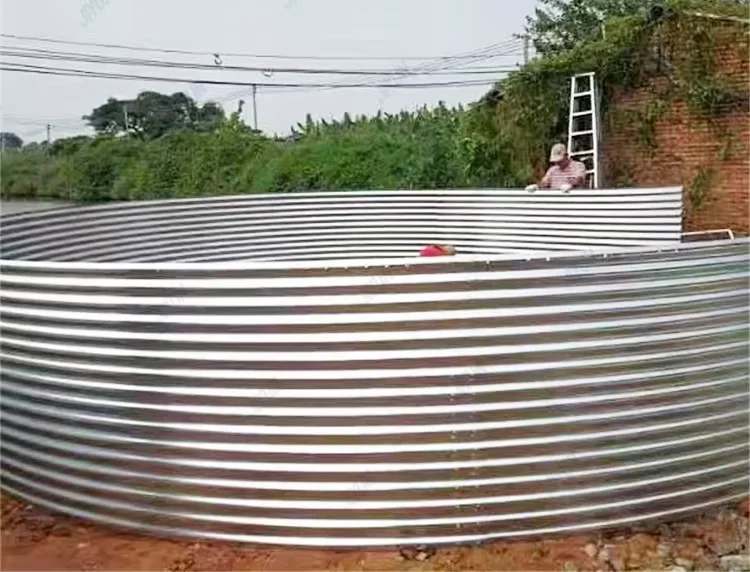

grain, coal, cement, carbon black, wood chips, food products, and sawdust, The steel silo is make of corrugated arc panels and assembled together with strong screws. the steel silo applies to store concrete, coal, mineral powder, grains, etc, Steel Silo Machines include Silo Corrugated Panel Roll Forming Machine, corrugated plate punch press, corrugated plate bender.

Our roll forming machine can also be customized and manufactured according to the customers' drawings.
The Working Flow
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism -----Automatic Shearing Mechanism ----- Products Receiving Tables
Item
Name
Quantity
1
Uncoiling Device
1 set
2
Forming Main Machine
1 set
3
Hydraulic Cutting System
1 set
4
Material Receiving Table
1 set
5
PLC Control System
1 set
6
Supporting Accessories
1 set
Item
Parts
Specification & Description
1.Raw Material
Type
GI / GL /PPGI / PPGL /Customization steel coil
Thickness(mm)
0.5-2
2.Un-coiler Device
Type
Inner contraction range
Max Loading(Tons)
300-800 KG（optional）
Way of working
Manual / Electric / Hydraulic tensioning crank.
Panel Width（mm）
200-650mm(customizable)
Coil Inner diameter
φ480-500mm
Inner adjust range
φ450-550mm
3.Forming Main Machine
Main frame
Material:300H/350H steel Processing:Welding frame
Middle plate
Material : 45#steel
Thickness: 14mm
Processing :laser cutting
Shaft
Material : 45# steel with chrome 0.05mm
Diameter : 70mm
Processing : Precision machining, heat treatment, precision grinding

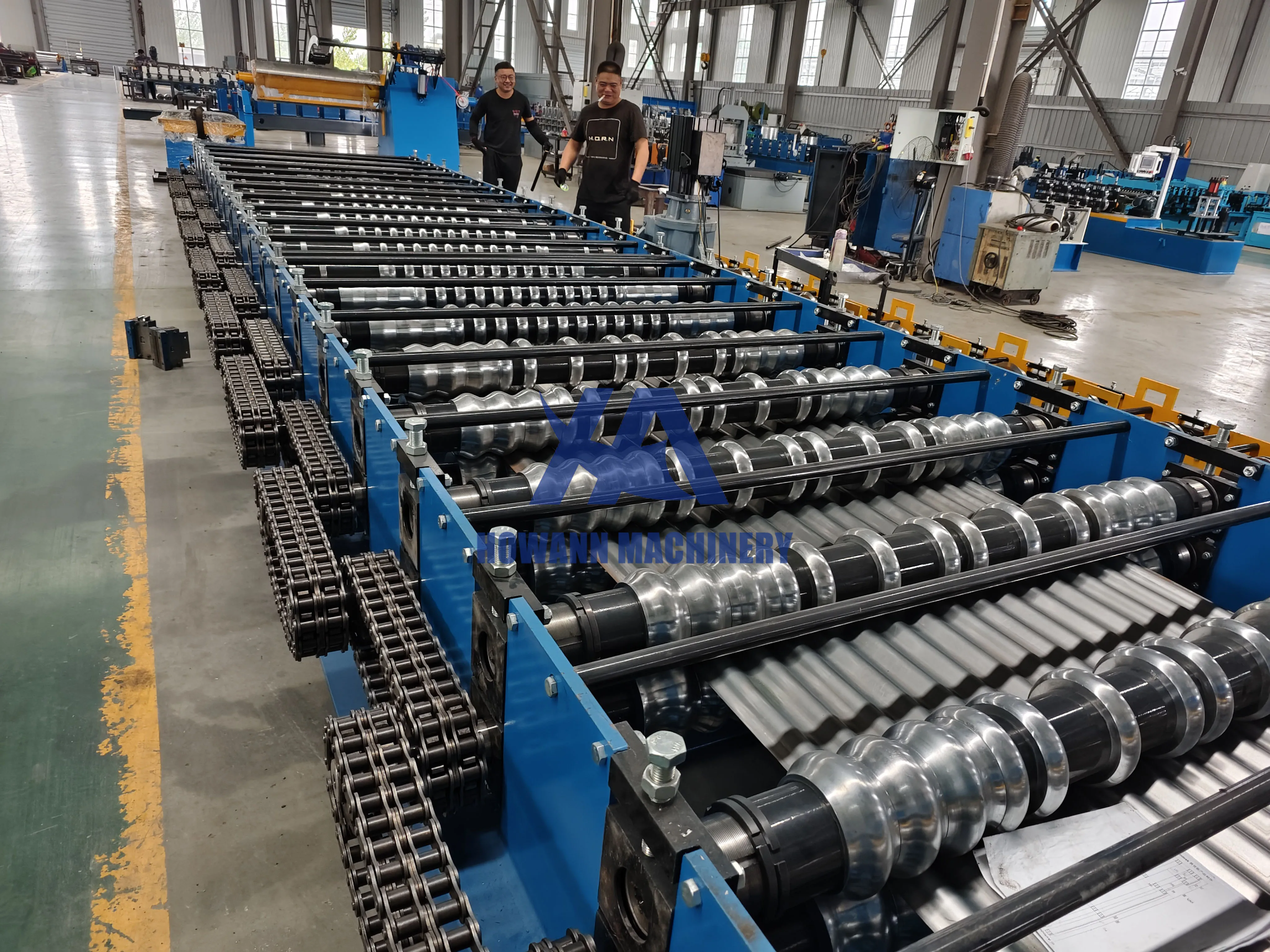

Rollers
Material: 45# steel Chrome Plated
Processing : Quenching, precision turning, polishing treatment
Roller Station
10-16 stations or Customization
Transmission
Specifications:1 inch chain wheel with gear transmission
Processing :Quenching heat treatment
Gear oil:18 # hyperbolic gear oil

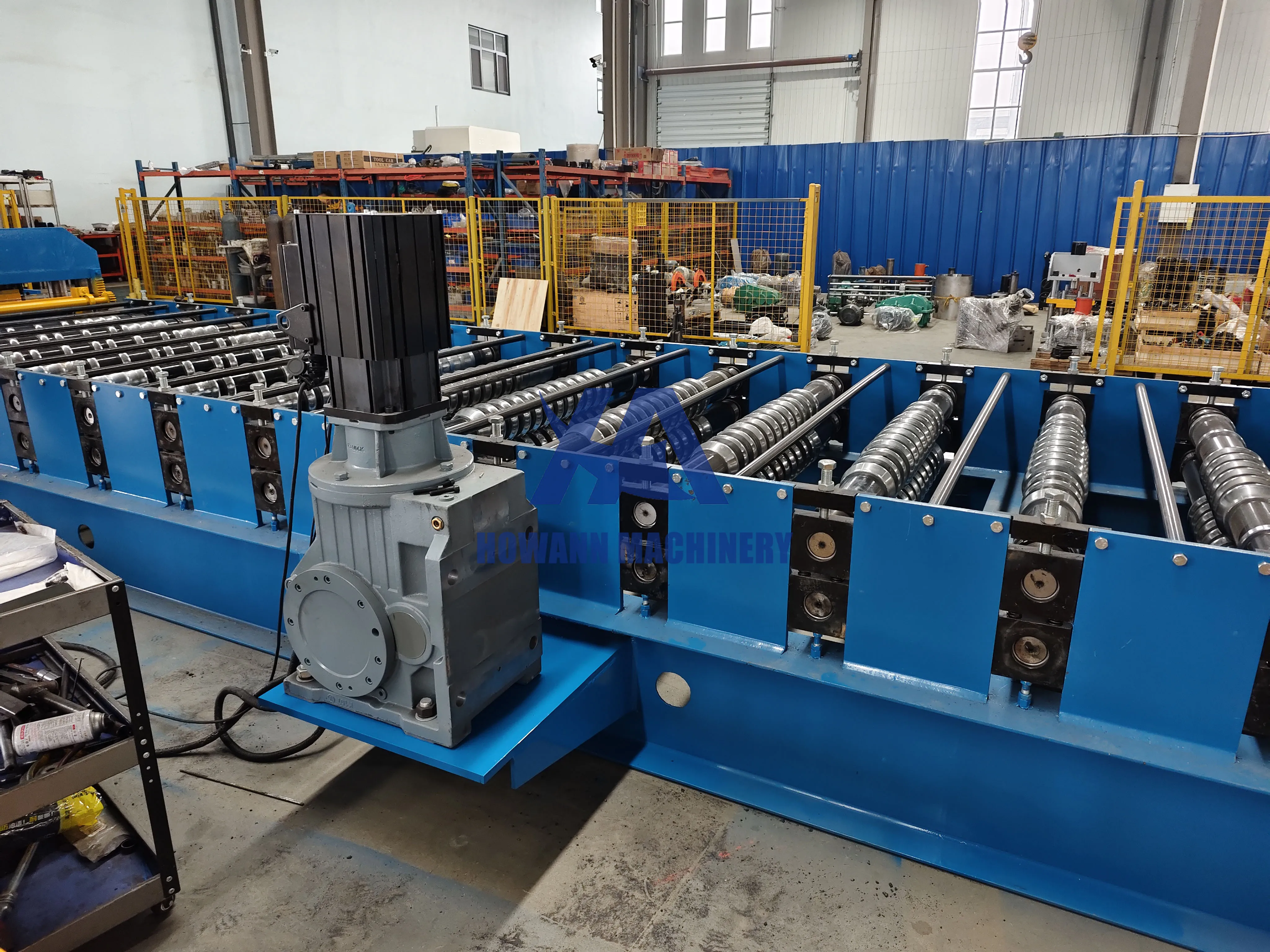

Main Motor
Power:5.5KW
Brand：Lichao(optional)
Reducer: Cycloidal reducer
Protection level:IP55
Explosion-proof level:ExdIICT4
4.Cutting System
Type
Automatic Hydraulic Cutting
Blade material
Cr12MOV heat treatment process
Pump
hydraulic pressure:10-12mpa
Hydraulic oil: 46#
Pump motor for cutter
Power: 4KW
5.Receiving rack
Type
manual / Electric receiving rack
6.PLC Control System
PLC Control System
Plc brand：Delta (optional)
Text control box:Vertical LCD touch screen control box/Swing arm LCD touch screen control box
Language: English / Chinese / Customized
Inverter
Rated power:7.5KW

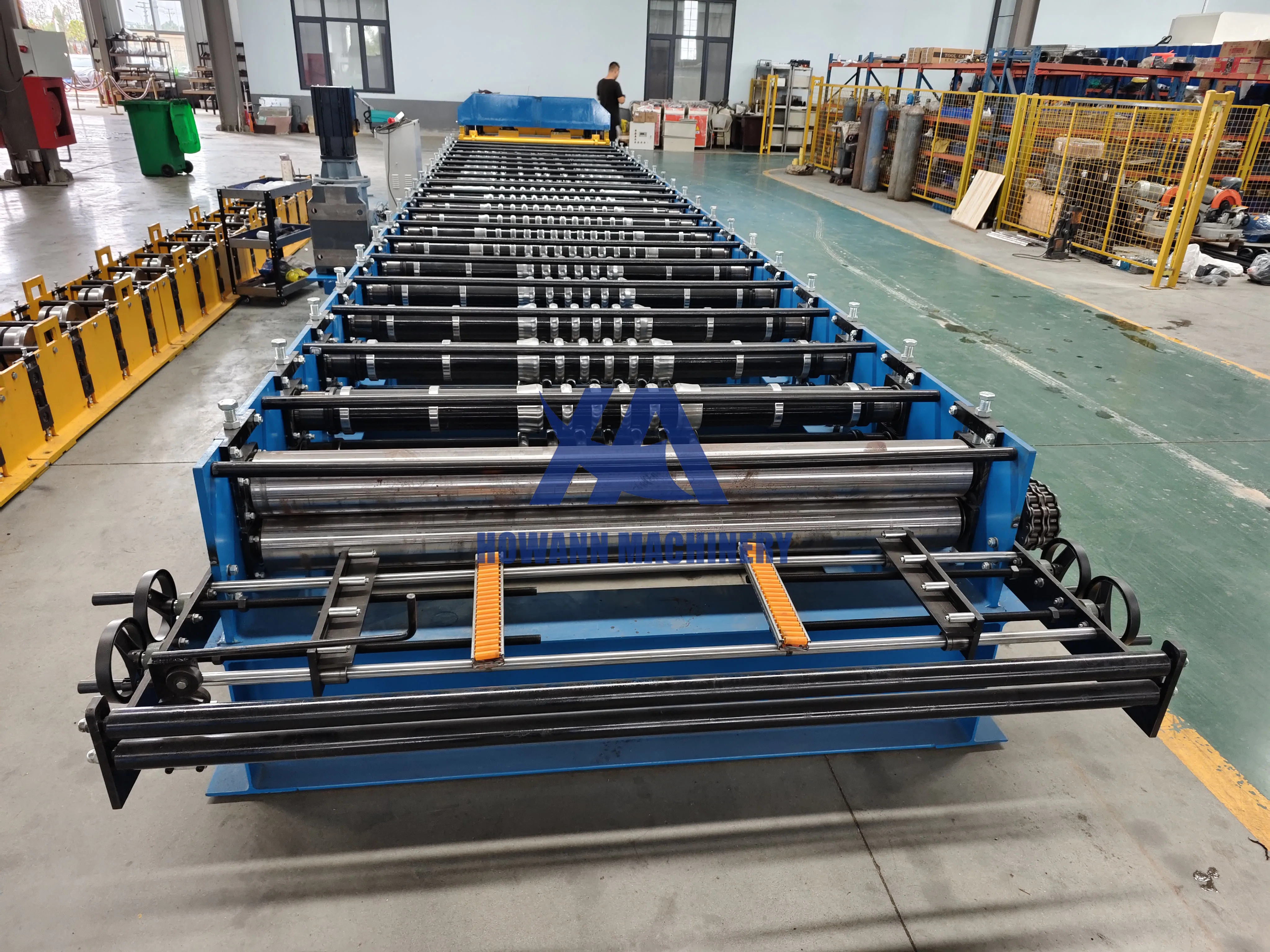

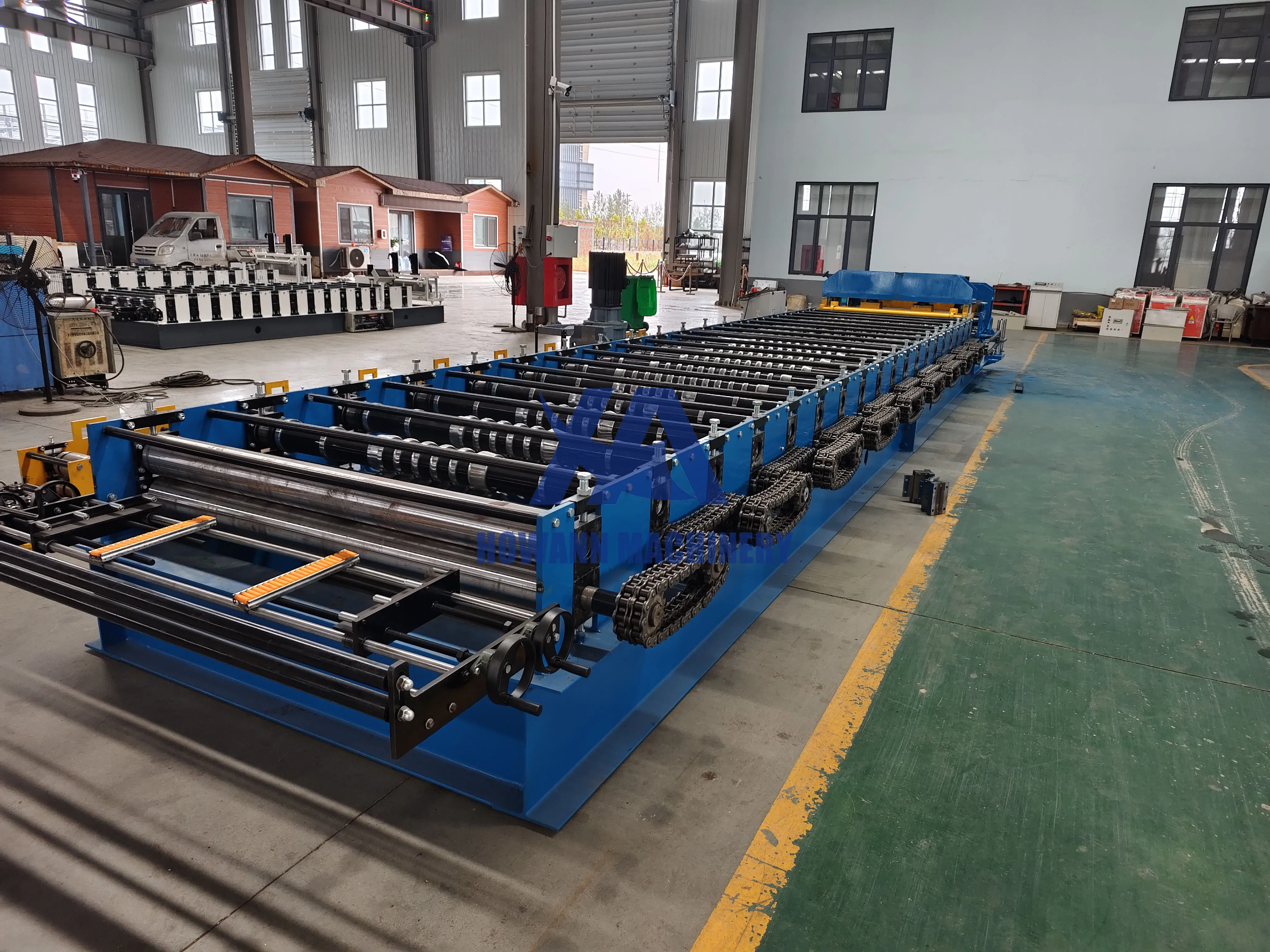

Details Images
Company Profile
Zhengzhou Howann Machinery Co., Ltd. focuses on one-stop service solutions for Metal cold forming machinery. The factory covers an area of 9700 square meters and has 273 employees, including 29 senior engineers and 56 technical personnel. There are total 2 big workshops of Metal processing machinery .Main products: Purlin Forming Machines\gusset plate machine series\Roof/Wall Sheet Forming Machine\Highway Guardrail Roll Forming Machine\Shelf Rack Series Roll Forming Machine\Door and Window Series Roll Forming Machine\Container House Series Cold Roll Forming
Machines\Uncoiler/Leveler/Slitter\Shearing/Bending/Rolling Machine\Metal Embossing Machine\Customized Roll Forming Roofing roll formers etc.
The company has its own professional R&D center and design team, responsible for equipment drawing and continuous innovation to break through technical difficulties, research and development of new equipment; independent finishing department and electronic department are responsible for equipment aluminum and steel structure hardware processing and ultrasonic electronic device development and power distribution; assembly department assembly line assembly equipment. Howann Machinery has always adhered to technological innovation as its leading force, and its R&D team has continuously overcome technical bottlenecks. The technical content of some of its main equipment is far away in the industry.
Why Choose Us
Customer Photos
Shipment & Delivery
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. High quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machines need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. What about the quality control?
A4: All raw materials we use are quality controlled.Workers will take care of every detail when handling production and packaging.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones for free.

Q6. Is the packaging form?
A6: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.

Q7. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 10-20 days.
2) Under standard production, we can deliver the machine within
20-40 days.
3) In the case of customization, we can deliver the machine within 45-60 days.
