Product: 316Ti Stainless Steel Plate, 316 Stainless Steel Plate
Application: In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts
Size:3/16'' Thick ~ 6'' Thick, Up to 120'' Wide
Pipe Standard: ASTM A167, ASTM A176, ASTM A240, ASTM A693, ASTM A480, EN10088-2, DIN17440
Steel Grades:300 Series Stainless, 400 Series Stainless
Surface:Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156
Packing:Waterproof Paper Wrapped, Packed in Wooden Cabins
Standard

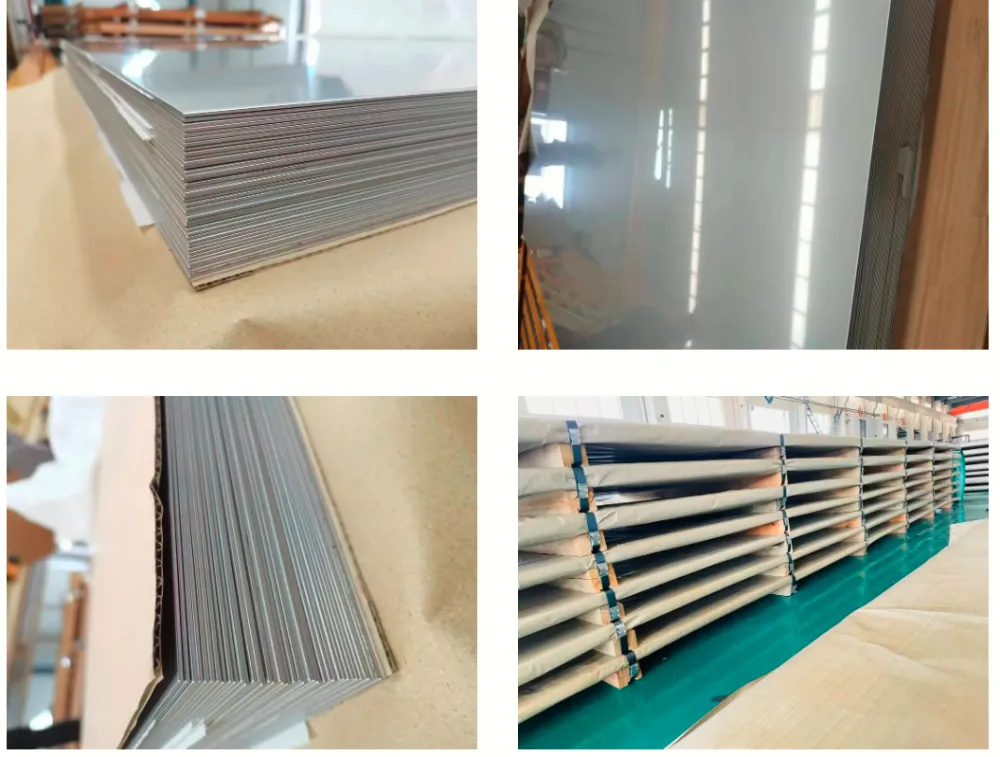

316/ 316L 316Ti stainless steel sheet
About 316 material:316 stainless steel by adding Mo element, the corrosion resistance, and high temperature strength has greatly improved, high temperature can reach 1200-1300 degrees, can be used in severe conditions.Corrosion resistance is better than 304 stainless steel, in pulp and paper production process has good corrosion resistance. And 316 stainless steel is also resistant to erosion of marine and corrosive industrial atmosphere.
About 316L material:316L stainless steel has a carbon content of less than 316, which is commonly used in pulp and paper equipment heat exchangers, dyeing equipment, film washing equipment, pipelines, coastal areas outside the building materials. Corrosion resistance is better than 316 material.
About 316Ti material: 316Ti stainless steel is a modification of 316 stainless steel, with the addition of Titanium (Ti) to improve its resistance to intergranular corrosion, especially in high-temperature applications. It is commonly used in high-temperature environments and in industries such as chemical processing, food production, power generation, and marine environments. The Titanium (Ti) content in 316Ti stabilizes the carbon content, preventing chromium carbide formation, which makes the steel resistant to intergranular corrosion in the welded state.
Corrosion Resistance: Similar to 316, but with improved performance in high-temperature environments and better resistance to intergranular corrosion.
The differences of chemical composition for 316 316L 316Ti stainless steel
| Grade | C(%) | Si(%) | Mn(%) | P(%) | S(%) | Cr(%) | Ni(%) | Mo(%) | Ti(%) |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | - |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | - |
| 316Ti | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 16.0-18.0 | 16.0-18.0 | 2.0-3.0 | 0.30-0.50 |
The differences of Mechanical property for 316 316L 316Ti stainless steel
| Grade | tensile strengthMpa | Yield StrengthMpa | Elongation(%) | rate of reduction in area(%) | Density(g/cm3) |
| 316 | ≥520 | ≥205 | ≥40 | ≥60 | 7.98 |
| 316L | ≥480 | ≥177 | ≥40 | ≥60 | 7.98 |
| 316Ti | ≥520 | ≥205 | ≥40 | ≥60 | 7.98 |
Summary of 316, 316L, and 316Ti:
316: High corrosion resistance, suitable for marine environments and chemical processing.
316L: Lower carbon content for improved welding and lower susceptibility to sensitization, used in food, paper, and equipment requiring welded joints.
316Ti: Enhanced resistance to intergranular corrosion, ideal for high-temperature applications, and environments where welding or high-temperature exposure is frequent.
Process
In the field of construction, it is used to manufacture structural support materials, such as beams, columns, bridges, building skeletons and high-rise buildings; in the field of machinery manufacturing, it is used to manufacture various machine tools, punches, presses, loaders and other mechanical equipment; in automobiles, It is used in the shipbuilding industry to manufacture various components, such as chassis, shell, deck, etc.
Stainless steel plate surface description
| Finish Designation | Finish Designation |
| No.1 | After hot rolling, heat treatment, pickling or other equivalent treatment is applied. |
| No.2D | Annealing and pickling are performed after cold rolling; material is soft with surface of silver-white luster; used for general applications and deep drawing. |
| No.2B | After 2D finish, skin pass rolling is performed to obtain a more suitable luster; the surface becomes very exquisite; used for general applications. |
| HL | This finish is performed by continuous linear polishing using an abrasive of appropriate grain size; mainly used for architectural applications. |
| BA | Achieved by performing bright annealing after cold rolling and then skin pass rolling to obtain even greater reflectance; provides excellent corrosion resistance; used for household appliances, kitchen equipment, and automobiles. |
| 8K | Through multiple grinding, it achieves very high brightness and smoothness, like a mirror. |
| No.4 | General 150-180 grit finish; used for restaurants and kitchen equipment and tools. |
