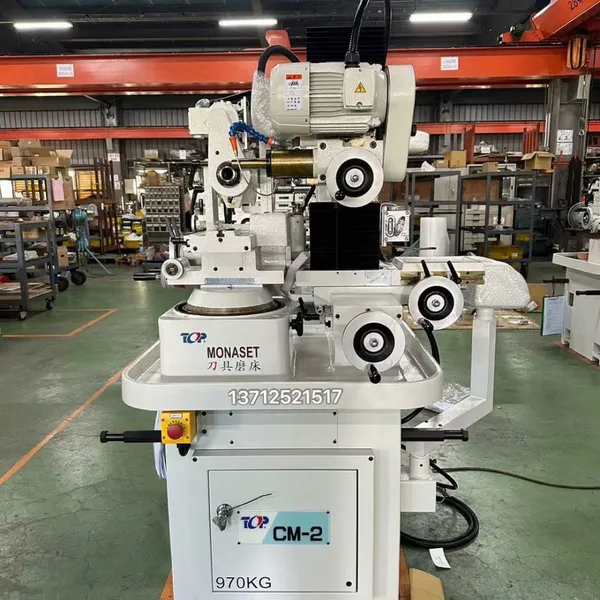

Cm-2 Monaset Tool Grinder

Dongguan Kunzheng Machinery Equipment Co., Ltd.
Cm-2 Monaset Tool Grinder thumbnail-1
Cm-2 Monaset Tool Grinder photo-1
US$ 27680 ≥1 Case
Key Specifications
Get Latest Price
Warranty:
Have
Automatic Grade:
Automatic
After-sales Service:
Have
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Warranty Have
Automatic Grade Automatic
After-sales Service Have
Condition New
Controlling Mode Artificial
Precision High Precision
Specification CM-2
Trademark TOP
Origin Taiwan
CM-2 Machine Specifications
Workhead
Max. Swing diameter304 mm
Max. Collet work diameter32 mm
Min. Collet work diameter5 mm
Max. Spiral angle60º
Max. Distance between nose of spindle and center of tailstock100 mm,152 mm
Grinding wheel head
Grinding Diameter100 mm
Workhead
Slide travel130 mm
Offset slide travel100 mm
Front of center50 mm
Rear of center50 mm
Angle adjustment of Workhead
Rotation of Horizontal plane±105º(210º)
Rotation of Vertical plane±40º
Grinding wheelhead
Longitudinal Slide travel110 mm
Vertical Slide travel240 mm
Cross slide travel170 mm
Spindle speed
Workhead speed50 HZ / 370 rpm
60 HZ / 440 rpm
Grinding wheelhead speed4000,6000,8000 rpm
Motor
Workhead1/4 HP (0.186 kw)
Grinding wheelhead1/2 HP (0.373 kw)
Machine
L x W x H1600 x1150 x 1650 mm
Weight860 kg
Standard Accessories
Wheelhead toothrest assembly with extension bar
Grinding wheel guards with extension bar
Front stock support
Straight cylindrical collets: metric sizes:5, 6, 8, 10, 12, 16, 20, 25 & 32mm
Straight cylindrical collets: inch sizes:1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1, 1 1/8 & 1 1/4"
Set of (5) grinding wheel flanges. (4)standard and (1) extension flange.
Diamond holder bracket
Wrench for workhead
Wrench for workhead
Adjustable tailstock support unit
Spanner for grinding wheel
Standard Arbor
Screw driver
Set of wrenches
Double-end spanner
Set of (4) index plates for spiral lead Machanism 0,8,10 & 12 divisions
Tool box
Grinding wheel (one each of straight, flaring cup and dish shape
Additional diamond truing tool with diamond nib
Spring-loaded index pawl for workhead
1/2" wheel flange and spanner
Optional Attachment
Large cutter radius grinding attachment
Four-inch universal six-jaw chuck for workhead
Additional index plates for spiral lead indexing unit-24T
Extended collect set with Wrench for smaller collect Included in φ3 mm collet
Frequency inverter for grinding wheel spindle - 2 hp
Upgrading Grindng - wheel- spindle motor - 2 hp
Dust collector attachment
