Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Brake > High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal

High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal

High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal thumbnail-1
High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal thumbnail-2
High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal thumbnail-3
High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal thumbnail-4
High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal thumbnail-5
High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal photo-1
High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal photo-2

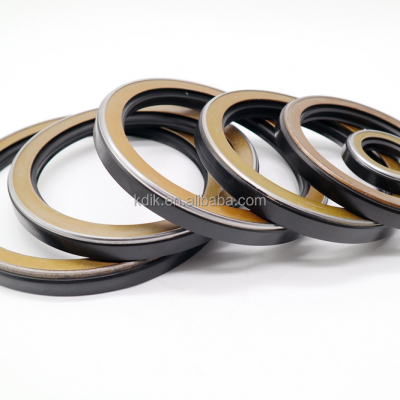

High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal photo-3
High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal photo-4
High Pressure Oil Seal NBR Material Tcn Type Kdik Factory Seal photo-5
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other
Type:
Other, NBR
Certification:
ISO/TS16949, IATF-16949, ISO9001
Contact Supplier Request Quote Chat Now
Xingtai Honglei Seal Manufacturing Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other
Type Other, NBR
Certification ISO/TS16949, IATF-16949, ISO9001
Classification Other
Warranty One year
Position Other
After-sales Service One year
Main Market South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market, Other
Drum Brakes Classification Other
Transport Package Plastic Bags/Carton
Specification 40*40*40
Trademark KDIK
Origin China

Basic information:

The TCN oil seal is a mechanical component used to seal oil. TCN skeleton oil seal isolates the parts of the transmission component that need to be lubricated from the output components so that lubrication and leakage are not allowed.

Technical data

Material:

NBR/FKM//Silicone/...etc

Type:

TCN High Pressure Oil Seal

Size Range:

ID from 5mm to 1M

Color:

Black, Brown, Customized

Feature:

Durable, Water Resistant, Oil Resistant

Packing:

By Roll/ Plastic Bag + Carton Box / Customized

HS Code

84842000

Temperature:

-40°C / +200°C Depending On Material

Pressure:

Up to 0.05 MPa

Speed:

Up to 25 m/s

Medias

mineral oils, water, lubricating grease

Spring:

Carton Steel/stainless steel

Hardness:

30-90 Shore


Products Pictures

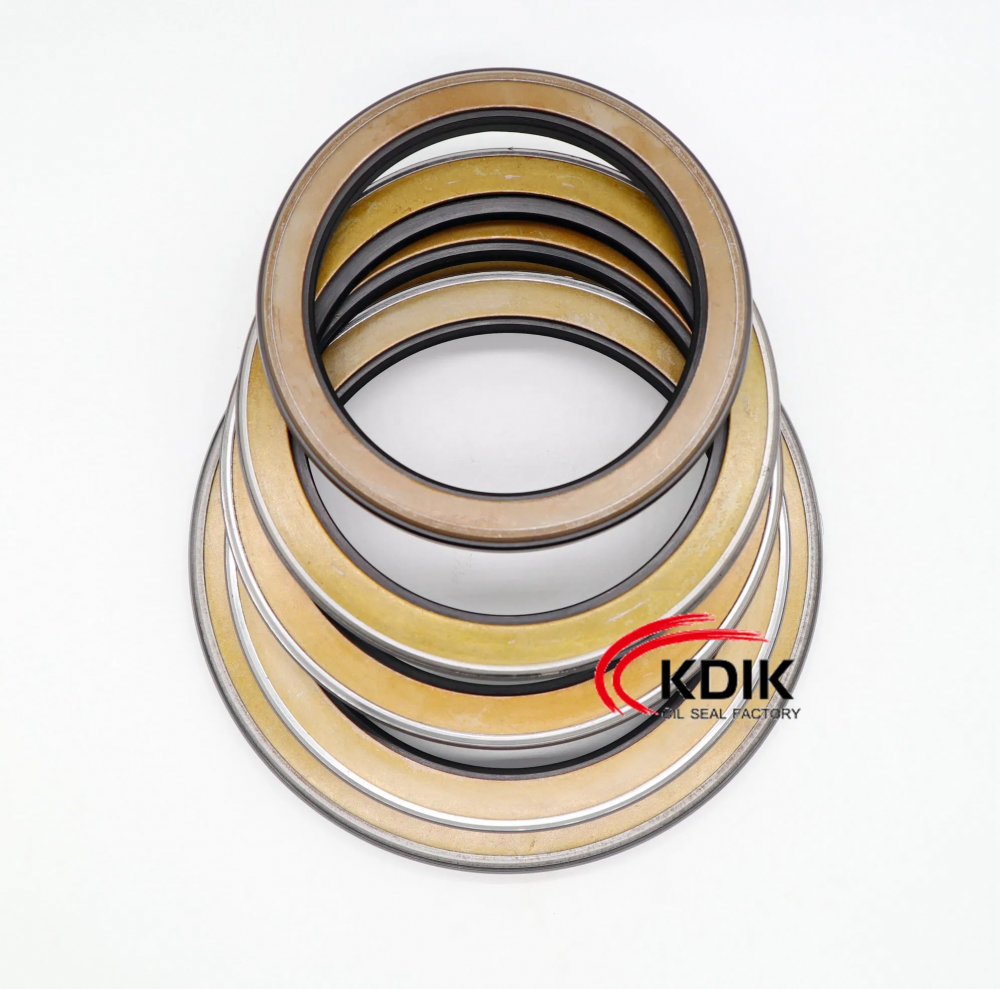

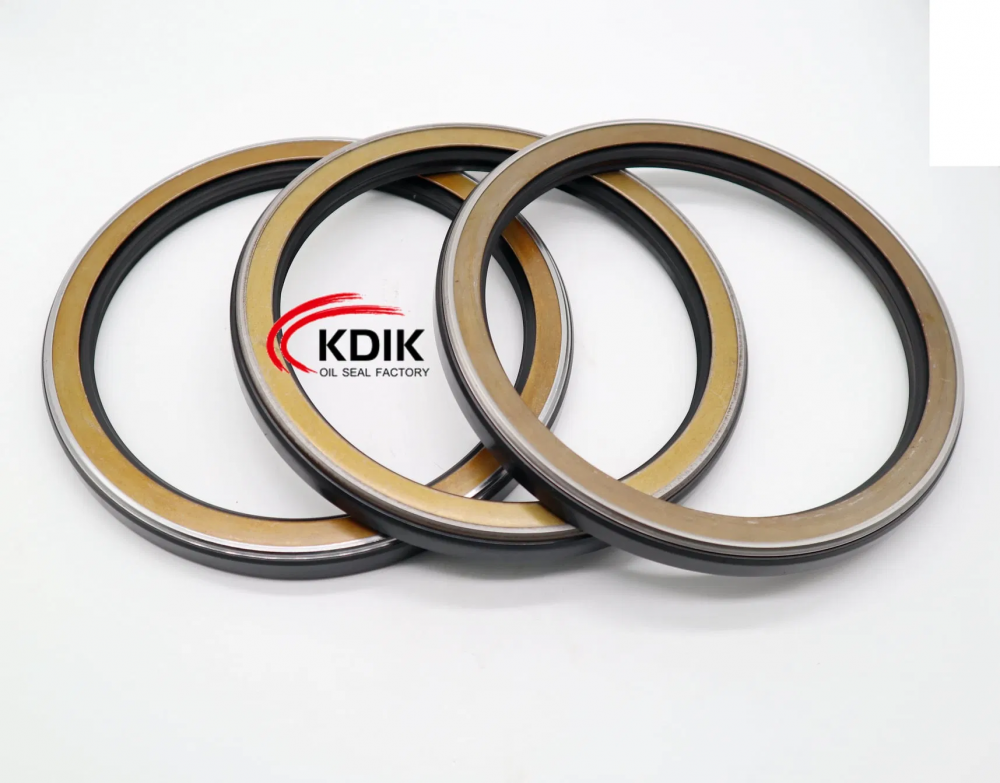

微信图片_20250808091557_146微信图片_20250808091553_145We can supply high pressure oil seal TCN type as following:

No. Item NOK No. Sizes Material
1 TCN  AP0760E 17-35-8 NBR/FKM
2 TCN  AP1013E 20-35-8 NBR/FKM
3 TCN  AP1033I 20-40-11 NBR/FKM
4 TCN  AP1147F 22-42-10 NBR/FKM
5 TCN  AP1148F 22-42-11 NBR/FKM
6 TCN  AP1260E 24-40-8 NBR/FKM
7 TCN  AP1338F 25-45-11 NBR/FKM
8 TCN  AP1563J 28-48-11 NBR/FKM
9 TCN  AP1665E 30-42-7 NBR/FKM
10 TCN  AP1709H 30-50-11 NBR/FKM
11 TCN  AP1904F 32-52-11 NBR/FKM
12 TCN  AP1978G 34-54-11 NBR/FKM
13 TCN  AP2085G 35-55-11 NBR/FKM
14 TCN  AP2085A 35-55-11 NBR/FKM
15 TCN  AP2086F 35-55-12 NBR/FKM
16 TCN  AP2083G 35-55-9 NBR/FKM
17 TCN  AP2240G 38-58-11 NBR/FKM
18 TCN  AP2388E 40-62-11 NBR/FKM
19 TCN  AP2379F 40-60-12 NBR/FKM
20 TCN  AP2390Q 40-62-12 NBR/FKM
21 TCN  AP2507H 42-65-12 NBR/FKM
22 TCN  AP2659E 45-65-12 NBR/FKM
23 TCN  AP2668G 45-68-12 NBR/FKM
24 TCN  AP2775G 48-62-9 NBR/FKM
25 TCN  AP2791G 48-70-12 NBR/FKM
26 TCN  AP2864I 50-72-12 NBR/FKM
27 TCN  AP2967J 52-75-12 NBR/FKM
28 TCN  AP2965E 52-75-9/3 NBR/FKM
29 TCN  AP3055F 55-78-12 NBR/FKM
30 TCN  AP3154H 58-80-12 NBR/FKM
31 TCN  AP3222B 60-82-12 NBR/FKM
32 TCN  AP3297G 62-85-12 NBR/FKM
33 TCN  AP3409F 65-90-13 NBR/FKM
34 TCN  AP3461E 68-90-14 NBR/FKM
35 TCN  AP3527B 70-95-13 NBR/FKM
36 TCN  AP3618G 75-100-13 NBR/FKM
37 TCN  AP3744K 80-105-13 NBR/FKM
38 TCN  AP3842H 85-110-13 NBR/FKM
39 TCN  AP3932B 90-115-13 NBR/FKM
40 TCN  AP3994B 95-120-13 NBR/FKM
41 TCN  AP4063B 100-125-13 NBR/FKM
42 TCN  AP4153H 105-135-14 NBR/FKM
43 TCN  AP4212B 110-140-14 NBR/FKM
44 TCN  AP4282G 115-145-14 NBR/FKM
45 TCN  AP4346B 120-150-14 NBR/FKM
46 TCN  AP4399E 125-155-14 NBR/FKM
47 TCN  AP4451G 130-160-14 NBR/FKM
48 TCN  AP4498E 135-165-14 NBR/FKM
49 TCN  AP4542F 140-170-14 NBR/FKM
50 TCN  AP4581G 145-175-14 NBR/FKM
51 TCN  AP4624G 150-180-14 NBR/FKM
52 TCN  AP4713G 160-190-16 NBR/FKM
53 TCN  AP4795F 170-200-16 NBR/FKM
54 TCN  AP4561E 35-60-15 NBR/FKM
55 TCN  UP0445E 44.45-63.55-9.5 NBR/FKM
56 TCN  UP0449E 34.925-57.15-8.85 NBR/FKM
57 TCN  UP0450E 33.34-72.39-9.5 NBR/FKM
58 TCN  UP0234E 38.15-57.15-9.5 NBR/FKM

Xingtai Honglei Seal Manufacturing Co., Ltd. is a leading enterprise in China. our products have been tested by the Center of HEBEI Province Rubber Products Inspection. All the performance indicators meet the industry standards. Xingtai Honglei Seal Manufacturing Co., Ltd. registered trademark "KDIK" is senior manufacturer for global markets. We are professional oil seals factory with more than 18 years experience. Our main product lines include: Automobile oil seal, Agricultural & Construction machinery oil seal, Wheel hub oil seals for tractors, Valve Stem Seals, Precision Rubber Parts, O-rings. Our Products are widely used in coal mines, oil fields, electric power, ships, automobiles, locomotives, construction machinery, agricultural machinery and other industries.

Our Advantages

 1.  We cooperate with first-class raw material suppliers in China and abroad, using the best raw materials. High quality NBR, silicon and FKM materials are imported from USA, Germany and Southeast Asia.

2. Top quality custom rubber products that can completely meet your needs.

3. Fast production & in-time delivery that never delay your project and usage.

4. One-stop custom service and value-added service to save your time and cost.

5. OEM/ODM Services are available. We can design and produce various Non-standard
    Rubber Parts according to your PDF,3D or STEP drawing files.

6. All of rubber finished products are 100% inspected before shipment.
