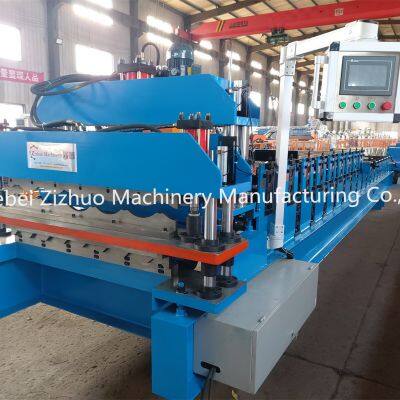

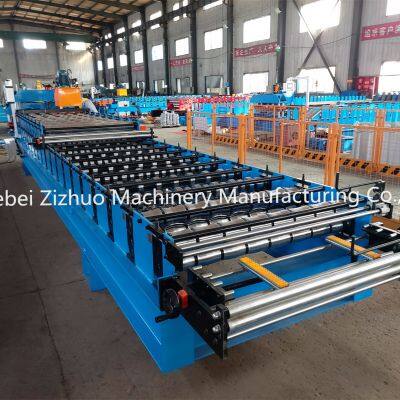

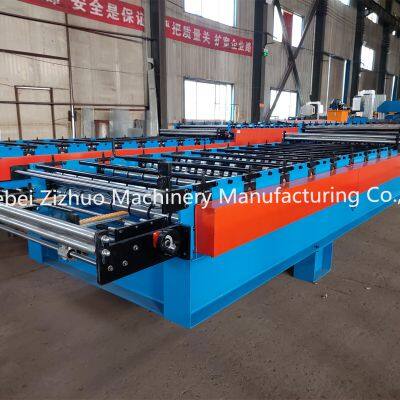

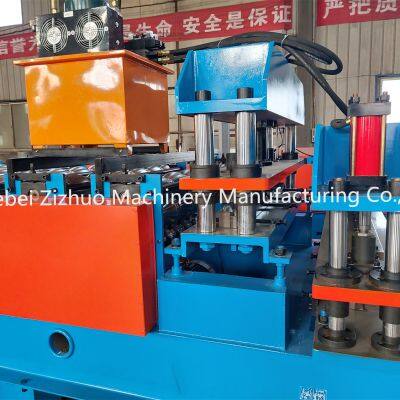

Double Layer Metal Roofing Sheet Tile Cold Roll Forming Machine Factory Price

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Technical parameters:

No.	Item		Parameter	Remark
1	Suitable material	Type	Color steel, galvanized steel
		Thickness(mm)	0.3-0.6mm	Test material standard 0.4mm
		Yield strength (Mpa)	≤300mm
		Width (mm)	About 1220mm
2	Forming speed		Roofing sheet 12-15 m/min	Not include cutting time
3	Motor of forming system (kw)		7.5kw
4	Hydraulic station power(kw)		4kw
5	Voltage requirements		AC380V, 50Hz, 3phase	According to customer’s request
6	Shafts		70mm	Solid bearing steel
7	Roller station		Upper layer 13 steps Down layer 16steps
	Roller material		#45 steel	58-62 degree heat treatment
8	PLC control system		Delta	Touch screen
9	Transducer		Delta
10	Machine dimension		8.61.61.76m
11	Weight		About 6.8 ton
12	Transmission		Chain	1.0’’

Hebei Zizhuo Machinery Manufacturing Co., Ltd: Contact nameJessica Li
