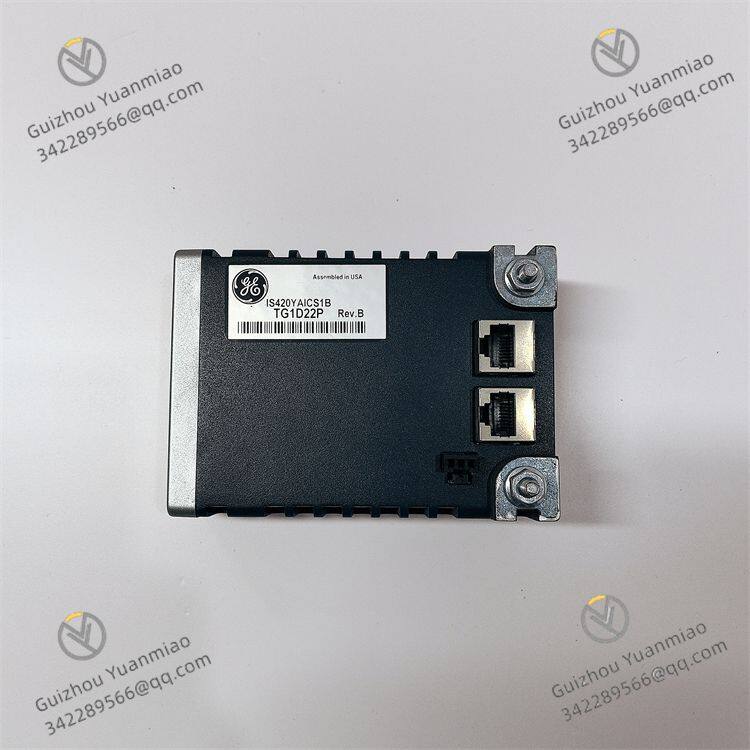

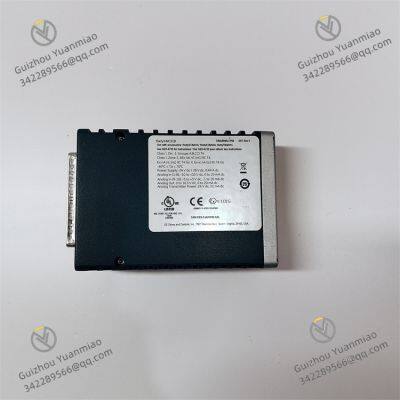

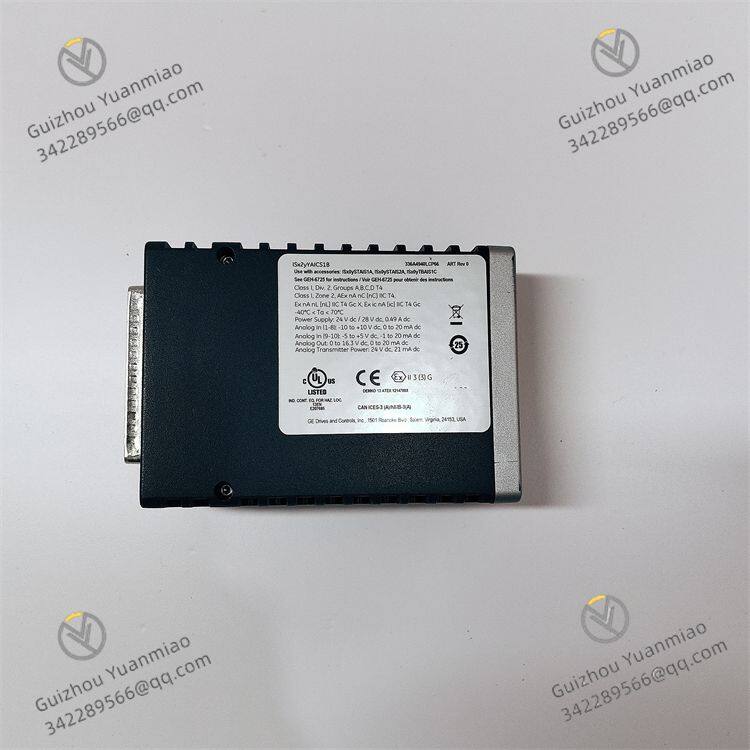

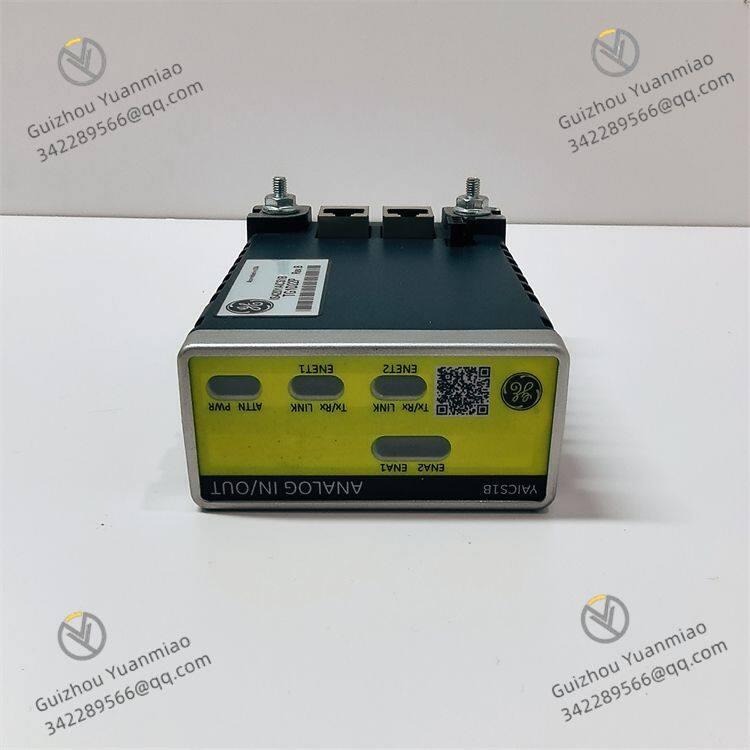

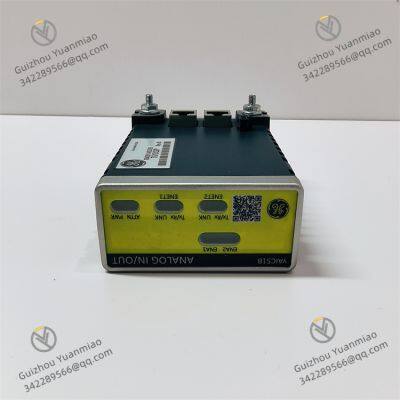

GE IS420YAICS1B Analog I/O Pack

I. Overview

GE IS420YAICS1B is a discrete input module belonging to GE's Mark VIe series control system. It is designed to play a key role in industrial control scenarios, responsible for collecting discrete input signals from various sensors, switches, and other field devices, and transmitting them to the control system for further processing and decision - making. This module is widely used in industrial applications such as power generation, oil and gas, and manufacturing, ensuring the stable operation of the overall control system by accurately sensing and reporting the status of field equipment.

II. Technical Parameters

1. Input Channels: The module is equipped with multiple discrete input channels, which can be flexibly configured according to actual needs. Generally, it can meet the connection requirements of a large number of discrete input devices, such as proximity switches, limit switches, and push - button switches in industrial sites.

2. Input Voltage Range: It supports a wide range of input voltage, usually capable of handling input signals within the range of 24V DC. This wide - voltage - range adaptability enables it to be well - integrated with different power supply systems in industrial environments, ensuring stable signal reception under various voltage conditions.

3. Input Signal Type: It can recognize and process various types of discrete input signals, including both normally open and normally closed signals. This flexibility allows it to interface with different types of field devices, accurately reflecting their on - off status to the control system.

4. Isolation: To ensure the reliability of the module and protect the control system from electrical interference, the input channels of IS420YAICS1B are usually equipped with high - performance isolation devices. The isolation voltage can reach a relatively high level, such as several hundred volts, effectively preventing electrical interference from the field from affecting the normal operation of the control system.

5. Response Time: The module has a fast response time, typically within milliseconds. This ensures that when the state of the field input device changes, the module can quickly capture the signal and transmit it to the control system, meeting the real - time control requirements of industrial processes.

6. Operating Temperature Range: It can operate stably in a wide temperature range, generally from - 40 °C to + 70 °C. This wide - temperature adaptability makes it suitable for use in various harsh industrial environments, such as desert oil fields with high temperatures and cold regions with low temperatures.

7. Dimensions: The module is designed in a compact size, for example, with a height of about 3.25 inches, a width of about 1.65 inches, and a depth of about 4.78 inches. This compact design allows it to be easily installed in control cabinets with limited space, saving installation space and facilitating system integration.

III. Functional Features

1. High - Reliability Design: GE IS420YAICS1B adopts high - quality components and advanced manufacturing processes to ensure its long - term and stable operation. In industrial environments full of electrical interference, vibration, and dust, it can still accurately collect input signals and maintain reliable communication with the control system, reducing the probability of system failures caused by module problems.

2. Flexible Configuration: The module provides users with flexible configuration options. Users can configure the input channels according to the actual types and quantities of field devices. For example, some channels can be set to accept normally open signals, and some can be set to accept normally closed signals, which can be adjusted according to the specific needs of the industrial process.

3. Diagnostic Function: It has a powerful self - diagnostic function. During operation, the module can continuously monitor its own working status, such as detecting whether the input channels are working properly, whether the power supply is normal, and whether there is an over - temperature phenomenon. Once a fault is detected, it can quickly send out a diagnostic signal, facilitating maintenance personnel to locate and solve problems in a timely manner, reducing downtime.

4. Communication Compatibility: The module is highly compatible with the Mark VIe series control system. It can communicate seamlessly with other components in the system through the system's internal bus, such as CPUs and output modules, ensuring the smooth flow of data within the control system and enabling coordinated operation of the entire control system.

IV. Common Faults and Solutions

1. No Input Signal Detection:

• Possible Cause:

• The input wiring may be loose, damaged, or not properly connected. For example, the wire may have come off the terminal block due to vibration.

• The field input device (such as a switch) may be faulty and not generating a proper signal.

• The input channel on the module may be damaged.

• Solution:

• Check the input wiring carefully. Re - connect the wires firmly to the terminal blocks and inspect for any visible damage. If there is damage, replace the wire.

• Test the field input device using a multimeter or other testing tools. If the device is faulty, replace it with a new one.

• If possible, switch the input signal to another channel on the module. If the signal is detected on the new channel, it indicates that the original channel is damaged, and the module may need to be repaired or replaced.

2. False Input Signals:

• Possible Cause:

• Electrical interference in the industrial environment may affect the input signals. For example, strong electromagnetic fields from nearby motors or power lines can induce false signals.

• The input voltage may be unstable, causing fluctuations that are misinterpreted as input signals.

• Solution:

• Shield the input wiring with metal conduits or use shielded cables to reduce the impact of electrical interference. Also, keep the wiring away from high - voltage and high - current cables.

• Check the power supply system to ensure stable input voltage. If necessary, install voltage stabilizers or filters to regulate the voltage.

3. Module Overheating:

• Possible Cause:

• The ventilation around the module may be poor. If the control cabinet is not properly ventilated or there is too much dust accumulation, it can prevent heat dissipation.

• The module may be operating in an environment with an extremely high ambient temperature.

• There may be a short - circuit or abnormal current consumption inside the module.

• Solution:

• Check the ventilation of the control cabinet. Clean the dust filters regularly and ensure that the cooling fans are working properly. If necessary, install additional cooling devices such as heat sinks.

• If the ambient temperature is too high, consider improving the cooling measures in the installation environment, such as installing air - conditioning equipment.

• If there is a suspicion of an internal short - circuit, disconnect the power supply and contact professional maintenance personnel to test and repair the module. Do not attempt to open the module by yourself to avoid further damage.
