Home > Products > printing machine > FFG 924 Nt - Flexo Folder Gluer 4 Colour Flexo Printing Machine

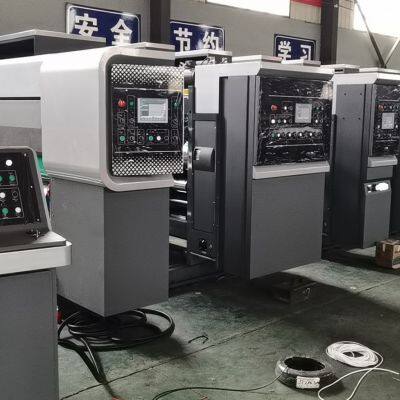

FFG 924 Nt - Flexo Folder Gluer 4 Colour Flexo Printing Machine
≥1 Units
- Tianjin
- T/T L/C
- 45 days
You May Like
-
MJBZJ-4 High Speed Automatic Flute Laminator for Corrugated Paperboard Flute Laminating Machine
-
High Speed Corrugated Cardboard Flute Laminator Machine for 4 Layer Laminating Machines
-
High-Speed Flute Cardboard Laminator in China Flute Laminating Machine With Automatic Feeder
-
5 PLY FULLY AUTO FLUTE LAMINATOR for Corrugated 2ply Liner With Duplex and Kraft Papers
-
Semi Automatic Flute Laminator for 3 Layer Corrugated Paperboard Laminating Machines
-
Good Quality Semi Automatic Flute Laminator for Corrugated Paperboard Flute Laminating Machine
Product Details
| Certification | ISO 9001:2000, CE | Warranty | 1 year | |
| After-sales Service | life time | Automation | Automatic | |
| Suitable for | Recycled Material, Paper | Condition | New | |
| Paper Thickness | Normal Specification Paper | Transport Package | sea | |
| Specification | set | Trademark | Royal Packing | |
| Origin | China |
Product Description
RYPT1228-V VACUUM TRANSFER HIGH SPEED 3 COLORS FLEXO PRINTING AND DIE CUTTING MACHINE
Main Features:
★.Machine introduction：
1. This machine is component with the feeding unit, printing unit, water base oil coating unit, dyer unit, die cutting unit and stacker, can accomplish the process of the corrugate paperboard printing, water base oil coating and die cutting.
2. The materials of the body is Carbon steel after 20 hours heating treatment, thickness of body is 60mm,after second stage annealing, making by CNC machine, with high strength and high precision.
3. All the transmission gear is helical gear, with low noise and high precision, gears after high frequency heating and grinding, adopt automatic circle lubrication.
4. The gear material is 20CrMnTi alloy steel, after high frequency heating and grinding. And the main transmission gear and roller adopt expansion sleeve connection.
5. Bearing adopts the famous brand made in China like HRB and NSK.
Specification:
Items/model | RYPT1228-V |
Max. paper coverage area | 1250×2850mm |
Min. paper coverage area | 380(full block print)×650mm |
Effective print area | 1200×2400mm |
Skip Feeding | 1450×2850mm |
Paperboard thickness | 2-11mm |
machine speed | 260pcs/min |
Min slotting distance | 265*65*265*65mm |
Max. Slotting depth | 320mm |
Printing plate thickness | 7.2mm |
Paperboard thickness | 2-11mm |
Max. Machine speed (pcs/m) | 300 pcs/min |
Economy production speed | 200-300pcs/min (depends on the size) |
Electronic List:
Name | Origin |
Button | Schneider, France |
Contactor | Schneider, France |
Servo motor | Delta, Taiwan China |
Main frequency converter | INVT, China |
PLC | Delta, Taiwan China |
Touch screen | Delta, Taiwan China |
Photoelectricity | Omron, Japan |
Intermediate relay | Omron, Japan |
Imported bearing | FKG, UK |
Domestic bearing | LNG,China/ DSB,China |
Main motor | |
Reducer | |
Micromotor | |
Fan belt | Rapplon, Swiss |
Paper press belt | Forbo Siegling, Germany |
Conveyor belt | Rapplon, Swiss |
Ball screw | TBI, Taiwan China |
Cylinder | XinWYang, Taiwan China |
