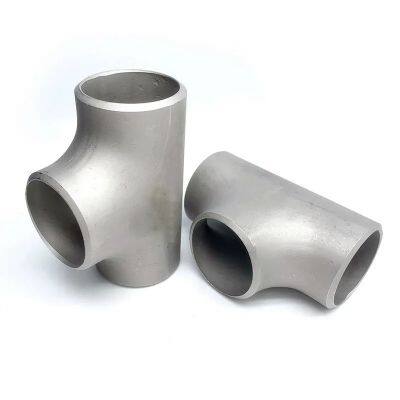

Help Center304/316L Stainless Steel Straight Seamless Irrigation Systems Plumbing Material Pipe Fitting 3 Way Staright Tee of Plumbing Connector Adapter
Related Products
-
Stainless Steel Seamless Pipe Fitting Straight TeeNegotiableMOQ: 1 Piece -
Plumbing Fitting Forged 304/316L 1-1/2 Inch Seamless Stainless Steel High Polished Equal TeeNegotiableMOQ: 1 Piece
-
ASME High Quality Wholesales Stainless Steel TeeNegotiableMOQ: 1 Piece
-
316L Customized Specifications Stainless Steel Tee Supplier in ChinaNegotiableMOQ: 1 Piece
-
ASME B36.19 Sch 10 40 80 100 120 140 304L Stainless Steel Welding Pipe Fitting TeeNegotiableMOQ: 1 Piece
|
ItemDetailed DescriptionApplication ScenariosStandard SpecificationsMaterial Properties- Materials: Stainless steel grades (e.g., 304, 316L, 321)- Chromium content ≥10.5%, forming a passive film- Tensile strength ≥520MPa, yield strength ≥205MPa (for 304)Chemical, food, pharmaceutical, and offshore engineering (corrosive or high-pressure environments)GB/T 12459, ASME B36.19Structural Parameters- Nominal Diameter (DN): Same diameter for main and branch pipes (e.g., DN50×50×50)- Wall thickness: Standard (Sch40/Sch80) or custom- Connection methods: Welding (BW/SW), threading (NPT/BSP), flangeHigh-pressure systems (welding), low-pressure pipelines (threading), equipment interfaces (flange)GB/T 13401, ASME B16.9Performance Parameters- Pressure rating: PN16-PN100+- Temperature range: -196°C to 800°C (depending on grade)- Corrosion resistance: Acid/alkali/salt spray resistance; 316L resists chloride ionsHigh-temperature boilers, cryogenic tanks, saltwater environments Surface Treatments- Polishing (mirror finish), passivation (corrosion protection), pickling (rust removal), electroplating (wear resistance), spraying (acid/alkali resistance), brushing (matte finish)Clean pipelines (polishing), outdoor pipelines (spraying), decorative projects (brushing) Fitting Types- Y-type: Branch pipe at 45°/60° to main pipe, low resistance- T-type: Branch pipe perpendicular to main pipe, right-angle connectionHigh-pressure flow division (Y-type), space-constrained installations (T-type) Application Scenarios- Industrial: Chemical, petroleum, pharmaceutical- Construction: Water supply, HVAC, fire protection- Special: Offshore engineering, high-temperature equipmentAll corrosion-resistant pipeline branching systems Selection Recommendations- Media corrosivity: 316L (severe corrosion), 304 (general)- Pressure/temperature: + high-temperature grades- Installation needs: Welding (concealed), threading (removable)
Table Notes:
|

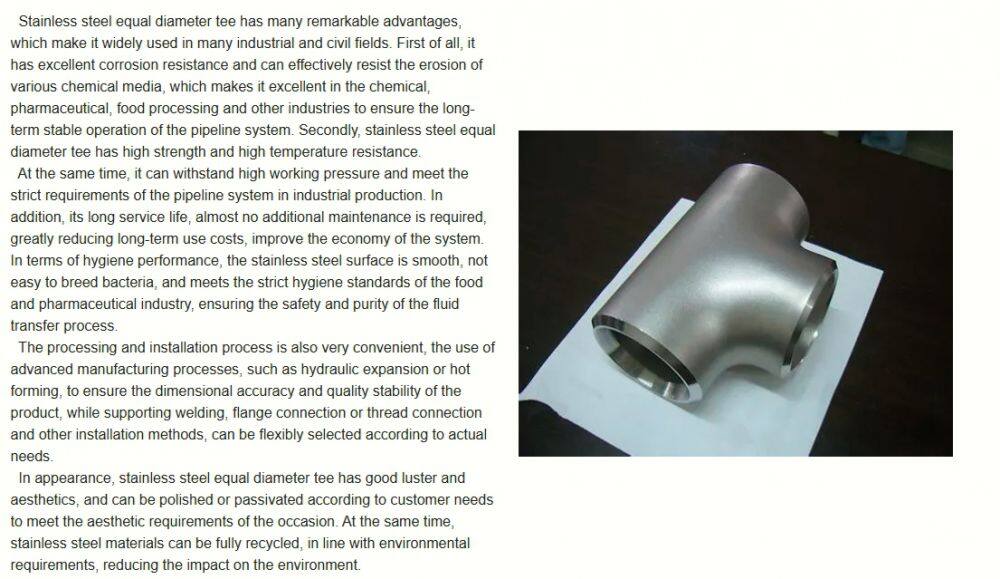

Taken together, these advantages of stainless steel equal diameter tee make it an indispensable component in modern pipeline systems, widely used in chemical, food, pharmaceutical, construction, oil, natural gas, environmental protection and other fields, providing a reliable solution for a variety of complex fluid transmission needs.
Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
