Bently Nevada 135785-01 System Display

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Bently Nevada 135785-01 System Display thumbnail-1

Bently Nevada 135785-01 System Display thumbnail-2

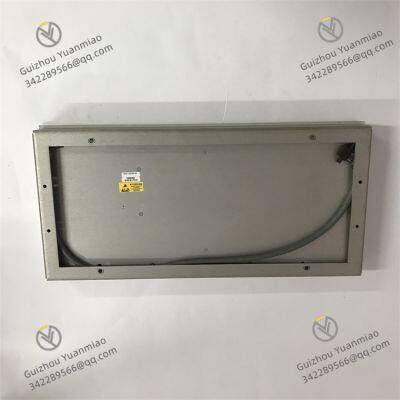

Bently Nevada 135785-01 System Display photo-1

Bently Nevada 135785-01 System Display photo-2

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -30°C to +75°C

Humidity 10% - 90% (non - condensing)

Dimensions 3cm×15cm×20cm

I. Overview

BENTLY 135785-01 is a professional monitoring module that holds an important position in the field of rotating machinery condition monitoring. Bently Nevada has profound technical accumulation and rich practical experience in this field, and its products are widely recognized in the industry for their high precision and high reliability. This module is mainly applied to the operation status monitoring of various rotating machinery, such as gas turbines, water turbines, centrifuges and other equipment. It can collect key operating parameters such as vibration, shaft displacement, key phase, and rotational speed of the equipment in real-time, and process and analyze these parameters. It provides accurate data support for equipment fault diagnosis, performance evaluation, and predictive maintenance, thereby ensuring the safe and stable operation of rotating machinery and reducing production losses caused by equipment failures.

II. Technical Parameters

(1) Physical Specification Parameters
Dimensions: The overall design is compact, with dimensions approximately 3cm × 15cm × 20cm (length × width × height). This small size allows it to be easily installed in positions with limited space such as equipment control cabinets and monitoring panels, without causing installation conflicts with other equipment, facilitating system integration and space planning.

Weight: The weight is about 0.6kg. The light weight makes the installation and transportation process more convenient, reduces the labor intensity of workers, and also reduces the load-bearing requirements on the installation structure, improving the flexibility of installation.

Shell Material: The shell is made of high-strength alloy material. This material not only has excellent impact resistance, which can resist mechanical collisions and scratches in industrial sites, but also has good corrosion resistance and high-temperature resistance. It can protect internal electronic components in complex and harsh industrial environments and extend the service life of the module.

(2) Power Supply Parameters
Power Supply Voltage: It adopts DC power supply, with a power supply voltage range of 20-30VDC. This voltage range matches the power supply systems of most industrial sites, can adapt to a certain degree of voltage fluctuation, ensures the module works stably under different power supply conditions, and continuously provides power support for equipment monitoring.

Power Consumption: The power consumption during normal operation is low, about 5W, which meets industrial energy-saving standards. The low-power characteristic not only reduces the cost of energy consumption but also reduces the heat generation of the module itself, avoiding performance stability issues caused by overheating, and ensuring the module runs reliably for a long time.

(3) Monitoring Parameter Range
Vibration Monitoring: The measurable vibration frequency range is 0.1-1000Hz, which can accurately capture various vibration signals generated by rotating machinery in different operation stages, including low-frequency vibration and high-frequency vibration. The vibration measurement accuracy reaches ±0.2% of full scale, which can provide high-precision vibration data for equipment status evaluation, helping technicians timely detect abnormal vibration of equipment, such as potential faults like bearing wear and rotor imbalance.

Shaft Displacement Monitoring: The shaft displacement measurement range is -2.5mm to +2.5mm, which can accurately monitor the axial displacement change of the rotating machinery shaft, with a measurement accuracy of ±0.01mm. It can timely reflect the operation status of the equipment shafting and prevent serious faults such as collision and wear of equipment components caused by excessive shaft displacement.

Rotational Speed Monitoring: The rotational speed measurement range is 0-10000r/min, which can monitor the rotational speed change of the equipment in real-time, with a measurement accuracy of ±0.1r/min. It can quickly respond to rotational speed fluctuations and provide an accurate basis for equipment speed regulation control and operation status adjustment.

Key Phase Monitoring: It supports key phase signal input, and can realize phase analysis of rotating machinery through key phase signals, helping technicians more accurately judge the source of equipment vibration and the location of faults, and improving the accuracy of fault diagnosis.

(4) Environmental Adaptability Parameters
Operating Temperature Range: The operating temperature range is -30°C to +75°C, which can adapt to various extreme industrial environments such as cold and high-temperature conditions. Whether in cold industrial plants in the north or hot production workshops in the south, the module can maintain stable monitoring performance, ensuring that equipment status monitoring work is not affected by temperature.

Humidity Adaptability: It can operate normally in an environment with a relative humidity of 10%-90% (non-condensing). Through special moisture-proof treatment processes, such as moisture-proof coating on internal circuits and interface sealing, it effectively prevents damage to the internal circuits of the module caused by humid air. It is suitable for humid industrial places such as coastal factories and food processing plants.

Anti-interference Performance: It has strong anti-electromagnetic interference capability, adopts multiple shielding technologies and filter circuit designs, and can effectively resist electromagnetic interference signals in industrial sites, such as electromagnetic radiation generated by motors, frequency converters and other equipment. It ensures the accuracy and reliability of monitoring data and provides a credible data basis for equipment fault diagnosis.

Vibration Resistance: After special structural optimization and reinforcement treatment, the module has good vibration resistance. It can withstand vibration with a frequency of 10-2000Hz and an acceleration of 10g. In the strong vibration environment generated by the operation of rotating machinery, the internal electronic components and line connections of the module will not loosen or fall off, ensuring the stable realization of monitoring functions.

III. Functional Features

(1) High-precision Multi-parameter Monitoring
Comprehensive Parameter Collection: It can simultaneously monitor multiple key parameters of rotating machinery such as vibration, shaft displacement, rotational speed, and key phase in real-time, realizing comprehensive perception of equipment operation status. Through the joint analysis of multiple parameters, technicians can more comprehensively understand the operation status of the equipment and improve the accuracy and timeliness of fault diagnosis.

High-precision Measurement: It adopts advanced sensing technology and signal processing algorithms to ensure that the measurement accuracy of various parameters meets high industry standards. Whether it is vibration, shaft displacement, or rotational speed monitoring, it can provide accurate data, laying a reliable foundation for equipment status evaluation and fault diagnosis, and effectively avoiding misjudgment caused by measurement errors.

(2) High Reliability and Stability
Durable Design: From the shell material to the selection of internal components, strict high-quality standards are followed. The high-strength alloy shell can effectively protect the internal structure, and high-quality components ensure the stable performance of the module during long-term operation, reduce the probability of faults, and ensure the continuity of equipment monitoring work.

Multiple Protection Mechanisms: It has built-in overvoltage, overcurrent, and short-circuit protection circuits. When the power supply system is abnormal or the external circuit fails, the protection circuits can act quickly to cut off the power supply or limit the current, preventing module damage, and improving the fault resistance and safety of the module.

Redundant Design: The key power supply circuits and communication circuits adopt redundant design. When the main circuit fails, the redundant circuit can automatically switch to operate, ensuring that the monitoring and communication functions of the module are not interrupted, providing double protection for the safe operation of the equipment, and is especially suitable for key industrial scenarios with high requirements for equipment reliability.

Product Tags: 135785-01 , 3500/93
