Home > Metallurgy, Mineral & Energy > Steel & Products > Stainless Steel > Stainless Steel Seamless Welding Pipe Fittings 30d 45 Degree Elbow

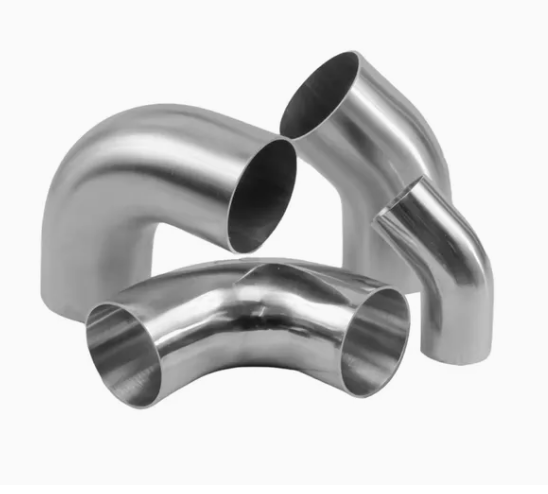

Stainless Steel Seamless Welding Pipe Fittings 30d 45 Degree Elbow
US$ 9.9
≥50 Units
Key Specifications
Get Latest Price
Type:
Stainless Steel Pipes
Certification:
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
Stainless Steel 304 Sanitary Welded Elbow 90 Degree and 45 Degree 1.5"-12"US$ 9.9MOQ: 50 Units -
Stainless Steel 304 Sanitary Welded Elbow 90 Degree and 45 Degree 1.5"-12"US$ 9.9MOQ: 50 Units
-
Stainless Steel Elbows Superior Corrosion Resistance Flexible Quantities R800 R1000 45 º CUS$ 9.9MOQ: 50 Units
-
Stainless Steel Elbow 45 Degree ElbowUS$ 9.9MOQ: 50 Units
-
Alloy 400 Uns N04400 Monel 400 2.4360 Nickel Alloy Stainless Steel Seamless Pipe for Gasoline and Clean Water TankUS$ 500 - 1100MOQ: 1 Ton
Type
Stainless Steel Pipes
Certification
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape
Round
Grade
Other
Technique
Other
Surface Treatment
Polished
Standard
ASTM, AISI, GB, JIS, DIN, EN, Other
Specification
OEM
Trademark
ZHONGZHENG INTERNATIONAL
Origin
China
Detailed Photos
Technical Specifications
(Custom configurations available upon request.)
size | ASME OUTSIDE DIAMETER | SCH40 | SCH160 |
15 1/2" | 21.3 | 2.77 | 4.78 |
25 1" | 26.7 | 2.87 | 5.56 |
50 2" | 60.3 | 3.91 | 8.74 |
80 3" | 88.9 | 5.49 | 11.13 |
100 4" | 114.3 | 6.02 | 13.49 |
125 5" | 141.3 | 6.55 | 15.99 |
| Item Name: | Stainless Steel Elbows | ||||||||
| Standard: | ASTM A554 | ||||||||
| Grade of Material: | AISI 201, 304, 304L, 316, 316L, etc. | ||||||||
| Certificate: | ISO 9001: 2008 | ||||||||
| Dimension: | Normal | ||||||||
| Wall Thickness: | 0.3 mm - 3.0 mm | ||||||||
| Surface: | Polished 320 G, 400 G, 600 G; Hairline; Descaled. | ||||||||
| Length: | Normal | ||||||||
| Packing: | According to client request. | ||||||||
| Application: | Decoration, construction & building, such as handrail, railing, window, furniture, etc. | ||||||||
| Chemical Composition: | Grade of Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| AISI 201 | ≤0.15 | ≤1.00 | 5.50~7.50 | ≤0.060 | ≤0.03 | 1.00 ~1.50 | 13.50~15.00 | \ | |
| AISI 202 | ≤0.15 | ≤1.00 | 7.50~10.00 | ≤0.060 | ≤0.03 | 4.00~6.00 | 17.00~19.00 | \ | |
| AISI 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~11.00 | 18.00~20.00 | \ | |
| AISI 304L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.00~13.00 | 18.00~20.00 | \ | |
| AISI 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| AISI 316L | ≤0.035 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | |
| Mechanical Property: | Grade of Material | Elongation (%) | Tensile Strengh (Rm) N/m m³ | Yield Strength (Rp) 0.2%N/m m³ | Hardness (HV) | ||||
| AISI 201 | ≥35 | ≥520 | ≥210 | ≤253 | |||||
| AISI 202 | ≥35 | ≥590 | ≥210 | ≤218 | |||||
| AISI 304 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 304L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
| AISI 316 | ≥35 | ≥520 | ≥210 | ≤200 | |||||
| AISI 316L | ≥35 | ≥480 | ≥180 | ≤200 | |||||
Our Advantages:
1. High-quality products as per certificate ISO 9001: 2008.
2. Good services to satisfy you.
3. Timely delivery for your orders.
4. Samples are available as per your request.
We also provide:
1. FORM E/Certificate of Origin and other export certificates.
2. Data sheets and drawings
3. T/T, L/C payment
