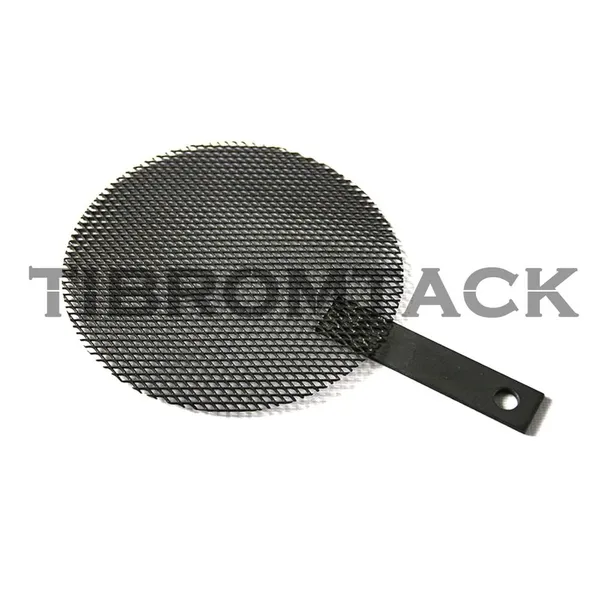

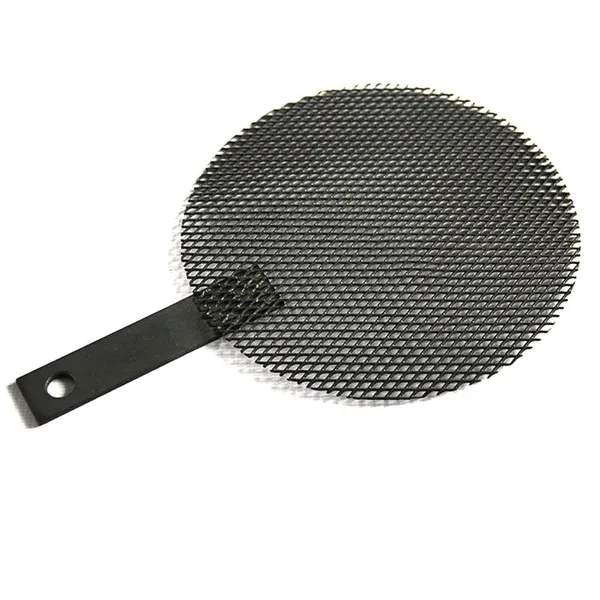

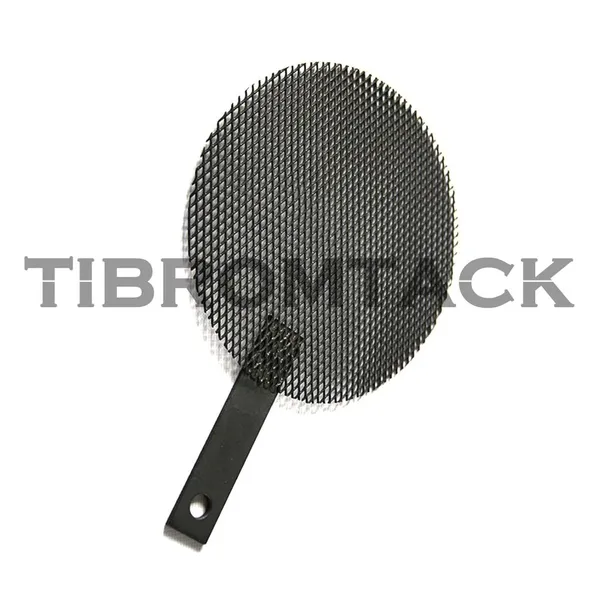

TIBROMTACK 1 Pcs Titanium Anode Mesh With MMO Ruthenium-Iridium Coating for Chlor-Alkali Industry or Swimming Pool Cleaning

Product Description

Details about Titanium Anode：

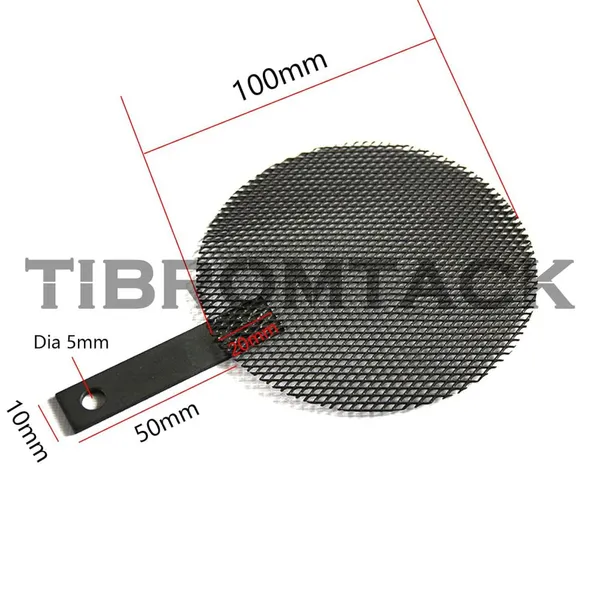

Size:150*100*1mm(5.9*3.94*0.04 inches) Thickness: 1mm Terminal: 50mm(1.97 inches) Our minimum tolerance range is based on international norms and is typically ±0.002 mm. We also can provide you with customized services, according to the drawings or dimensions provided by the customer.

Applications of Titanium Anode：

Our products are used in chemical industry, metallurgy, water treatment, electroplating, electrolytic organic synthesis, and other electrolytic industries. Mostly used in swimming pool cleaning, water treatment for chlor-alkali industry,hydrogen production by electrolysis of seawater, chlorine production,hypochlorite industry, electrolytic production of sodium hypochlorite, sewage and wastewater treatment,ICCP cathodic Protection, Electrolysis of metals gold silver copper nickel cobalt, electroplating industry, desalination of seawater by electrodialysis, electrolysis of acid and alkaline water.

Testing Process：

Titanium is a dense hexagonal lattice at room temperature (below 885 degrees), and a body-centered cubic lattice above 885 degrees, with a volume increase of 5.5%.
Titanium alloys can reach 700 to 1200 MPa, and even up to 1400 MPa, so the specific strength of titanium alloys (i.e., the ratio of strength to density), than any other materials are now larger.

·         【Composition】:The electrolytic plate is made of DSA type electrode, anode plate coated with MMO precious metal oxide electrocatalytic coating, and industrial pure titanium cathode plate. It can be used in salt water, tap water, sea water and other environments.

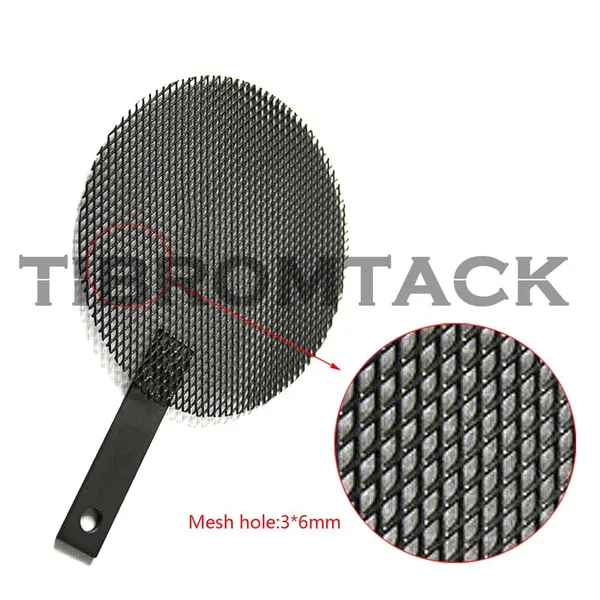

·         【Advantages of titanium electrode mesh】: Titanium mesh uses industrial pure Gr1 titanium as the substrate, with dimensional stability, good electrical conductivity and high corrosion resistance. And the substrate can be recycled and recoated with MMO for reuse.

·         【Characteristics of ruthenium coating】： The surface of titanium anode is coated with ruthenium-iridium by a special process, which has good electrocatalytic performance and resistance to electrolytic oxidation, and can produce better electrolytic reaction than other electrodes, which can provide better conversion efficiency. And has the characteristics of high melting point, high strength and stable electrothermal properties.

·         【Applications】：Most used in swimming pool cleaning, water treatment for chlor-alkali industry, hydrogen production by electrolysis of seawater, chlorine production, hypochlorite industry, electrolytic production of sodium hypochlorite, sewage and wastewater treatment, ICCP cathodic Protection, Electrolysis of metals gold silver copper nickel cobalt, electroplating industry, desalination of seawater by electrodialysis, electrolysis of acid and alkaline water.

·         【What will you get】：One pieces of titanium electrodes, the effective area of cathode and anode both are 150*100*1mm(5.9*3.94*0.04 inches) with titanium terminal of 50mm(1.97 inches), same as the picture.
