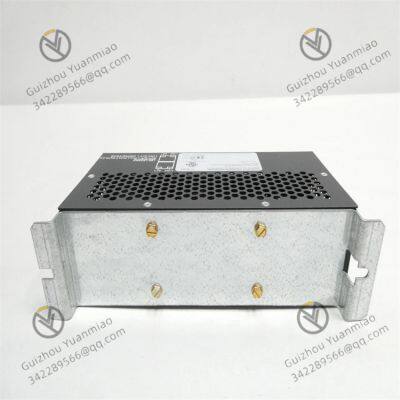

IS420UCSCH1B GE Four Core Controller Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

IS420UCSCH1B is a quad-core controller module designed by GE for its Mark VIe turbine control system series. Here are its detailed specifications:

Technical Specifications

Processor: 1.2GHz AMD G-Series quad-core microprocessor
Memory: 4GB DDR3-1333 SDRAM
Operating System: QNX Neutrino real-time OS, supporting multitasking
Non-Volatile Memory: 3,067 non-volatile program variables, 64 accumulators, 338 forced variables
Ethernet Ports: 6 total (5 on front panel, 1 on bottom for Predix connectivity)
Redundancy Modes: Supports Triple Modular Redundancy (TMR), simplex, and dual redundant configurations
Altitude: Operational up to 1,000 meters (89.9-101.3 kPa)
Storage Temperature: -40°C to 85°C
Platform Features: Embedded Field Agent (EFA), EtherCAT, and PPNG capabilities

Redundancy Configuration

TMR Redundancy: Utilizes all three front-panel Ethernet ports (R/SL1, S/SL2, T/SL3) for triple redundancy.
Dual Redundancy: Uses only R/SL1 and S/SL2 ports for simplex or dual redundant configurations.
Fault Tolerance: Designed to maintain continuous operation during controller replacement or maintenance, ensuring no loss of critical input data.

Key Features

Standalone Architecture: Unlike other Mark VIe controllers, it operates independently without relying on a backplane for I/O, enhancing reliability.
Safety Integration: Connects with safety systems via EGD protocol over UDH Ethernet ports, acting as a communication gateway for non-SIF loops.
Protocol Support: Offers OPC UA server and Modbus master capabilities for seamless integration with SCADA and other industrial systems.
Predix Connectivity: Bottom-panel Ethernet port enables cloud connectivity for remote monitoring and analytics.
