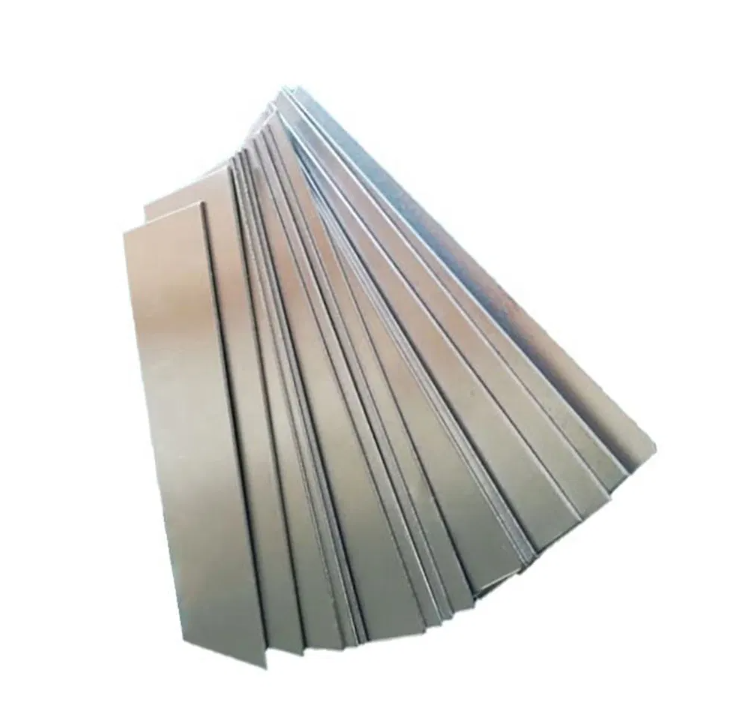

Factory price Astm B409 nickel alloy inconel incoloy 800 800h sheet strip
Alloy 800 is an iron-nickel-chromium alloy with moderate strength and good resistance to oxidation and carburization at elevated temperatures. It is particularly useful for high-temperature equipment in the petrochemical industry because the alloy doesn't form the embrittling sigma phase after long time exposure at 1200°F (649°C). Excellent resistance to chloride stress-corrosion cracking is another important feature of alloy 800.
Alloy 800H is a solution heat treated (2100°F/1150°C), controlled-carbon version of alloy 800 with improved elevated temperature properties. It has improved creep and stress-rupture characteristics in the 1100°F (593°C) to 1800°F (982°C) temperature range.
Applications
Typical applications for alloy 800 and 800H are - Heat exchangers and process piping; carburizing fixtures and retorts; furnace components; electric range heating-element sheathing; extruded tubing for ethylene and steam methane reforming furnaces; ammonia effluent coolers.
Physical Properties
The following table discusses the physical properties of INCOLOY alloy 800.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.94 gm/cm3 | 0.287 lb/in3 |
Mechanical Properties
The mechanical properties of INCOLOY alloy 800 are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength(annealed) | 600 MPa | 87 ksi |
| Yield strength(annealed) | 275 MPa | 39.9 ksi |
| Elongation at Break | 45% | 45% |
Other Designations
Some of the designations used to denote INCOLOY alloy 800 are listed below:
| UNS N08800 | AMS 5766 | AMS 5871 | ASTM B163 | ASTM B366 |
| ASTM B407 | ASTM B408 | ASTM B409 | ASTM B514 | ASTM B515 |
| ASTM B564 | DIN 1.4876 |
| Incoloy | Incoloy 800 | Incoloy 800H | ||
| Element | Min | Max | Min | Max |
| Nickel + Cobalt | 30.0 | 35.0 | 30.0 | 35.0 |
| Cobalt | --- | 2.00 | --- | 2.00 |
| Chromium | 19.0 | 23.0 | 19.0 | 23.0 |
| Copper | --- | 0.75 | --- | 0.75 |
| Iron | Bal | Bal | ||
| Silicon | --- | 1.00 | --- | 1.00 |
| Manganese | --- | 1.50 | --- | 1.50 |
| Carbon | --- | 0.10 | 0.05 | 0.10 |
| Aluminum | 0.15 | 0.60 | 0.15 | 0.60 |
| Titanium | 0.15 | 0.60 | 0.15 | 0.60 |
| Sulfur | --- | 0.015 | --- | 0.015 |
| Form and Condition | Tensile Strength | Yield Strength (0.2% Offset) | Elongation, % | Hardness, Rockwell | ||
| ksi | Mpa | Ksi | Mpa | |||
| Wire | ||||||
| cold drawn | ||||||
| Annealed | 80-120 | 550-830 | 35-75 | 240-520 | 45-20 | - |
| No. 1 Temper | 105-135 | 725-930 | 70-105 | 480-725 | 35-15 | - |
| Spring Temper | 170-220 | 1170-1520 | 150-210 | 1035-1450 | 5-2 | |
Transoprt
Why choose us?
-
• You can get the perfect material according to your requirement at the least possible price.
• We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
• The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
• We guarantee to give a response within 24hours(usually in the same hour)
• Provide SGS, TUV,BV 3.2 report.
• We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
• Provide one-stop service.
ZHEJIANG ZHONGZHENG STAINLESS STEE MANUFACTURING CO., LTD is a professional supplier of stainless steel materials, located in Zhejiang, China with high speed of economic development. We are near shanghai port; the traffic is very convenient.The main stainless steel materials are stainless steel plate, pressure vessel stainless steel plate, high temperature boiler plate, corrosion resistant stainless steel plate, stainless steel seamless pipe, stainless steel industrial pipe, stainless steel welded pipe, stainless steel bar, stainless steel pipe and so on.With the aim of "quality first, timely delivery, good faith cooperation, considerate service and common development", the company has set up a good reputation in the industry for providing high quality stainless steel materials and perfect after-sales service.
