Daheng Visual 1-Year Warranty AB Fluids Epoxy/Silicone/Polyurethane Mixing Machine with Core Motor/Engine Components

FOB Price

US$ 139000

≥1 Units

Port guangzhou/shenzhen
Payment TermsT/T L/C PayPal D/P Western Union
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Packaging	Cartons	Warranty	13 months
After-sales Service	supported	Gluing Mode	Other, Dosing，dispensing ，potting ，mixing
Glue Type	Other, PU ,SILICONES ,EPOXY	Transport Package	standard export woodcase
Trademark	D&H	Origin	China

Product Description

glue dispensing machine

Daheng Visual 1-Year Warranty AB Fluids Epoxy/Silicone/Polyurethane Mixing Machine with Core Motor/Engine Components

Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component, polyurethanes, epoxies, silicone, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component systems, and high-precision dispensing robots. We have the right equipment for adhesive, epoxy, or silicone applications to meet your needs.

D&H accepts a variety of customization, including size, number of tanks, temperature control, etc.

Please contact us for more information!

Basic Working principle ：

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Daheng Automation specializes in a diverse range of Fillling Dosing Potting and Dispensing systems. Regardless of the specific resin application requirements you may have, our fully equipped is capable of handling most of them.

We are proficient in dealing with various materials, including one - and two - component polyurethanes, epoxies, acrylics,silicones, as well as temperature, humidity, and UV - curing materials. These materials can span from low - to high - viscosity,be either filled or unfilled, and even include highly abrasive substances for thermal conductivity purposes.

Application range

Main application industries: automotive electronics, industrial electronics, electrical industry, new energy, aviation/aerospace/navigation, lighting,communication/power supply, power tools, electronic components, etc.

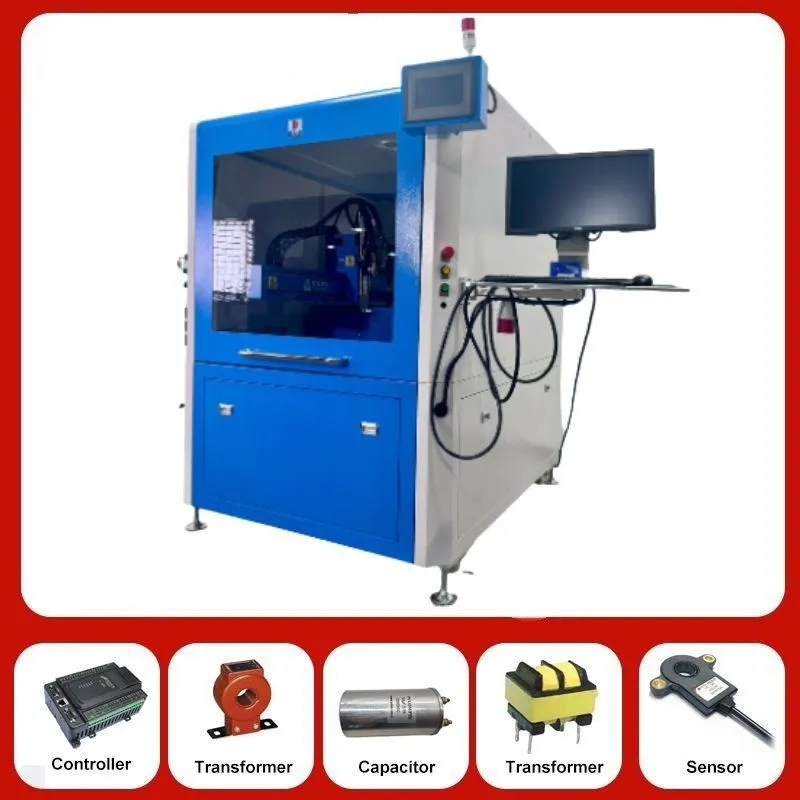

Main product applications: automotive electronics, industrial equipment, sensors, mutual inductors, transformers, ignition coils, capacitors, module power supplies, control systems, communication equipment, inverters, motors, motors, household appliances, power tools, etc.
Application resin: two-component liquids such as two-component epoxy resin, two-component polyurethane resin/two-component PU glue, two-component silicone, etc.

Technological Innovation Advantages

Double-Cylinder Double-Plunger Pump Technology
The pioneering "double-cylinder double-plunger pump technology" introduces a next-generation fluid metering and control system with exceptional precision, variable output, uninterrupted operation, and extended lifespan. This technology accommodates a wide range of viscosities, as well as liquid-liquid and solid-liquid mixtures, ensuring precise control over glue output and mixing ratios. This guarantees stable and consistent glue-filling quality for diverse applications.

Optimized Plunger-to-Pump Sleeve Clearance:

Daheng's plunger pump is engineered with precise machining to meticulously control the clearance between the plunger and the pumpsleeve. This ensures smooth plunger movement while minimizing residual liquid in the gap, which reduces the risk of crystalformation due to leftover fluid.

Innovative Flow Channel Design:

Daheng has independently developed an advanced anti-crystallization plunger pump featuring specialized flow channels and annular grooves in the pump sleeve. The inner wall of the pump sleeve is designed with an inclined flow channel that optimizes the cleaning process. As the plunger moves, cleaning fluid is more effectively directed over the plunger surface, preventing solute adhesion and crystallization.

1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .

2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.

3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .

4 Machine with gel resistance calculator , which prevent the mixture curing inside .

5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .

6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .

7 Reserved PLC communication interface, which easy connecting with outside device .

8 Equipped with a safety lock to prevent staff from wrong operation .

Tech Data

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	480480100mm
Displacement speed	250mm/s（speed）
Out-glue speed	1-12g/s per single pump
Accuracy	±2%（output volume）±2%（mixing）
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs-999pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation

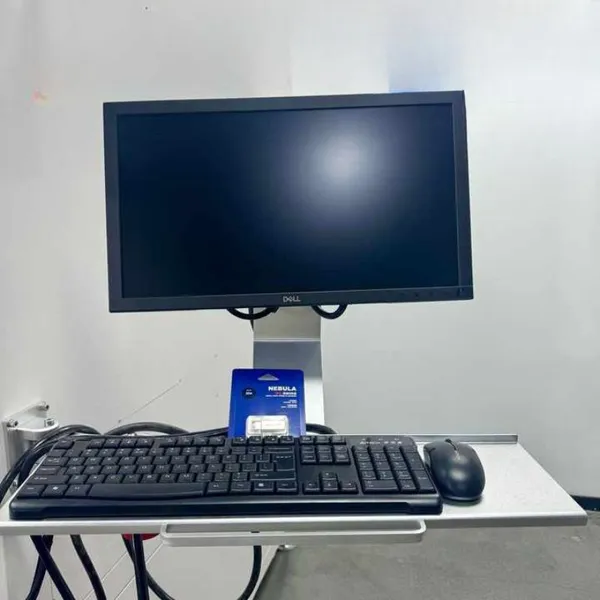

Programmatically	Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W without heating
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	10L 25L 40L stainless tank（optional）
B tank	10L 25L 40L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function
