2-Part Epoxy Silicone Polyurethane Auto Glue Dispenser 3 Axis 2K AB Resin Machine China Manufacturing for Auto Potting
US$ 139000
≥1 Unit
Key Specifications
Get Latest Price
Packaging:
Cartons
Warranty:
13 months
After-sales Service:
supported
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou/shenzhen
Delivery Detail:
15 days
Related Products
-
Automatic Polymer-Resin Glue Dispenser Machine AB Silicone PU Pasting Pre-Heating for Chemical Applications Gear Core Wood CaseUS$ 139000MOQ: 1 Unit -
Automatic 2 Component 2 Part AB Silicone Epoxy Resin Urethane Resin Meter Mix Dispensing Machine Robot PriceUS$ 139000MOQ: 1 Case
-
Inquiry About 3D Automatic Polyurethane Sticker Doming Glue Dispenser Epoxy Compound Filling MachineUS$ 139000MOQ: 1 Set
-
Daheng Air Bubble Free PU Epoxy Dispensing System Ab Glue Inline Vacuum Potting MachineUS$ 139000MOQ: 1 Unit
-
Vacuum Glue Dispensing System Eliminates Air Bubbles in Epoxy Resin Potting ApplicationsUS$ 139000MOQ: 1 Unit
Packaging
Cartons
Warranty
13 months
After-sales Service
supported
Gluing Mode
Other, Dosing，dispensing ，potting ，mixing
Glue Type
Other, PU ,SILICONES ,EPOXY
Transport Package
standard export woodcase
Trademark
D&H
Origin
China

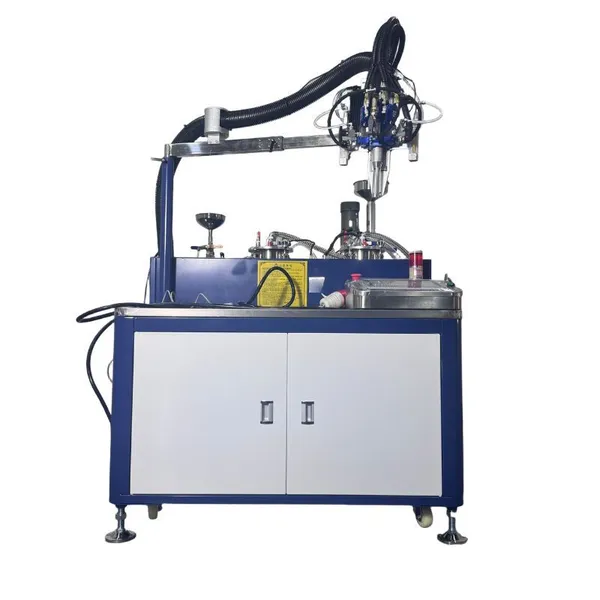

2-Part Epoxy Silicone Polyurethane Auto Glue Dispenser 3 Axis 2K AB Resin Machine China Manufacturing for Auto Potting
Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component, polyurethanes, epoxies, silicone, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component systems, and high-precision dispensing robots. We have the right equipment for adhesive, epoxy, or silicone applications to meet your needs.
D&H accepts a variety of customization, including size, number of tanks, temperature control, etc.
Please contact us for more information!

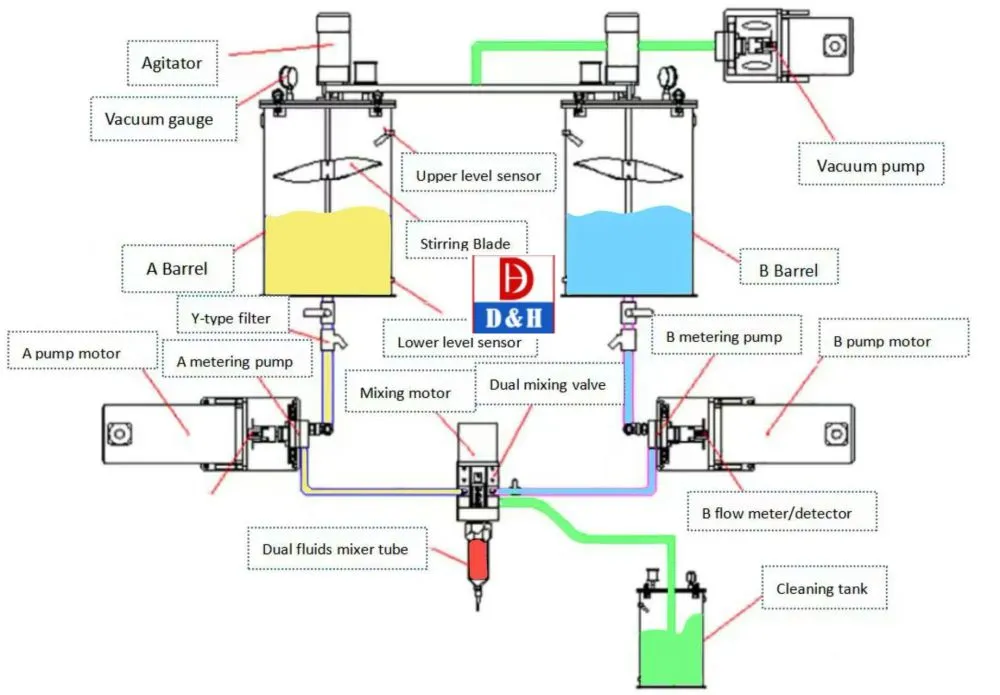

Basic Working principle ：

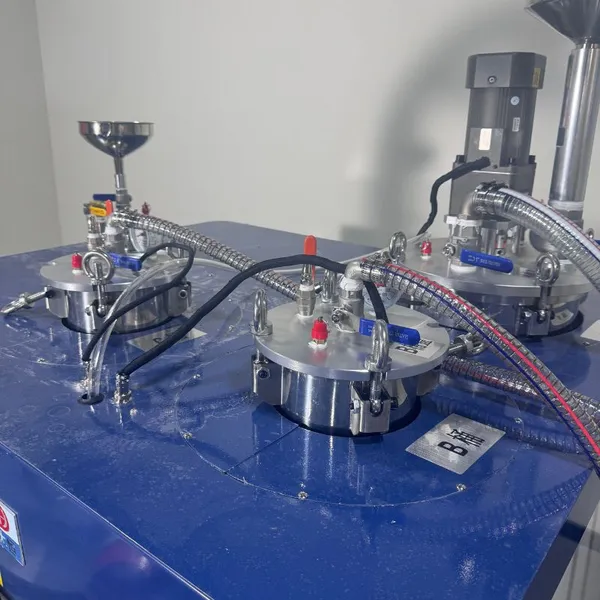

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Daheng Automation specializes in a diverse range of Fillling Dosing Potting and Dispensing systems. Regardless of the specific resin application requirements you may have, our fully equipped is capable of handling most of them.
We are proficient in dealing with various materials, including one - and two - component polyurethanes, epoxies, acrylics,silicones, as well as temperature, humidity, and UV - curing materials. These materials can span from low - to high - viscosity,be either filled or unfilled, and even include highly abrasive substances for thermal conductivity purposes.
Application range
Main application industries: automotive electronics, industrial electronics, electrical industry, new energy, aviation/aerospace/navigation, lighting,communication/power supply, power tools, electronic components, etc.
Main product applications: automotive electronics, industrial equipment, sensors, mutual inductors, transformers, ignition coils, capacitors, module power supplies, control systems, communication equipment, inverters, motors, motors, household appliances, power tools, etc.
Application resin: two-component liquids such as two-component epoxy resin, two-component polyurethane resin/two-component PU glue, two-component silicone, etc.
Main product applications: automotive electronics, industrial equipment, sensors, mutual inductors, transformers, ignition coils, capacitors, module power supplies, control systems, communication equipment, inverters, motors, motors, household appliances, power tools, etc.
Application resin: two-component liquids such as two-component epoxy resin, two-component polyurethane resin/two-component PU glue, two-component silicone, etc.
Technological Innovation Advantages

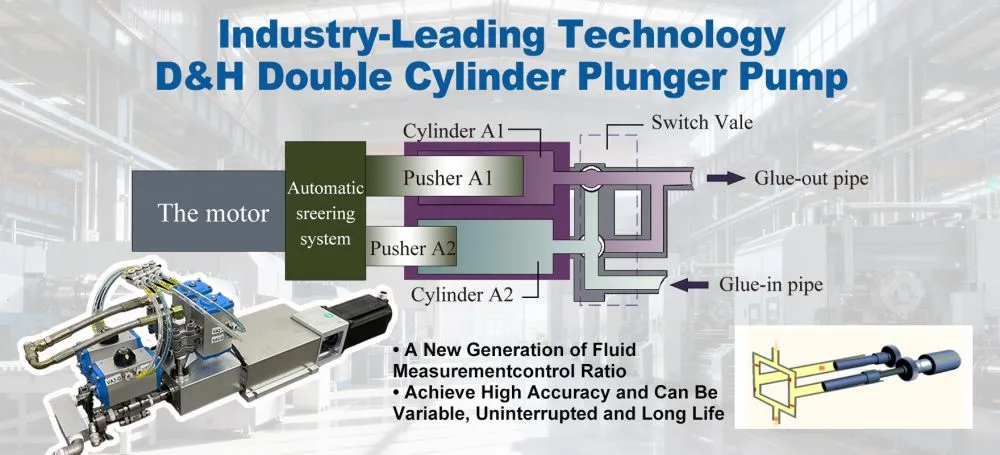

Double-Cylinder Double-Plunger Pump Technology
The pioneering "double-cylinder double-plunger pump technology" introduces a next-generation fluid metering and control system with exceptional precision, variable output, uninterrupted operation, and extended lifespan. This technology accommodates a wide range of viscosities, as well as liquid-liquid and solid-liquid mixtures, ensuring precise control over glue output and mixing ratios. This guarantees stable and consistent glue-filling quality for diverse applications.
The pioneering "double-cylinder double-plunger pump technology" introduces a next-generation fluid metering and control system with exceptional precision, variable output, uninterrupted operation, and extended lifespan. This technology accommodates a wide range of viscosities, as well as liquid-liquid and solid-liquid mixtures, ensuring precise control over glue output and mixing ratios. This guarantees stable and consistent glue-filling quality for diverse applications.
Optimized Plunger-to-Pump Sleeve Clearance:
Daheng's plunger pump is engineered with precise machining to meticulously control the clearance between the plunger and the pumpsleeve. This ensures smooth plunger movement while minimizing residual liquid in the gap, which reduces the risk of crystalformation due to leftover fluid.
Innovative Flow Channel Design:
Daheng has independently developed an advanced anti-crystallization plunger pump featuring specialized flow channels and annular grooves in the pump sleeve. The inner wall of the pump sleeve is designed with an inclined flow channel that optimizes the cleaning process. As the plunger moves, cleaning fluid is more effectively directed over the plunger surface, preventing solute adhesion and crystallization.
1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.

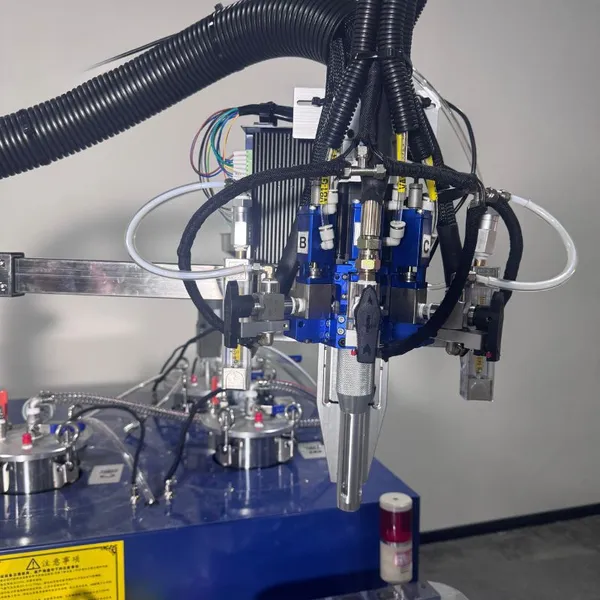

3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .

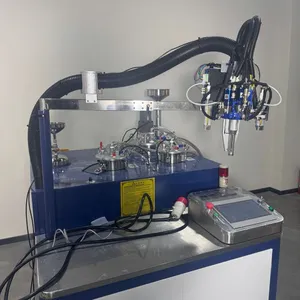

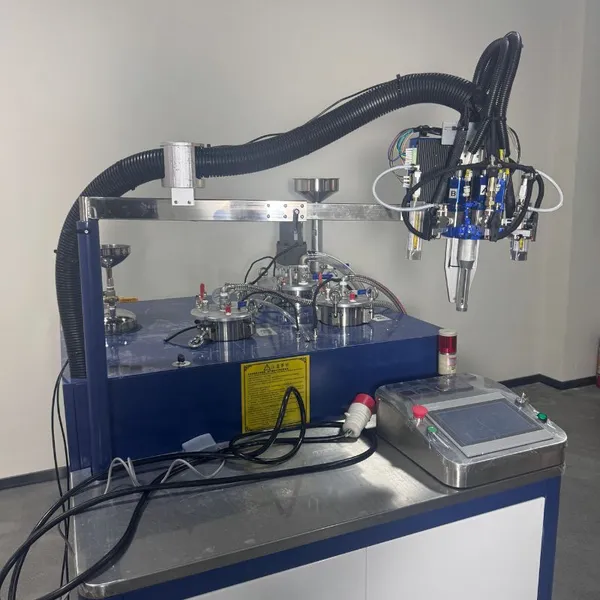

6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .
Tech Data
Certifications
About company
Guangzhou Daheng Automation Equipment Co., Ltd.
As a leading innovator in the R&D and application of adhesive metering, mixing, and dispensing equipment, D&H Automation Equipment upholds the philosophy of "Innovation Shapes the Future," focusing on high-precision liquid control system development. Its core product, the Double-Cylinder Pump Technology, excels in precise control of adhesives with varying viscosities, setting industry benchmarks through adaptability, accuracy, and durability.
Core Advantages:Technical Leadership: Holds over 60 patents and multiple industry-first products, with certifications like CE and SGS, demonstrating global technical excellence. Customized Solutions: Provides tailored equipment and services beyond standard models to meet diverse application needs. Global Reach: Headquartered in Guangzhou, with 5 branches in Suzhou, Shenzhen, Chongqing, and exports to over 60 countries, including Russia, Turkey, and Singapore. Comprehensive Support: Offers professional training and 24/7 customer service to ensure seamless client experiences.
