MMO Titanium Anode Mesh With Ruthenium-Iridium Coating and Cathode Electrolytic Plate Without Coating for Water Ionizer

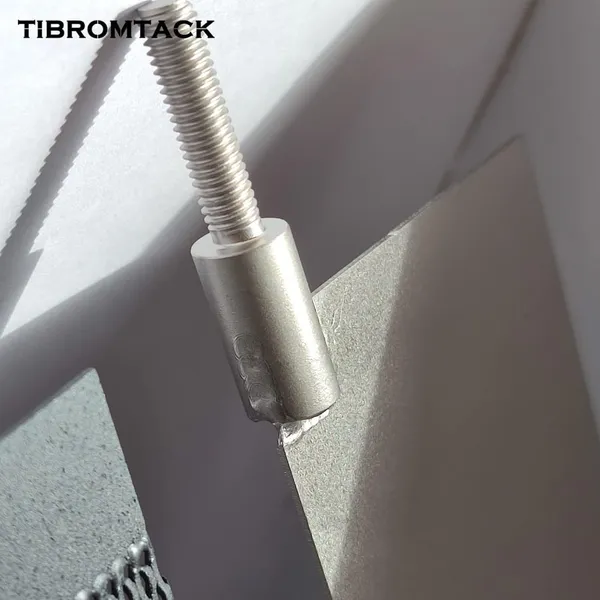

• Composition: The electrolytic plate is made of DSA type electrode, anode plated with mmo precious metal oxide electrocatalytic coating, and industrial pure titanium cathode plate, which is welded with precise welding technology to make the electrode set. It can be used in salt water, tap water, sea water and other environments.

•

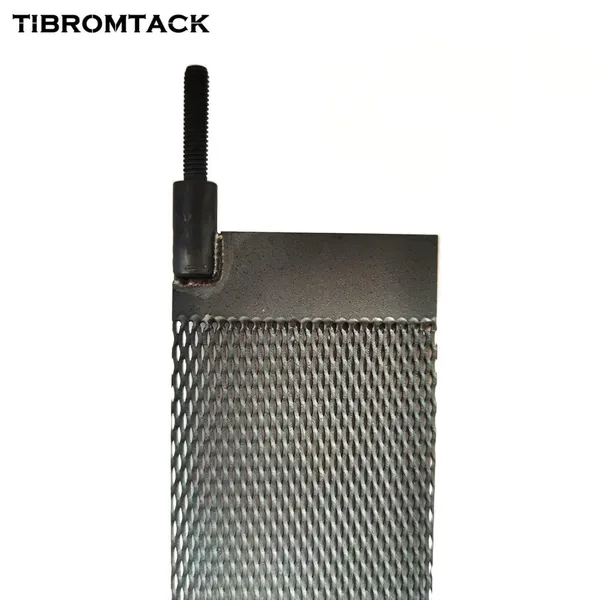

• Advantages of titanium electrode plate: Titanium mesh is a titanium plating material, using industrial pure titanium as the substrate, with Dimensional stability, good electrical conductivity. And the substrate can be recycled and recoated with MMO for reuse.

•


• Characteristics of ruthenium-iridium coating: The surface of titanium anode is coated with ruthenium-iridium by a special process, which has good electrocatalytic performance and resistance to electrolytic oxidation, and can produce better electrolytic reaction than other electrodes, which can provide better conversion efficiency. And has the characteristics of high melting point, high strength and stable electrothermal properties.

•


• Applications: Water treatment for chlor-alkali industry, chlorine production, electrolytic production of sodium hypochlorite, sewage treatment and swimming pool cleaning.

•

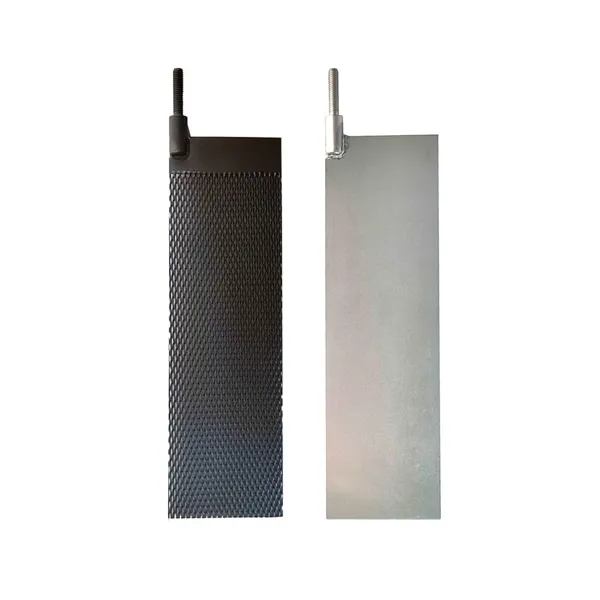

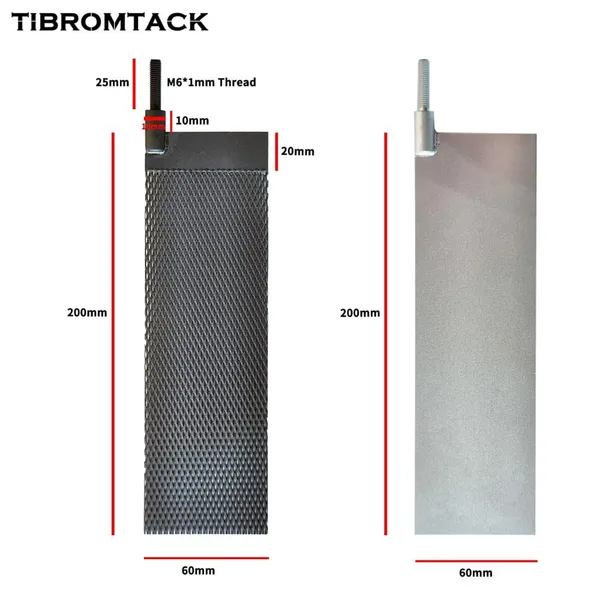

• Size: the effective area is 200*60*1mm with titanium terminal, same as the picture.
