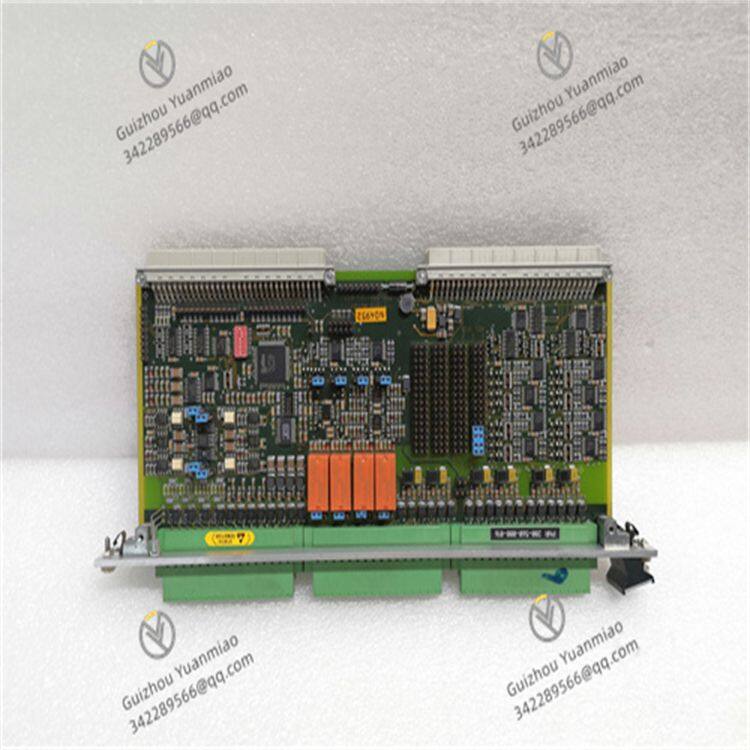

VIBRO-METER VM600 IOC4T 200-560-000-111 200-560-101-017

VIBRO-METER VM600 IOC4T 200-560-000-111 and 200-560-101-017 are compact input/output interface modules in the VM600 series, mainly used for signal interaction and control of small and medium-sized equipment in the field of industrial automation.

In Mechanical Protection Systems (MPS) and Condition Monitoring Systems (CMS), they play an important role in connecting monitoring modules and external executive components. They can transmit the monitored equipment status signals to the control system, and at the same time send control instructions to the actuators to achieve precise regulation of the equipment. They are widely used in the monitoring and control of small and medium-sized rotating machinery (such as pumps, fans, etc.) and auxiliary equipment in some industrial production lines, providing reliable interface guarantees for the stable operation of the equipment.

• Supply Voltage: Adopts 24VDC DC power supply, and the working voltage range can adapt to common voltage fluctuations in industrial sites, ensuring that the module can work normally even when the voltage is unstable.

• Power Consumption: The power consumption is extremely low. During normal operation, the energy consumption is small, and self-heating is not obvious, which helps to extend the service life of the module.

•


• Digital Input: Has 4 digital input channels, which can receive dry contact signals for collecting switch status, operation signals, etc. of external equipment, with accurate signal collection and rapid response.

• Digital Output: Equipped with 4 digital output channels, using transistor output mode with moderate output current, which can control external equipment such as small relays and indicator lights, meeting the control needs of small and medium-sized equipment.

•


• Communication Interface: Conducts data interaction with the CPU module of the VM600 series through an internal bus, ensuring efficient communication between the module and the core control part of the system.

• Communication Rate: The internal bus communication rate can meet the data transmission needs between the module and the CPU module, ensuring timely and accurate information transmission.

•


• Operating Temperature Range: The operating temperature is between -20°C and +70°C, which can operate stably within a relatively wide temperature range and adapt to different industrial environment temperature conditions.

• Relative Humidity: The relative humidity is 5%-95% (non-condensing), which can work normally in humid environments and is suitable for industrial scenarios with high humidity.

• Protection Level: The protection level is IP20, which can prevent large solid foreign objects from entering the module, and is suitable for installation in control cabinets.

•


• Dimensions: Small in size, conforming to the compact design standards of the VM600 series, occupying little space during installation, and convenient for arrangement in control cabinets with limited space.

• Installation Method: Adopts rack slot installation, which is simple and firm, can withstand certain vibration, and ensures stable connection of the module.

•


• Streamlined Interface Configuration: Equipped with 4 digital input channels and 4 digital output channels. Although the number of interfaces is small, it can accurately meet the control and monitoring needs of small and medium-sized equipment, avoid resource waste, and simplify the wiring and connection of the system.

• Reliable Signal Transmission: The input and output channels have good signal transmission performance, which can effectively reduce signal attenuation and interference, ensure that the status signals of external equipment are accurately transmitted in, and control instructions are accurately output, thus ensuring the effective monitoring of the system on the equipment.

•


• Compatibility with VM600 Series: As a member of the VM600 series, it has good compatibility with other modules of the series, can be easily integrated into the VM600 system, facilitates the construction and expansion of the system, and reduces the difficulty and cost of system integration.

• Basic Self-Diagnostic Function: It can perform simple fault detection on its own input and output channels, such as channel short circuit and open circuit, and send the fault information to the CPU module through the internal bus, which is convenient for maintenance personnel to find and handle faults in time and reduce equipment downtime.

•


• Compact Structure Design: Small in size and requiring little installation space, it is especially suitable for installation in control cabinets of small and medium-sized equipment with limited space, improving installation flexibility.

• Stable Working Performance: Made of high-quality electronic components and tested strictly, it can maintain a stable working state in industrial environments such as vibration and electromagnetic interference, providing continuous interface support for the normal operation of small and medium-sized equipment.
