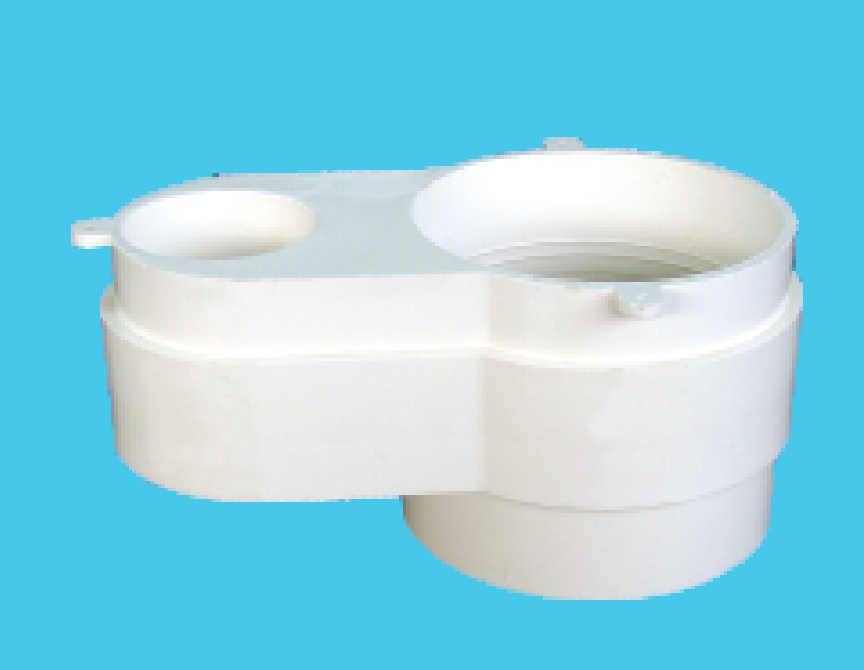

Breathable Fork Over the Wall

Among the anchor plate UPVC British standard drainage accessories, the application scope of 100×100×50 wall breathable forks mainly revolves around the ventilation and branch connection needs of building drainage systems, as follows:

• Ventilation of building drainage system: used for the ventilation branch connection of drainage risers or horizontal pipes, and the gas (such as odor and air pressure) in the drainage system is exported out of the outside through the wall pipe, balancing the air pressure in the pipeline to avoid problems such as poor drainage and water seal damage caused by negative or positive pressure.

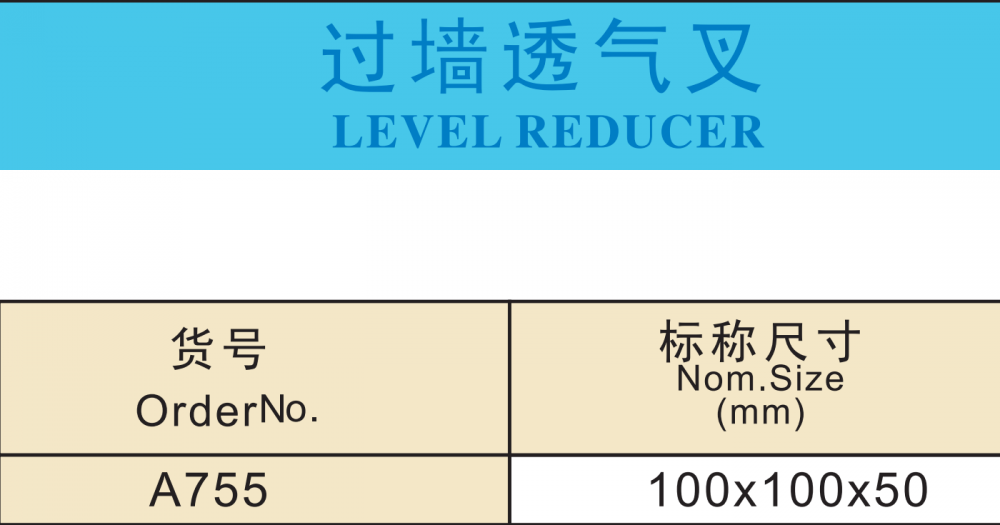

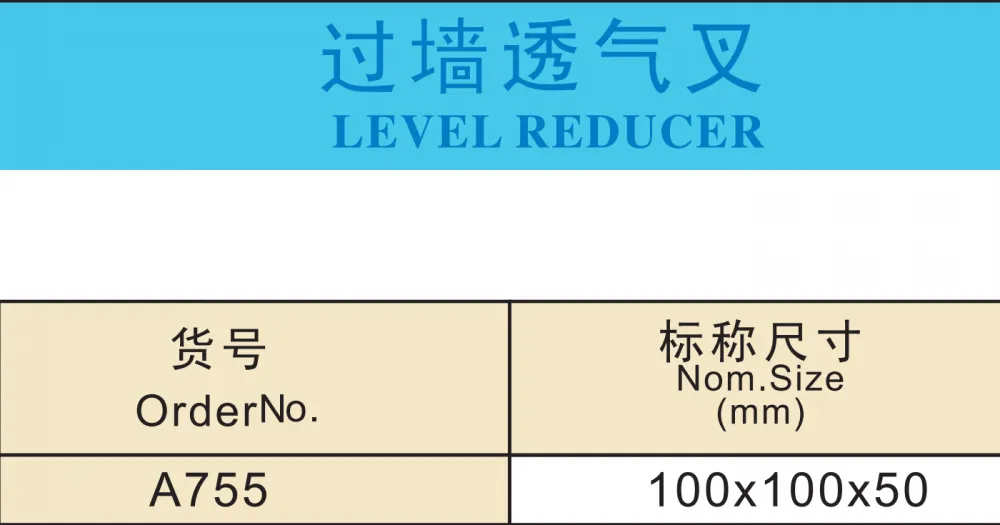

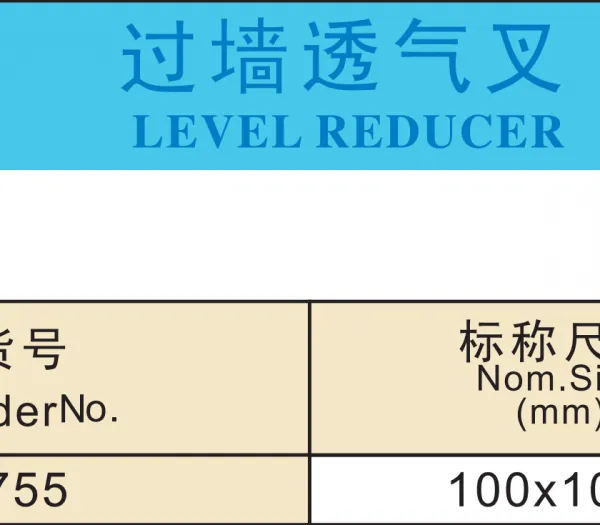

• Branch pipe diameter adaptation: Dimensions "100×100×50" indicate that the main pipe interface is 100mm (the British standard corresponds to about 4 inches), one branch interface is 100mm (can be connected to the same specification riser or horizontal pipe), and the other branch interface is 50mm (about 2 inches, can be connected to small specification ventilation branch pipe or auxiliary drainage pipe), suitable for scenarios where different pipe diameters need to be connected at the same time, such as the branch node of the drainage and ventilation system in the bathroom, kitchen, balcony and other areas.

• UPVC material scenario: Because UPVC material is corrosion-resistant, lightweight and easy to install, it is suitable for indoor and outdoor wall ventilation pipe connections in non-high-temperature and non-corrosive drainage environments such as civil buildings (residences, apartments) and commercial buildings (office buildings, shopping malls).
