Intelligent Slat Spray Anti-Corrosion Anti-Rust Test Machine With Touch Screen

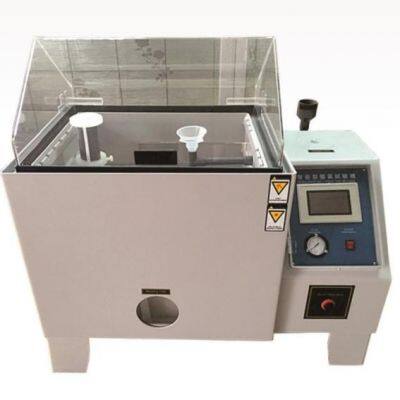

Intelligent Slat Spray Anti-Corrosion Anti-Rust Test Machine With Touch Screen photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty:
1 Year
After-sales Service:
Onsite
Transport Package:
Wooden Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Warranty 1 Year
After-sales Service Onsite
Transport Package Wooden Case
Specification 36L/50L/80L/100L/150L/250L/300L/500L
Origin China
The essential difference between the touch-screen salt spray test machine and the key-type salt spray test machine lies in the difference in the machine operation mode: from the previous button operation to the touch operation through the LCD screen.
Main features of touch screen salt spray testing machine:
1. Intelligent operation.
2. Simple operation process.
3. The whole set is made of PVC board, with advanced three-dimensional reinforcement technology inside, the structure is strong and never deformed.
4. The automatic water adding system is adopted, which has the function of automatically replenishing the water level when the water level is insufficient, and the test is not interrupted.
5. Precision glass nozzle, use 4000 hours to ensure no crystallization blockage.
6. The control instruments are all on the same machine board, which is easy to operate and clear at a glance.
7. Equipped with double over-temperature protection and insufficient water level warning to ensure safe use.
8. Imported temperature controller, digital display, PID control, high stability platinum temperature measuring probe, error 0.3
9. The laboratory adopts direct steam heating method, which can increase the temperature quickly and shorten the standby time.
10. The spray tower is equipped with a conical disperser, which has the functions of directing the mist, adjusting the amount of mist, and evenly falling mist.
11. The pressure barrel adopts Henry's law to heat and humidify and provide the humidity required by the laboratory.
Application: Salt spray testing machine is designed to test the corrosion resistance of various material surface treatments, including paint, electroplating, organic and inorganic films, anodic treatment, anti-rust oil and other anti-corrosion treatments, so as to establish the quality of the product.

Model

E-YW60

E-YW90

E-YW120

E-YW160

E-YW200

 Internal size

60*45*40cm

90*60*50cm

120*80*50cm

160*100*50cm

200*120*60cm

Outer size

107*60*118cm

141*88*128cm

190*110*140cm

230*130*140cm

270*150*150cm

Test chamber Temp

NSS ACSS 35ºC±1ºC/ CASS 50ºC±1ºC

Pressure barrel temp

NSS ACSS 47ºC±1ºC/ CASS 63ºC±1ºC

Test chamber volume

108L

270L

480L

800L

1440L

Tank capacity

15L

25L

40L

80L

110L

Compressed air pressure

1±0.01kgf/cm²

Spray volume

1-20ml/80cm²/h (collected  at least 16 hours on average)

Relaive humidity

Over 85%

PH Value

PH 6.5-7.2  3.0-3.2

Spray method

Programmable spray/ continuous spray
