Material
Other, Global universal model
Condition
Other, Global universal model
Task
Other, Global universal model
Mathematical Model
Other, Global universal model
Signal
Other, Global universal model
Customized
Non-Customized
Structure
Other, Global universal model
power supply
24V DC
Operating Temperature
-40℃ to +85℃
Humidity
0%-95% (non-condensing)
I. Product Overview

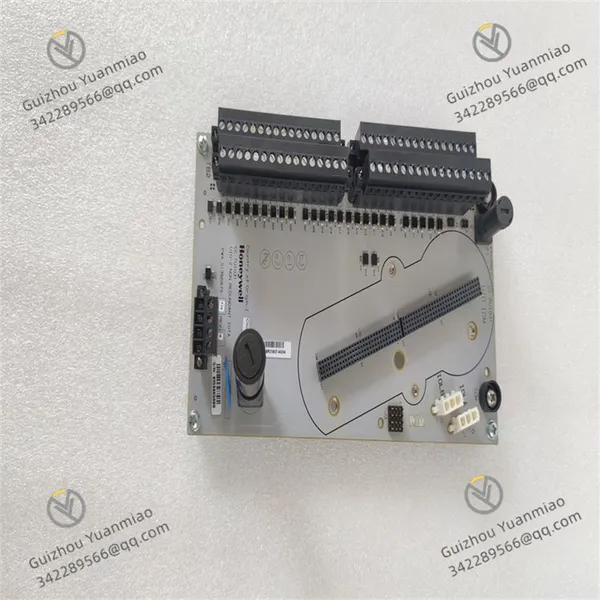

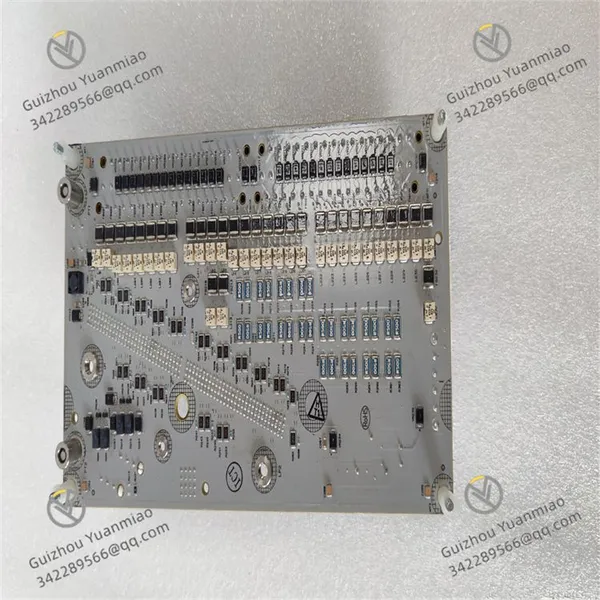

Honeywell CC-TUIO31 is a widely used input-output module in the field of industrial automation, belonging to Honeywell's advanced automation control system product line. This module is specially designed to meet the stringent requirements for precise monitoring and control of equipment in industrial environments. It can efficiently and stably realize the functions of input collection and output control of digital and analog signals, providing key support for the stable operation of various industrial equipment and systems. Relying on Honeywell's profound technical accumulation and rich experience in the field of industrial automation, CC-TUIO31, with its excellent performance, has become an important component for many industrial enterprises to build reliable automation control systems. It can be seamlessly integrated into various industrial automation architectures. Whether it is the complex control system of large industrial production lines or the basic automation needs of small industrial facilities, CC-TUIO31 can be accurately adapted, helping enterprises improve production efficiency, optimize operating costs, and ensure production safety.
II. Technical Parameters
(I) Electrical Parameters
Input-Output Signal Types and Channel Configuration
Analog Input: Equipped with 8 analog input channels and 16-bit high resolution. This means that the module can collect various analog signals extremely accurately, such as voltage signals output by temperature sensors and current signals output by pressure transmitters. The high resolution ensures the sensitive capture of subtle changes in signals, laying a solid foundation for precise monitoring and control in industrial production processes. For example, in chemical production, for the high-precision measurement of parameters such as temperature and pressure in the reactor, the analog input function of CC-TUIO31 can accurately obtain data, providing a reliable basis for the stable control of the production process.
Digital Input: There are 16 digital input channels, all of which adopt optical isolation technology. Optical isolation effectively isolates external electrical interference, ensuring the purity and accuracy of digital input signals. In industrial sites, digital input signals are often used to detect the switch status of equipment, such as the start-stop status of motors and the open-close status of valves. Through the digital input channels of CC-TUIO31, the control system can obtain these equipment status information in real-time and accurately, and make corresponding control decisions in a timely manner.
Digital Output: Has 8 digital output channels with an output voltage of 24V DC. This output capability can directly drive many common industrial executive equipment, such as 24V DC relays and small solenoid valves. In automated production lines, the digital output channels are used to control the pull-in and release of relays, thereby realizing the start-stop control of motors, conveyors and other equipment, ensuring the orderly operation of the production line.
Input Voltage Range
It supports a wide input voltage range of 10-30V DC. This feature enables the module to adapt to the power supply conditions in different industrial scenarios. Whether it is an old industrial facility with certain fluctuations in power supply voltage or a modern factory using a new power supply system, CC-TUIO31 can work stably, greatly improving the versatility and applicability of the module and reducing the risk of equipment failure caused by power supply problems.
Communication Protocol Support
It supports a variety of mainstream industrial communication protocols, including Modbus RTU, Modbus TCP/IP, and Ethernet/IP. The support of rich communication protocols enables CC-TUIO31 to achieve efficient and stable data interaction with upper computer control systems and other industrial equipment of different brands and types. For example, in an industrial automation system based on PLC, through the Modbus protocol, CC-TUIO31 can quickly and accurately upload the collected input signal data to the PLC, and at the same time receive the output control instructions from the PLC, realizing remote monitoring and precise control, and meeting the strict requirements of industrial automation systems for real-time and reliable communication.
(II) Physical ParametersDimension Specifications
Adopts a compact design concept with an overall compact size. Its external dimensions have been carefully optimized to adapt to the installation needs of various industrial control cabinets. The installation dimensions of the module follow industry universal standards, such as the standard DIN rail installation dimensions, enabling it to be conveniently clamped on common industrial rails. This standardized installation design greatly saves installation space and time costs and improves system integration efficiency. In industrial control cabinets with limited space, CC-TUIO31 can be reasonably arranged to coexist harmoniously with other equipment without occupying too much valuable space.
Weight
The module is relatively light in weight, approximately [X]g (the specific weight needs to be determined according to the actual situation of the product). The lightweight design not only facilitates transportation and handling, reducing costs and risks during transportation, but also reduces the bearing pressure on the installation structure inside the control cabinet. In the long-term operation process, it helps to ensure that the stability of the installation is not affected, and also provides convenience for later maintenance, module replacement and other operations, enabling maintenance personnel to carry out related operations more easily and reducing operational inconvenience caused by the weight of the module.
(III) Environmental Parameters
Operating Temperature Range
It has an extremely wide operating temperature adaptation range and can operate stably in extreme ambient temperatures from -40°C to +85°C. Whether it is a cold polar industrial facility or a hot desert chemical plant, as long as the ambient temperature is within this range, CC-TUIO31 can continuously and stably perform signal collection and output control, maintaining a normal working state. This feature strongly ensures the continuity of industrial production under various harsh climatic conditions, avoids equipment failures affecting production due to temperature problems, and saves industrial enterprises a lot of economic losses caused by equipment shutdown.
Humidity Range
It can work reliably in an environment with a relative humidity of 5%-95% (non-condensing). The electronic components inside the module have undergone special moisture-proof treatment, which can effectively resist the erosion of humid air and prevent faults such as short circuits and oxidation caused by humidity problems. In humid coastal factories, underground mines and other environments, CC-TUIO31 can still operate stably for a long time, extending the service life of the equipment, reducing maintenance costs, ensuring the reliability of the industrial automation system in different humidity environments, and creating a stable production environment for enterprises.
Vibration and Shock Resistance
Vibration Resistance: It can withstand vibration with 5g peak-to-peak value and a frequency range of 10 to 2000Hz. In industrial sites, the operation of large mechanical equipment and vehicle transportation often cause vibration. In such a vibration environment, the internal circuits and components of CC-TUIO31 will not loosen or be damaged due to vibration, ensuring the stability and reliability of signal collection and output. For example, in a metallurgical factory, the strong vibration generated by the operation of large smelting equipment is a great test for the stability of the equipment, and CC-TUIO31 can work stably in this harsh environment with its excellent vibration resistance, maintaining the normal operation of the industrial automation system.
Shock Resistance: It can resist a shock of 50g with a duration of 11ms. Even in case of accidental mechanical shocks, such as equipment collision and falling, the module can maintain normal working state to the greatest extent, reducing data loss or output abnormalities caused by the shock. In some industrial scenarios with the risk of mechanical collision, such as logistics and warehousing automation equipment, the high shock resistance of CC-TUIO31 ensures the stable operation of the system, reduces the risk of production interruption, and provides a strong guarantee for the normal operation of enterprises.
III. Functional Features
(I) Precise Signal Acquisition and Processing Capability
Analog Signal Processing: For analog input signals, CC-TUIO31 has high-precision signal conditioning and digital conversion functions. Through the internal advanced analog front-end circuit, it can perform preprocessing such as filtering and amplification on the input analog signals, removing noise interference in the signals and improving signal quality. Then, a 16-bit analog-to-digital converter is used to accurately convert the analog signals into digital signals, providing an accurate data basis for subsequent data processing and analysis. In the pharmaceutical industry with high requirements for analog parameters such as temperature and pressure, CC-TUIO31 can accurately collect and process relevant signals, ensuring quality control in the drug production process.
Digital Signal Processing: In terms of digital input and output, the module can quickly and accurately identify and respond to changes in digital signals. For digital input signals, through optical isolation technology and high-speed signal processing circuits, it can quickly capture changes in equipment status and convert them into digital quantities for transmission to the control system. In digital output, it strictly follows the instructions of the control system to stably output high-level or low-level signals, driving the actuator to act accurately. For example, in an automated assembly line, by controlling the equipment actions of each station through digital signals, CC-TUIO31 can ensure the timeliness and accuracy of equipment actions, improving production efficiency and product quality.
(II) Strong Anti-Interference and Signal Isolation Capability
Electrical Isolation Protection: As mentioned earlier, the digital input channels adopt optical isolation technology, building a strong electrical isolation barrier between the input side and the internal circuit. This design can effectively block the damage of on-site strong electrical signals and surge currents to the module, and prevent signal crosstalk between different channels. In industrial sites, there are many electrical interference sources, such as strong electromagnetic interference generated by frequency converters, electric welders and other equipment. The electrical isolation protection mechanism of CC-TUIO31 ensures the purity and independence of the input signal of each channel, avoids equipment misoperation caused by interference, and improves the stability and reliability of the industrial automation control system.
Anti-Interference Circuit Design: The module integrates advanced anti-interference circuits. Aiming at common electromagnetic interference in industrial sites, such as high-frequency interference and power frequency interference, it adopts multiple technical means such as filtering, shielding and grounding for comprehensive suppression. By setting filter circuits at key parts such as power input terminals and signal transmission lines, it can effectively filter out clutter interference signals; using metal shielding covers to shield the internal circuits of the module to reduce the intrusion of external electromagnetic interference; reasonable grounding design further ensures that interference signals can be imported into the ground in time to avoid affecting the normal operation of the module. These anti-interference measures enable CC-TUIO31 to work stably in complex electromagnetic environments, providing reliable signal collection and control services for industrial production.
(III) Convenient Communication and System Integration
Communication Protocol Compatibility: The support for multiple industrial communication protocols, especially common protocols such as Modbus, enables CC-TUIO31 to seamlessly connect with upper computer control systems and other industrial equipment of different brands and types. When building an industrial automation control system, users can flexibly choose the communication protocol matching the existing system according to actual needs, easily realizing data sharing and collaborative work. For example, in an industrial automation production line composed of equipment from different manufacturers, CC-TUIO31 can communicate with PLC, human-machine interface (HMI) and other equipment through the Modbus protocol, breaking the communication barriers between equipment, improving the flexibility and openness of system integration, and meeting diversified industrial application needs.
Advantages of Integration with Honeywell Systems: As part of Honeywell's automation control system product line, CC-TUIO31 has natural compatibility and collaborative working ability with other Honeywell equipment (such as controllers, sensors, etc.). In systems such as Honeywell Experion PKS, this module can closely cooperate with other components to achieve more efficient and intelligent industrial automation control. Through a unified system management platform, users can centrally configure, monitor and maintain the entire system, improving system operation efficiency and reducing operation and maintenance costs. For example, in a large chemical project using Honeywell control systems, CC-TUIO31 works together with Honeywell's controllers and sensors to realize comprehensive monitoring and precise control of the chemical production process, ensuring the safe and stable operation of the production process.
(IV) Perfect Diagnosis and Maintenance Functions
Real-Time Status Monitoring and Fault Diagnosis: The module has a complete self-diagnosis function, which can monitor its own working status in real-time, including power status, communication status, signal status of each input and output channel, etc. Once an abnormality is found, such as channel failure, communication interruption, power supply abnormality, etc., it can immediately generate detailed fault information and upload it to the control system through the communication interface. At the same time, the LED indicators on the module will intuitively feedback the fault type with a specific flashing mode, facilitating maintenance personnel to quickly locate and troubleshoot problems. For example, when a fault occurs in an analog input channel, the corresponding LED indicator will flash a specific number of times, prompting maintenance personnel that there is a problem with the channel, thus greatly shortening the fault handling time and reducing losses caused by production interruption.
Fault Early Warning and Prevention: By continuously analyzing the module's operation data, CC-TUIO31 can predict potential fault risks in advance. For example, when it is detected that the input signal of a certain channel fluctuates abnormally, the output current exceeds the normal range, etc., the system can send an early warning signal, prompting maintenance personnel to check the relevant lines, equipment or the module itself in time, take maintenance measures in advance, and avoid equipment shutdown caused by further deterioration of the fault. In equipment maintenance management, this fault early warning function can help enterprises realize preventive maintenance, reasonably arrange maintenance plans, reduce equipment failure rates, and improve the reliability and availability of industrial automation systems.
