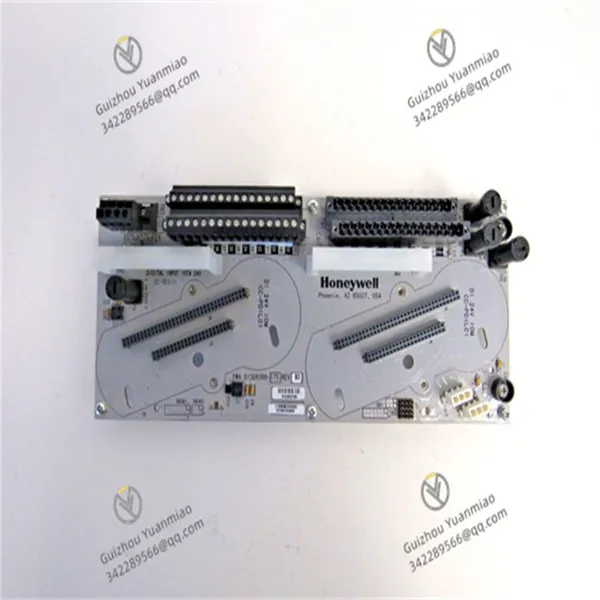

Honewell CC-TDIL11 Digital Input Module

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

power supply 24V DC

Operating Temperature -40℃ to +70℃

Humidity 0%-95% (non-condensing)

I. Product Overview

Honeywell CC-TDIL11 is a high-performance digital input module belonging to Honeywell's Experion process control system series, specially designed for digital signal acquisition and processing in industrial automation environments. In complex industrial control processes, it undertakes the important task of accurately collecting various on-site digital signals (such as equipment switch status, alarm signals, etc.) and transmitting them to the control system, serving as a key bridge connecting on-site equipment and the upper-level control system. With Honeywell's leading technology in the industrial automation field and strict quality control, the CC-TDIL11 features high reliability, strong anti-interference capability, and excellent environmental adaptability. It can operate stably in various harsh industrial scenarios, providing powerful data support for precise control and efficient management of industrial production, and is widely used in chemical, electric power, metallurgy, water treatment and many other industries.

II. Technical Parameters

(I) Electrical Parameters

Operating Voltage: Supports a wide voltage input range of 12-48V DC, which can flexibly adapt to the power supply conditions of different industrial sites. Whether it is a large industrial control system with centralized power supply or a small control unit with local power supply, it can stably obtain power to ensure the continuous and normal operation of the module, greatly enhancing the versatility and application range of the equipment.
Input Signal Type: Mainly receives digital input signals from dry contacts or wet contacts, and can be connected to various on-site equipment with switching output (such as limit switches, pressure switches, temperature switches, etc.). Dry contact input does not require an external power supply and only transmits signals through the on-off of contacts; wet contact input requires an external specific voltage. The module can accurately identify these two types of signals to meet diversified signal acquisition needs.
Number of Input Channels: Usually equipped with multiple independent input channels (the specific number varies slightly depending on the model configuration, commonly 16 channels), which can collect digital signals from multiple on-site devices at the same time. Each channel is isolated from each other to avoid signal interference between channels, ensuring the independence and accuracy of signal acquisition, and can efficiently cope with scenarios where multiple devices need to be monitored in industrial sites.
Input Response Time: Has fast signal response capability. The time from signal input to module recognition and processing is extremely short, generally at the millisecond level (the specific value varies depending on the signal type and parameter settings). This feature ensures the timely capture of sudden signals in industrial sites (such as equipment emergency shutdown signals, abnormal alarm signals, etc.), providing a guarantee for the rapid decision-making and response of the control system.

(II) Physical Parameters

Dimension Specifications: Adopts a compact design, and the overall size conforms to industrial standard module specifications, with a length of approximately a specific value (the specific size varies slightly depending on the series design, usually suitable for standard cabinet installation). This standardized size allows it to be easily installed on standard guide rails or racks in industrial control cabinets, saving installation space, and facilitating integration with other modules to form a complete control system architecture, making later maintenance and expansion convenient.
Weight: Relatively light, approximately 300-400g (the specific weight fluctuates slightly depending on the configuration). The light weight not only reduces transportation costs and difficulties but also reduces the pressure on the supporting structure during installation, making the installation operation more convenient and labor-saving, and improving the efficiency of engineering construction.

(III) Environmental Parameters

Operating Temperature Range: Has a wide working temperature adaptability and can operate stably in the environment of -40°C to +70°C. Whether in cold northern industrial plants or high-temperature metallurgical workshops, as long as the temperature is within this range, the module can maintain a normal working state, ensuring accurate acquisition and transmission of digital signals, and guaranteeing the continuity of industrial production.
Humidity Range: Can work reliably in an environment with a relative humidity of 0%-95% (non-condensing). In factories in humid coastal areas, underground mines, and other places with high humidity, the electronic components inside the module have undergone special moisture-proof treatment, which can effectively resist the erosion of humid air, prevent short circuits, oxidation, and other faults caused by humidity problems, extend the service life of the module, and reduce equipment maintenance costs.
Protection Level: Although the specific protection level is not clearly marked, judging from its design and application scenarios, it has certain dust-proof and moisture-proof capabilities. In the common dust and water vapor environments of industrial sites, it can protect internal circuits and components from pollution, reduce the impact of the external environment on the module's performance, and ensure the long-term stable operation of the module.

III. Functional Features

(I) Efficient Signal Acquisition and Processing

Multi-Channel Parallel Acquisition: With multiple independent input channels, the CC-TDIL11 can simultaneously perform parallel acquisition of digital signals from multiple on-site devices without waiting for the completion of processing by a single channel, greatly improving the efficiency of signal acquisition. This multi-channel design is particularly suitable for scenarios where a large number of scattered devices need to be monitored in industrial sites, such as the monitoring of switch states of numerous sensors in automated production lines, which can quickly summarize various signals and transmit them to the control system.
Signal Filtering and Shaping: Built-in advanced signal filtering and shaping circuits can process the collected digital signals, effectively filtering out noise signals such as electromagnetic interference and pulse interference common in industrial sites, and shaping irregular signals into standard digital pulse signals. This function ensures that the signals transmitted to the control system are accurate and reliable, avoiding misjudgment of the control system caused by interference signals, and improving the accuracy and stability of industrial control.

(II) Strong Anti-Interference Capability

Channel Isolation Technology: Electrical isolation design is adopted between each input channel, and the isolation voltage reaches the industrial standard level (the specific value depends on the model). This isolation technology can effectively prevent signal interference between different channels, and also avoid damage to the internal circuits of the module by high-voltage signals from on-site equipment, improving the anti-interference capability and safety of the module in complex electromagnetic environments.
Electromagnetic Compatibility (EMC) Optimization: The module has undergone strict electromagnetic compatibility design and testing, with good EMC performance, and can resist strong electromagnetic radiation and electromagnetic pulse interference in industrial environments. Whether it is electromagnetic interference generated by the start and stop of nearby high-power equipment or electromagnetic pulses caused by lightning induction, it will not significantly affect the normal operation of the module, ensuring the continuity and accuracy of signal acquisition.

(III) Reliable Diagnosis and Alarm Functions

Channel Fault Diagnosis: Equipped with perfect channel fault diagnosis capability, it can monitor the working status of each input channel in real-time. When a signal abnormality occurs in a certain channel (such as continuous high level, continuous low level, abnormal signal jitter, etc.), the module will immediately identify and record the fault information, and inform the control system through a specific alarm signal. Maintenance personnel can quickly locate the faulty channel and possible causes of the fault according to the fault information, shortening the fault troubleshooting time and improving equipment maintenance efficiency.
Module Self-Diagnosis: It can monitor its own key components (such as power modules, communication interfaces, etc.) in real-time. Once a component fault or abnormal working state is found, it will promptly send a self-diagnosis alarm signal. This self-diagnosis function helps to detect potential problems of the module in advance, facilitating maintenance personnel to repair or replace the module before it completely fails, and avoiding industrial production interruption caused by sudden module failure.

(IV) Good Compatibility and Integratability

In-depth Integration with Experion System: As a member of the Experion series, the CC-TDIL11 has excellent compatibility with components such as controllers and human-machine interfaces of the system, and can be seamlessly integrated into the system architecture. The module adopts the unified communication protocol and data format of the system, and can realize rapid integration with the system without additional adaptation software or hardware, simplifying the construction process of the control system and reducing the difficulty and cost of system integration.
Support for Standard Communication Interfaces: In addition to being compatible with its own system, it also supports some general industrial communication interfaces and protocols (such as Modbus, etc.), facilitating data interaction with industrial control equipment and data acquisition terminals of other brands. This open design enables the CC-TDIL11 to flexibly integrate into mixed-brand industrial control systems, improving the flexibility and scalability of system integration.

(V) Convenient Installation and Maintenance

Modular Plug-in Design: Adopts a modular plug-in structure, making the installation and replacement process simple and fast. The module can be directly clamped on the standard guide rail, and the terminal blocks adopt a plug-in design. No special tools are needed when connecting or disconnecting cables, which greatly shortens the installation and maintenance time. When the module needs to be replaced quickly in industrial sites, it can effectively reduce the system downtime and improve the continuity of industrial production.
Intuitive Status Indication: Equipped with clear LED status indicators, including power indicators, running indicators, channel status indicators, etc. Indicators with different colors and flashing modes can intuitively reflect the working status of the module, such as whether the power supply is normal, whether the module is in operation, whether the signals of each channel are normal, etc. By observing the indicators, operators can quickly understand the operation status of the module, facilitating daily inspections and preliminary fault judgment.
