Home > Products > Roll Paper Sheet Cutter Machine, Duplex/Paperboard/Cardboard Paper Sheeting Machine Rotary Knife Double Reel Cross Cutting Machine
Roll Paper Sheet Cutter Machine, Duplex/Paperboard/Cardboard Paper Sheeting Machine Rotary Knife Double Reel Cross Cutting Machine
- NING BO
- T/T L/C
- 60 days
Product Details
| Type | High-Speed Slitting Machine | Application | Machinery&Hardware | |
| Classification | Other, double blade cutter | Packaging | Cartons | |
| Warranty | 1 years | Packaging Material | Wood | |
| After-sales Service | Provide 24-Hour Online After-Sales Service | Work Method | Round Knife Cutting | |
| Applicable Process | Process Materials | Suitable Substrates | Paper | |
| Structure | Frame Part | Transport Package | Pallet | |
| Specification | 1500 / 1700 / 1900 | Trademark | HOUSENG | |
| Origin | made in china |
Product Description
1.HSC-S series double knife sheeter adopts advanced design of synchronic rotary which are driven directly by high power AC servo motor with high accuracy and clean cut.
2.And using our patent with embedded cutting head design,that its cutting cross profile is straight and not pulling out fibers, this is key point to eliminate hairs of paper. Widely used for cutting cardboard,coated paper ,Kraft paper,culture paper ,art paper, duplex,packaging paper etc up to 1000gsm.
3.HOUSENG machine is dedicated to produce sheet cutter , Products are well used and verified by almost all top cosmetics and pharmaceutical packaging customers, and promise their is no risk for long term running of your products in future. Consider this kind of machine to improve quality and save cost, To improve efficiency .
Application:
Cutting reel (roll paper) into sheets
Technicals:
According to HOUSENG MACHINE, are mainly used for paper cutting in Paper Mill, Printing House and etc.
Mainly process including: Unwinding-Feeding-Cutting-Conveying-Collecting .

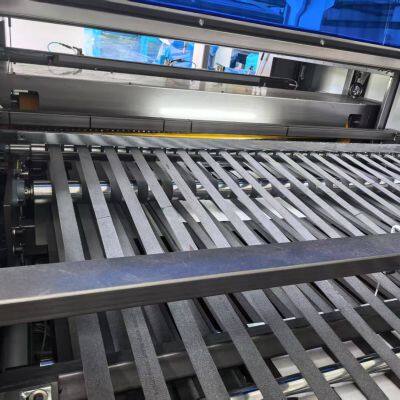

| Cutting Unit The double KNIFE cutting unit has a synchronic rotary cutting knife like scissors on the material to make a smooth and accurate cutting for paper from 150gsm and up to 1000gsm.The knife roller is using the most powerful driver from UK CT. Precision rotary sheeter groove is processed by imported advance processing center with high accuracy and stability, High quality gear box ,using no clearance design gear. which guarantees the stability of the tool body during high-speed operation, completely solve the problem of scratches and light spots, after cutting the edge is neat and smooth, clean cut. | |
| Double Arm Unwind stand with web tension controls and pneumatic brake units. Adopt Italian RE control system and pneumatic components are adopted to guarantee the stable operation of the brake control system and the accuracy of every aerodynamic action. |
| Three sets of MAXCESS pneumatic slitting knife ensure stable and clean slitting . High rigid tool post article can be applied to 400cut/min speed environment, improve the production efficiency and ensure the material quality stability. | |

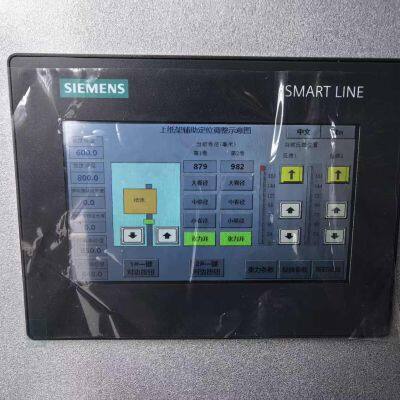

| Electric control part Adopt German imports of Siemens PLC and UK OF CT servo drive control system, make the operation more convenient, automation, cutting length, number and the total number of finished products, etc., can be directly in touch screen input. High efficiency and energy saving of high power CT servo drive rotary knife shaft, and cooperate with the energy storage tank, effectively reduce electricity consumption, improve the efficiency, reduce the production cost. |

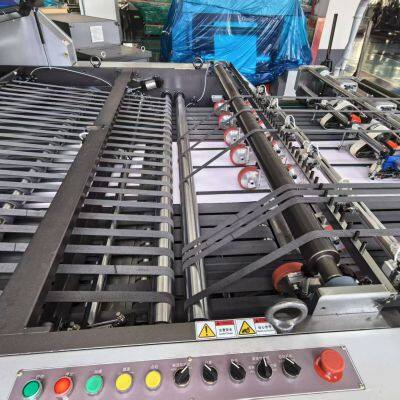

| Transportation parts Patent device-A precision structure can adjust the synchronous deceleration wheel, easy to operate, it is effective to protect surface of paper, so there will be no scratching on surface, and also will not have the facula whenever speed is high or low . | |

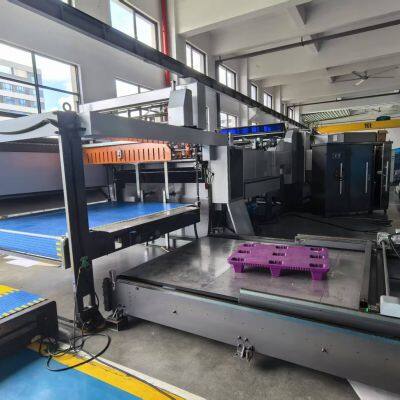

| The delivery section using automatic set paper equipment Lift stacked set paper , the paper stack to a considerable height, |
| Reject Gate In the end of the first conveyor belt is placed a sheet rejecting device, which can be inserted by the operator in the starting phase for the first sheets. The start of rejecting device is manual by pushing the ON.OFF button to act the air cylinder of reject gate. | |
| The new Anti curvature device (2 set de-curl ) Effectively remove the curl of the roll to make the paper more flat, more conducive the paper roll tension stability. |
| ZHEJIANG HAOSHENG INTELLIGENT EQUIPMENT CO.,LTD. HOUSENG is a leading company in china to produce sell sheet cutting machine /reel to sheet paper ,HOUSENG on extensive experience and fast develop speed in this field. Start from 2001, high performance models have evolved thanks to the commitment and know-how of our employees, intensive research and development, and the steady exchange with our customers on their needs and ideas . | |
