Tower Crane Electric Cable YCW 3×25+2×10
Negotiable
MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other
Type:
Insulating Tape
Certification:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
15 days
Related Products
Material
Other
Type
Insulating Tape
Certification
Other
Warranty
6month
Technics
Other
Application
Machine Parts
Surface Treatment
Yes
Trademark
BQ
Origin
China
Product Attributes
Model No.: YCW 3×95+1×35
Type: Insulated
Conductor Type: Solid
Application: Overhead
Conductor Material: Copper
Sheath Material: PVC
Insulation Material: Rubber
Material Shape: Round Wire
Range of Application: Cold-Resistant
Sheath: PVC
Number Of Core: 4 Cores
Environment Temperature: -40~50℃
Cores×Cross Section: 3×35+1×10 Mm²
Continuous Load Current: 98/43 A
Mean Outside Diameter: 29.9-37.8 Mm
Rated Voltage: 450/750 V
Standard: GB/T 5013-2008
Product Description

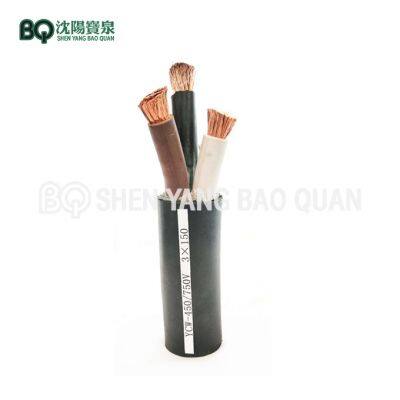

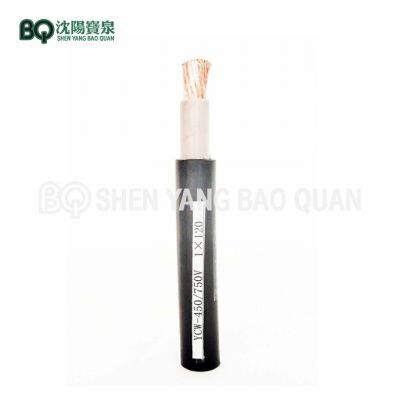

Tower Crane Power Cable YCW 3×95+1×35
Characteristics of YCW Type Electric Cable1. Tower Crane Cable is apply to AC 450/750V rated voltage.
2. The long-term operating temperature of cable conductors is not higher than 60℃.
3. The temperature of using environment is -40-50℃.
4. The Insulated Power Cable has weather resistance and certain oil resistance, suitable for outdoor and oil contact occasions.
5. Finished cable test: under 2500 V voltage, the cable can last 5 min without breakdown.
Parameter of Tower Crane Electric Cable
|
Cores×Cross section
mm²
|
Mean Outside Diameter
mm
|
Cores×Cross section
mm²
|
Mean Outside Diameter
mm
|
||
| lower limit | upper limit | lower limit | upper limit | ||
| 1×120 | 22.8 | 28.6 | 3×25+1×10 | 27.3 | 34.5 |
| 1×150 | 25.2 | 31.4 | 3×35+1×10 | 29.9 | 37.8 |
| 1×185 | 27.6 | 34.4 | 3×50+1×16 | 34.8 | 43.9 |
| 2×70 | 35.8 | 45.1 | 3×70+1×25 | 39.8 | 50.1 |
| 2×95 | 40.2 | 51 | 3×95+1×35 | 44.8 | 56.4 |
| 3×95 | 43.3 | 54 | 3×120+1×35 | 48.5 | 61 |
| 3×120 | 47.3 | 60 | 3×25+2×10 | 28.6 | 36.1 |
| 3×150 | 52 | 66 | 3×35+2×10 | 31 | 39.1 |
| 4×50 | 37.7 | 47.5 | 3×50+2×16 | 36.1 | 45.5 |
| 4×70 | 42.7 | 54 | 3×70+2×25 | 41.7 | 52.5 |
| 4×95 | 48.4 | 61 | 4×25+1×10 | 30.5 | 38.5 |
| 4×120 | 53 | 66 | 4×35+1×10 | 33.8 | 42.6 |
| 5×25 | 32 | 40.4 | 4×50+1×16 | 39.2 | 49.4 |
| 5×35 | 33.4 | 42.1 | 4×70+1×25 | 44.9 | 56.4 |
| 5×50 | 38.5 | 48.5 | 4×95+1×35 | 50.7 | 63.7 |
Other available Tower Crane Spare Parts : Steel Structure , Anti-Collision System Parts, Wire Rope and so on.
