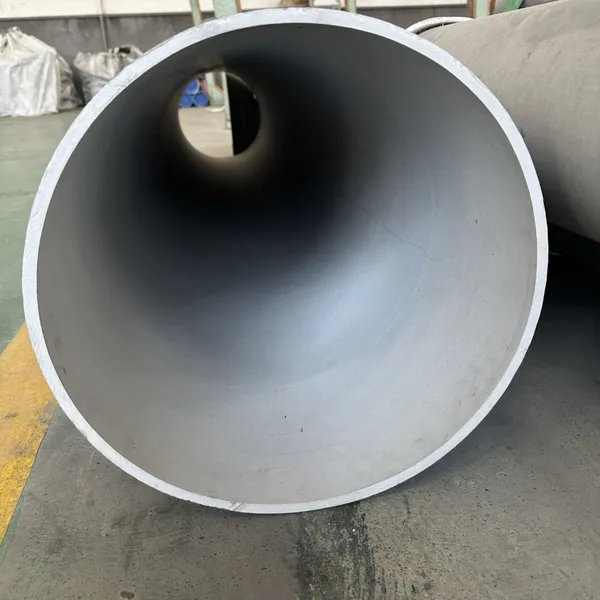

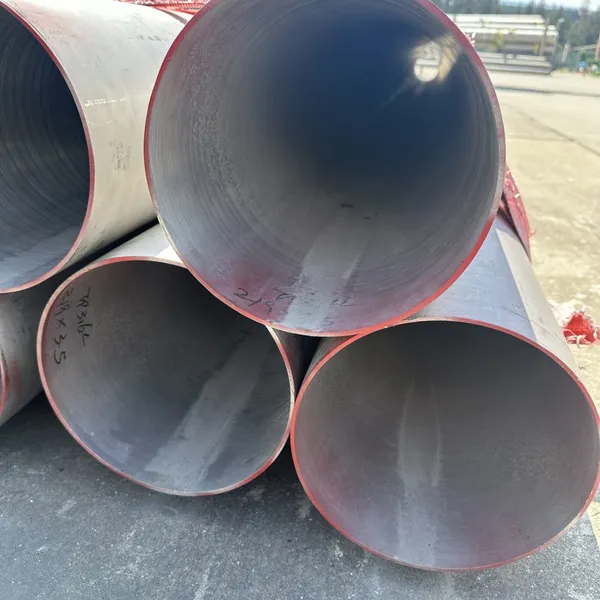

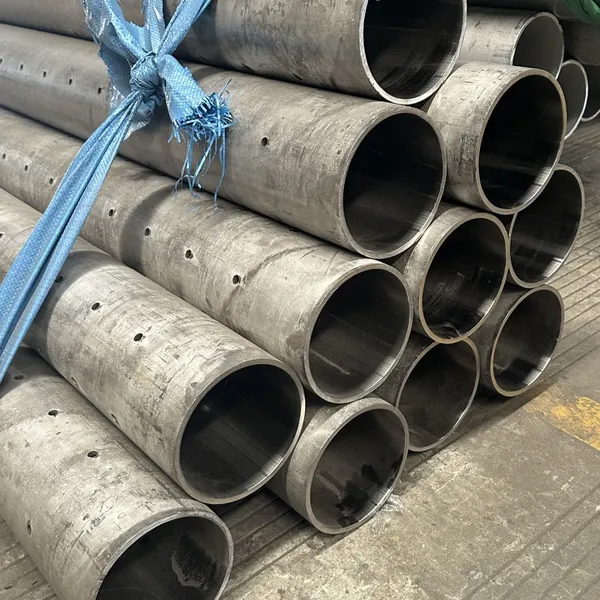

ASTM A789/790, S32205/S31803/S32750 Duplex Stainless Steel Tube Pipe
US$ 2200 - 3000
MOQ: 1 Ton
Key Specifications
Get Latest Price
Type:
Stainless Steel Pipes
Certification:
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
Monel K-500 N05500 2.4375 Nickel Alloy Seamless Tube for CorrsitionUS$ 800 - 1500MOQ: 1 Ton -
S31254 Seamless Stainless Steel Tube for Fertilizer PlantsUS$ 800 - 1500MOQ: 1 Ton
-
Inconel601/Uns N06601/ 2.4851/Ncf 601nickel Industry Alloy Seamless Tube for Thermal Reactors in Exhaust System of Petrol EnginesUS$ 800 - 1100MOQ: 1 Ton
-
Austenitic Stainless Steel Pipes and Tube ASTM A312 Tp321 for Aircraft Exhaust ManifoldsUS$ 800 - 1100MOQ: 1 Ton
-
ASTM A789/A789m Uns S31803 Duplex Steel Pipe Seamless Tubes ASTM A790/A790US$ 2200 - 3000MOQ: 1 Ton
Type
Stainless Steel Pipes
Certification
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape
Round
Grade
Other
Technique
Other
Surface Treatment
Polished
Standard
ASTM, AISI, GB, JIS, DIN, EN, Other
Specification
OEM
Trademark
ZHONGZHENG INTERNATIONAL
Origin
China
Basic Info.
Model NO.
DSP-021
Type
Welded
Technique
TIG
Material
Stainless Steel
Surface Treatment
Ap; Ba
Usage
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Special Purpose
Section Shape
Round
Length
0.5-12m
Quality
Good
Mechanical Property
Good
The Ratio of The Ferrite to Austenit
45/55
Transport Package
Plywood Box/ in Bundles
Specification
OD6.35mm-114.3mm, THK0.4mm-4.0mm
Trademark
ZHONGZHENG
Origin
China
HS Code
73064000
Production Capacity
400t/Month
Product Description
| Material | Stainless Steel 304/304L/316L |
| Shape | Round Tubes |
| Production Standards | ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on. |
| Outer Diameter | 16mm - 2000mm ; |
| Thickness | 0.8mm - 20 mm ; |
| Max Length | 3000 Meters; As per customers' request ; |
| Tolerance | According to the Standard, +/-10% Commonly ; |
| Surface Treatment | Bright Annealed (BA) |
| Application | Petrochemical Industry; Chemical Fertilizer Industry; Oil Refining Industry; Oil And Gas Industry; Light Industry And Food Industry; Pulp And Paper Industry; Energy And Environmental Industries. |
| Test | Flaring test; Flattening test; Bending Test; Hydraulic Test; Eddy Current test |
| Design | OEM / ODM / Customized |
| Certificate | ISO9001; ISO14001; PED. |
Stainless Steel Tube Tolerances
| Stainless Steel Heat Exchanger Tube Tolerances | ||||
| Standard | OD(mm) | WT(mm) | Length(meters) | Grade |
| ASTM A249, ASTM A269, EN 10217-7 |
15.88 to 114.3 | 0.3 to 4.0 | Up to 18.3 meter | 1.4301, 1.4306, 1.4404, AISI 304/304l/316l, S31803/S32205, etc |
| Standard | Outside Diameter | Thickness | Length | |
| ASTM A249 (A1016) |
±0.10 | ±10%S | OD OD≥50.8+5-0 |
|
| ≥25.4~ | ±0.15 | |||
| ≥38.1~ | ±0.20 | |||
| ≥50.8~ | ±0.25 | |||
| ≥63.5~ | ±0.31 | |||
| ASTM A269 (A1016) |
±0.13 | OD OD≥12.7±10% |
OD OD≥38.1+4.8-0 |
|
Factory Workshop & Production Lines
200series:201,202, etc
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
400series:409,409L,410,420,430,431,439,440,441,444
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
304/304L/316L Stainless Steel chemical composition and Mechanical properties
| Chemical Composition | Tensile Strength | Yield Strength | Elongation | Hardness HRB |
| Grade 304 Stainless Steel (100% & MPA) | ||||
| C≤0.08, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤10.5, 18≤Cr≤20 | ≥515 | ≥205 | ≥40 | ≤92 |
| Grade 304L Stainless Steel (100% & MPA) | ||||
| C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 8≤Ni≤12, 18≤Cr≤20 | ≥485 | ≥170 | ≥40 | ≤92 |
| Grade 316L Stainless Steel (100% & MPA) | ||||
| C≤0.03, Mn≤2, P≤0.045, S≤0.03, Si≤0.75, 10≤Ni≤14, 16≤Cr≤18 | ≥485 | ≥170 | ≥40 | ≤95 |
Stainless Steel Mechanical Properties:
| Stainless Steel Mechanical Properties | ||||||
| Grade | Tensile Strength | Yide Strength | Elogation | Hardness | Solution Annealing | |
| kgf/mm²(N/mm²) | kgf/mm²(N/mm²) | % | HRB(HV) | ºC | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) |
1040ºC-1150ºC Water Quenching |
| TP 304L | ≥50 (485) | ≥17 (170) | ||||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) |
1010ºC-1150ºC Water Quenching |
||
| SUS 304L | ≥49 (480) | ≥18 (175) | ||||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) |
1010ºC-1150ºC Water Quenching |
||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | ||||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 |
1000ºC-1100ºC Water Quenching |
|
| 1.4307 | (470-670) | ≥18 (180) | ||||
| 1.4401 | (510-710) | ≥21 (205) |
1020ºC-1120ºC Water Quenching |
|||
| 1.4404 | (490-690) | ≥19 (195) | ||||
Company Introduction
Zhejiang Zhongzheng stainless steel Co., Ltd. is located in Wenzhou City Zhejiang province, about one hour to Jiangsu, Shanghai and Hangzhou.
ZHONGZHENG is professional China Stainless Steel Pipe Manufacturer and Stainless Steel Tube Suppliers
, the company is specializing in industrial stainless steel welded tubes and special alloys tubes, with an annual production capacity of up to 7,000 tons.
The tubes are produced to conform to GB, ASTM/ASME, JIS, DIN, EN, GOST and ISO standards.
Some special requirements from clients can also be met. Due to excellent technicians, advanced production equipment, satisfactory inspection and testing equipment and perfect quality assurance system,
