JIS G3459 G3463 Standard SUS 304 316 Stainless Steel Pipe Seamless Steel Pipe SUS304TB/SUS304HTB
US$ 1392 - 1700
MOQ: 5 Tons
Key Specifications
Get Latest Price
Type:
Stainless Steel Pipes
Certification:
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
ASTM A312 Tp316 Stainless Steel Pipe Tubes With Pickled FinishUS$ 1200MOQ: 1 Ton -
Pickled, Bright, Polished Customized 1070 1050 Aluminum Round TubesUS$ 1350MOQ: 1 Ton
-
High Frequence Electric Welded Carbon Steel Pipe API5l/ ASTM A53/ ASTM 252/ API5l PipelineNegotiableMOQ: 1 Ton
-
A53 A106 Gr. B Carbon Steel Seamless Welded Black Painting Steel PipeNegotiableMOQ: 1 Ton
-
High Frequence Welded Carbon Steel Pipe API5l / ASTM A53 / ASTM 252 /API5CT/ISO3183-2007; ASTM A53, ASTM A252, As1163NegotiableMOQ: 1 Ton
Type
Stainless Steel Pipes
Certification
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape
Round
Grade
Other
Technique
Other
Surface Treatment
Polished
Standard
ASTM, AISI, GB, JIS, DIN, EN, Other
Specification
OEM
Trademark
ZHONGZHENG INTERNATIONAL
Origin
China
Basic Info.
Model NO.
758
Technique
Cold Rolled
Material
Stainless Steel
Surface Treatment
Polished
Usage
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose, Marine Pipe
Section Shape
Round
Length
6m or as Required
Standard
GB, ASTM, AISI, JIS, DIN, En, GOST
Grade
300 Series, Duplex and Super Duplex Steel
Certificate
CCS, ABS, GOST, Lr, Gl, BV, Dnv, Kr, Rina, Nkk
Transport Package
Plastic Wrapping, Bundling, Wooden Case
Specification
customizable
Trademark
ZHONGZHENG
Origin
China

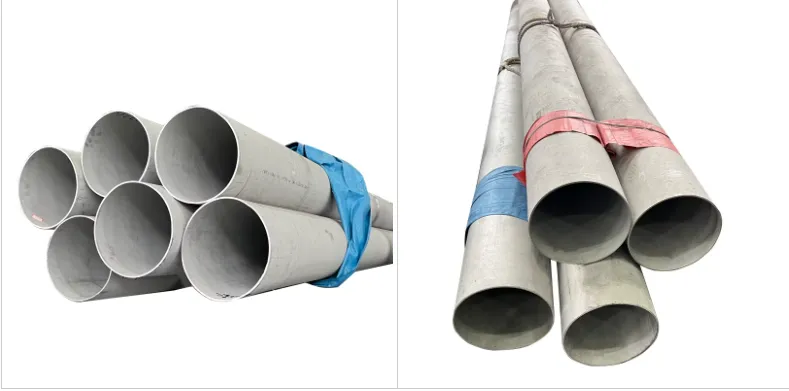

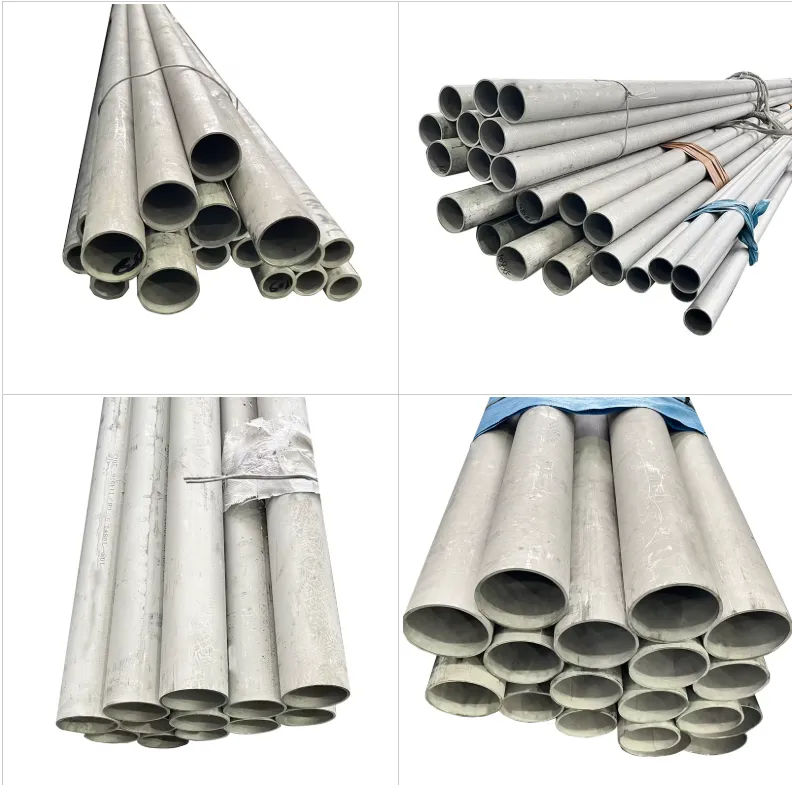

Product Description
ZHONGZHENG has more than 30 stainless steel production lines, which can produce seamless steel pipes with specifications of 6~630x0.5~50mm. The main steel grades: Austenitic stainless steel (304/304L/304H, 316/316L321/H, 347H, 317/317L, 310S), duplex stainless steel (1805/S31500S31803/S322, etc.), super duplex steel (S32750/S32760), alloy steel pipe (N08028, 600, 825800H, etc.) etc. The products can be produced according to GB, HG, SH, ASTM/ASME, JIS, DIN, EN and other standards.
| Item | Stainless Steel Seamless Tube/Pipe | |
| Standard | ASTM A213,A312,ASTM A269,ASTM A511,ASTM A790,ASTM A789,DIN 17456, DIN17458,JIS G3459,JIS G3463,GOST9941,EN10216, EN10305,BS3605,GB/T 14975; GB/T 14976; GB 13296; GB5310; GB9948 | |
| Material | 300 Series: 304, 304L, 304H, 316, 316L, 316H, 316Ti, 310S, 310H, 317, 317L, 321, 321H, 347, 347H Duplex and Super Duplex Steel: S31803, S32205, S2520, S32750, S32760 |
|
| Surface | Polishing,annealing,pickling,bright | |
| Shape | Round Pipe/Tube | |
| Type | Cold rolled | |
| Application | Heat Exchanger, Chemical & Petro-chemical, Onshore & Offshore Oil & Gas, Power Plant, Ship building, Pulp & Paper, Pharmaceutical | |
| size | Length | 6m or Customized |
| Outer diameter | OD: 12.7mm~630mm WT: 1mm~50mm | |
| Delivery time | Prompt delivery or as the order quantity. | |
| Package | Standard export seaworthy package,or as required | |
| Grade | Chemical composition % | |||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| SUS 304TB | 0.08 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - |
| SUS 304HTB | 0.04~0.10 | 0.75 max. | 2.00max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - |
| SUS 304LTB | 0.030 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 9.00~13.00 | 18.00~20.00 | - |
| SUS 309STB | 0.15 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - |
| SUS 310TB | 0.08 max | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - |
| SUS 310STB | 0.15 max. | 1.50 max. | 2.00max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - |
| SUS 316TB | 0.08 max. | 1.50 max. | 2.00max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - |
| SUS 316HTB | 0.08 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| SUS 316LTB | 0.04~0.10 | 0.75 max. | 2.00max. | 0.040 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 |
| SUS 316TiTB | 0.030 max. | 1.00 max. | 2.00max. | 0.040 max. | 0.030 max. | 12.00~16.00 | 16.00~18.00 | 2.00~3.00 |
| Symbol of grade | Mechanical properties: | ||||
|---|---|---|---|---|---|
| Tensile strength kg f/П {N/П} |
proof stress kg f/П {N/П} |
Elongation % | |||
| 20 mm min.in outside diameter | 10 mm or over to and excl. 20 mm in outside diameter | Under 10 mm in outside diameter | |||
| No.11 test pieceNo.12 test piece | No.11 test piece | No.11 test piece | |||
| SUS304TB | 53{520} min | 21{206} min. | 35 min. | 30 min. | 27 min. |
| SUS304HTB | 53{520} min | 21{206} min. | 35 min. | 30 min. | 27 min. |
| SUS304LTB | 49{481} min | 18{177} min. | 35 min. | 30 min. | 27 min. |
| SUS309TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS309STB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS310TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS310STB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316TB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316HTB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| SUS316LTB | 49{481} min | 18{177} min | 35 min. | 30 min. | 27 min. |
| SUS316TiTB | 53{520} min | 21{206} min | 35 min. | 30 min. | 27 min. |
| JIS | ASTM/ASME | BS | DIN |
|---|---|---|---|
| SA-213 T91 | 17175-X10CrMoVNb91 | ||
| G3463 SUS304TB | SA-213 Tp-304 | 17456 X2CrNi1911 | |
| G3463 SUS304HTB | SA-213 Tp 304H | 3059 CFS304S51 | |
| G3463 SUS316TB | SA-213 Tp 316 | 17456 X5CrNiMo17122 | |
| G3463 SUS316HTB | SA-213 Tp 316H | 3059 CFS316S51 | |
| G3463 SUS321TB | SA-213 Tp 321 | 17456 X6CrNiTi1810 | |
| G3463 SUS321HTB | SA-213 Tp 321H | 3059 CFS321S51 | |
| G3463 SUS347TB | SA-213 Tp 347 | 17456 X5CrNiNB1810 | |
| G3463 SUS347HTB | SA-213 Tp 347H | 3059 CFS347S51 |
