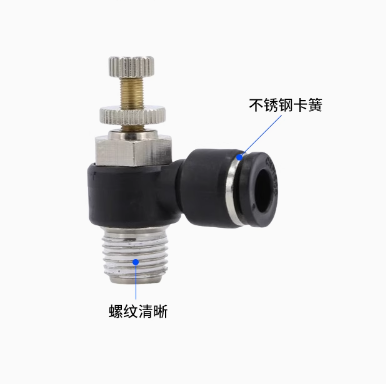

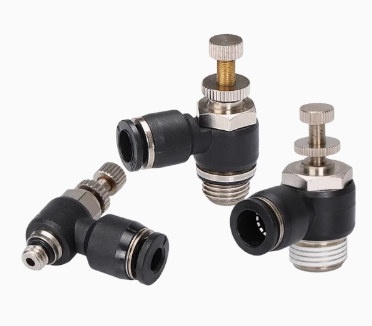

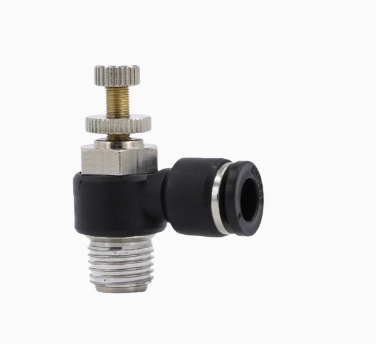

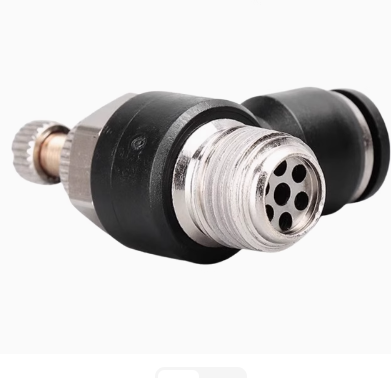

Help CenterTracheal Throttle Valve Quick Connector Cylinder Speed Control Valve Adjustable Sl4 6 8 10 12 - M5 01 02 03 04
Related Products
-
Tubular Overflow Valve Pressure Regulating Valve YF-L20H4-S Hydraulic Station Hydraulic Machine Pressure Valve YF-L32H4-S Hydraulic ValveNegotiableMOQ: 1 Piece -
Solarhome 8036528 AT310584 Hydraulic Solenoid Valve for John Deere Loader 210K 310JNegotiableMOQ: 1 Piece
-
Dump Truck Control Valve, Four Working Positions Simple Operation High Performance Proportional Control Valves With PTO SwitchNegotiableMOQ: 1 Piece
-
Hydraulic Pattern Changer Spool Valve Fit for John Deere Tractor Excavator Replace# OCUKAC2318NegotiableMOQ: 1 Piece
-
Customized Pilot Proportional Pressure Reducing ValveNegotiableMOQ: 1 Piece
The cylinder throttle valve controls the movement speed of the cylinder by altering the flow rate and flow volume of the fluid. When the valve core is open, the fluid can flow freely, and the movement speed of the cylinder piston is faster. However, when the valve core is closed or partially closed, the fluid flow is restricted, and the movement speed of the cylinder piston is slowed down. The working principle of the cylinder throttle valve is based on the Bernoulli principle and the bottom resistance principle in fluid mechanics, and it is achieved by adjusting the cross-sectional area. Additionally, the throttle valve is widely used in locomotive braking systems, controlling the intake and exhaust of the locomotive brake cylinder according to the pressure changes in the auxiliary pipe. In the pneumatic-electric drive mode, the pneumatic valve of the cylinder connects the air source and the cylinder through an air pipe, using the pressure of the gas to push an electromagnetic valve, thereby controlling the movement of the valve core. The throttle valve is a controllable valve that controls the air intake into the engine, and there are two types: the traditional pull-line type and the electronic throttle valve. It is called the throat of the automotive engine.
