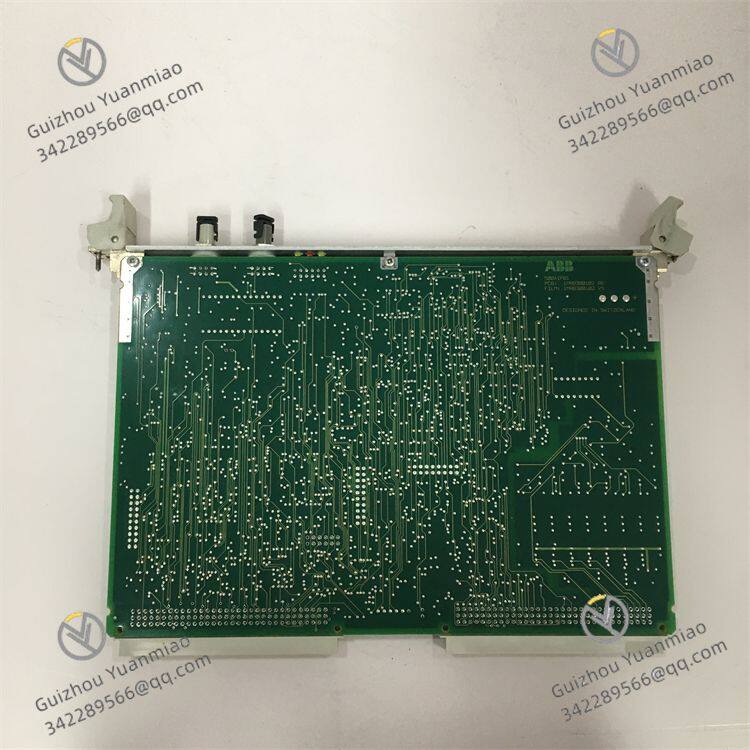

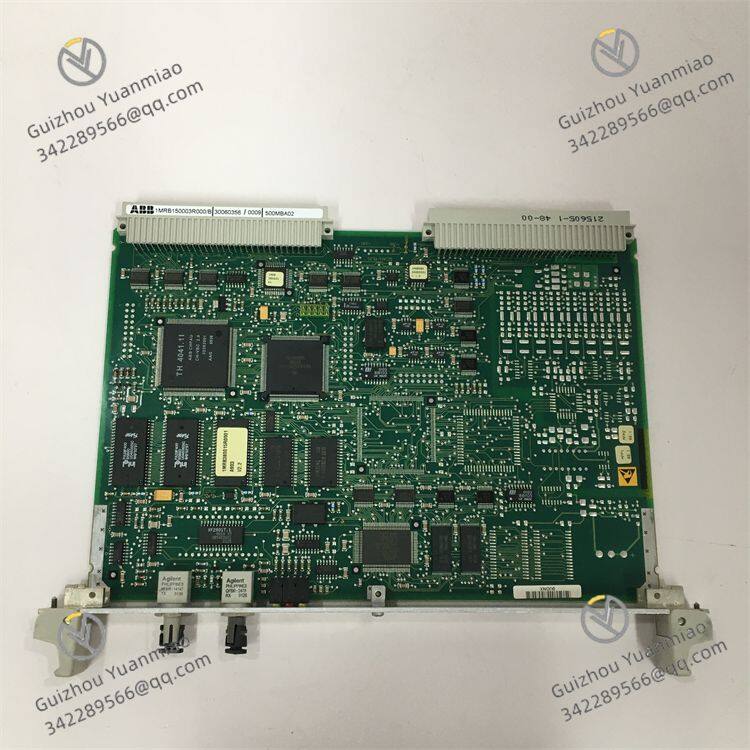

ABB 500MBA02 1MRB150003R000 B Control Module

ABB 500MBA02 1MRB150003R000 B is a high-performance modular bus adapter designed for the industrial automation field. It belongs to the ABB 500 series industrial control product system and mainly undertakes the tasks of conversion and data interaction between different industrial bus protocols. In complex industrial control systems, it can convert different bus signals from devices such as PLCs, sensors, and actuators, realizing seamless communication between heterogeneous networks, and serving as a key bridge connecting distributed control units and the central control system.

• Power Parameters: The working power supply is 24V DC, with an allowable voltage fluctuation range of ±10% and a rated power consumption of ≤8W. It can adapt to voltage fluctuations of the industrial on-site power supply, providing reliable power support for the stable operation of the module.

• Bus Protocol Support: Supports mainstream industrial bus protocols such as Modbus RTU, Modbus TCP/IP, and Profibus DP, enabling bidirectional data conversion between different protocols with a conversion delay of ≤10ms.

• Communication Interfaces: Equipped with 2 RS-485 interfaces (supporting Modbus RTU/Profibus DP) and 1 Ethernet interface (supporting Modbus TCP/IP). All interfaces have electrical isolation protection with an isolation voltage of 2500V AC.

• Data Processing Capacity: It can handle a maximum of 1024 input registers and 1024 output registers, supporting 32-bit data format, meeting the batch data transmission requirements of medium and large industrial control scenarios.

• Environmental Adaptability: The operating temperature range is -10℃-+60℃, and the storage temperature range is -40℃-+85℃; the relative humidity is 5%-95% (non-condensing); the protection level is IP20, suitable for installation in control cabinets to resist dust intrusion.

• Physical Specifications: Adopts DIN rail mounting, with dimensions of approximately 120mm×80mm×60mm (length × width × height) and a weight of about 300g. The compact design saves space in the control cabinet and facilitates system integration.

•


• Multi-Protocol Conversion Capability: It can achieve seamless conversion between multiple protocols such as Modbus and Profibus, breaking down communication barriers between industrial equipment of different brands and types, enabling heterogeneous systems to form a unified data interaction network, and simplifying the integration difficulty of industrial control systems.

• Efficient Data Transmission: It has fast data processing and conversion capabilities, with a conversion delay as low as 10ms, which can respond to signal changes in industrial sites in real time, ensuring the timely transmission of control commands and monitoring data, and meeting the real-time requirements of industrial production.

• Stable and Reliable Operation: The interface adopts a high-level electrical isolation design, effectively resisting electromagnetic interference, surges and other noises in industrial sites, reducing data transmission errors; at the same time, the module has overvoltage and overcurrent protection functions, improving the operational reliability in complex power supply environments.

• Flexible Configuration and Management: It supports protocol parameter setting through dedicated configuration software or web pages, and can customize data mapping relationships to adapt to communication needs in different scenarios; it is equipped with LED indicators to intuitively display power supply, communication status and fault information, facilitating on-site maintenance personnel to quickly troubleshoot problems.

• Easy System Expansion: The modular design supports collaborative work with other modules of the ABB 500 series (such as I/O modules and gateways). The number of communication interfaces and protocol types can be flexibly expanded according to the system scale without reconstructing the overall system architecture, reducing later upgrade costs.

• Industrial Automation Production Lines: In production lines such as automobile manufacturing and electronic assembly, it connects PLCs, robots, conveyor controllers and other equipment of different brands, realizing unified collection of production data and coordinated issuance of control commands, ensuring that all equipment operate efficiently according to the rhythm, and improving the overall automation level of the production line.

• Intelligent Building Control Systems: Used to connect air conditioning units, lighting systems, security equipment, etc. in buildings, incorporating equipment with different protocols into a unified management platform, realizing centralized monitoring and linkage control of temperature, energy consumption, and security status, and optimizing the energy utilization and management efficiency of buildings.

• Municipal Public Facilities: In municipal systems such as urban water supply and sewage treatment, it connects PLCs, flow meters, pressure sensors and other equipment of various pump stations, uniformly transmits scattered monitoring data to the central monitoring center, realizing remote monitoring and intelligent scheduling of the entire pipe network system, and ensuring the stable operation of public facilities.

• Energy Management Systems: In energy monitoring scenarios of factories and parks, it connects power meters, gas meters, frequency converters and other equipment, collects energy consumption data of various links and converts them into unified protocol signals, which are uploaded to the energy management platform, providing data support for energy consumption analysis and load regulation, and helping to save energy and reduce emissions.

• Metallurgical and Chemical Industries: In steel rolling workshops of iron and steel plants and reaction device areas of chemical plants, it connects control units and monitoring instruments of various production equipment, realizing cross-system sharing and collaborative control of production parameters (such as temperature, pressure, flow), and ensuring the stability and safety of the production process.
