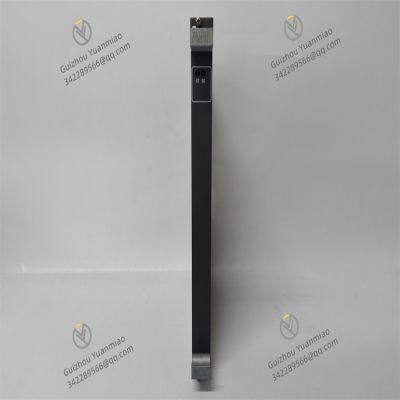

ABB GJR2391500R1210 Universal Input Module

ABB GJR2391500R1210 is an I/O module that plays an important role in industrial automation control systems, belonging to ABB's process automation product series. It is specially designed to meet the needs of signal acquisition and control in complex industrial environments. With stable performance and reliable operation, it has become an indispensable key component in automation systems of many industrial fields, providing strong support for achieving precise monitoring and efficient control of industrial production processes.

•


• Power Supply Specifications: Adapted to a 24V DC power supply, this power supply standard is widely used in the field of industrial automation and can be well compatible with the power supply systems of most industrial control systems. Its power consumption is low, and under normal working conditions, the power consumption usually does not exceed 5W, which helps reduce the energy consumption of the entire automation system and conforms to the industrial development trend of energy conservation and environmental protection.

• Input/Output Channels: Equipped with multiple digital input/output channels, the specific number varies according to product models and configurations, generally providing 16 or 32 input/output points. These channels can accurately receive digital signals from sensors, switches and other equipment, and can also send control signals to actuators, relays and other equipment, realizing effective monitoring and control of various equipment in industrial sites.

• Communication Interface: Equipped with a standard fieldbus communication interface, such as PROFIBUS DP, etc. The communication rate can be adjusted according to system requirements, up to 12Mbps. The high-speed communication capability ensures the real-time and accuracy of data transmission between the module and the upper-level control system, facilitating the centralized management and collaborative control of the entire automation system.

• Environmental Adaptability: The operating temperature range is -20℃ to +60℃, which can adapt to the relatively wide temperature changes that may occur in industrial sites. In terms of relative humidity, it can work stably in an environment of 5% - 95% (non-condensing), and has good adaptability to some humid industrial scenarios. In addition, the module also has certain anti-vibration and anti-impact performance, which can resist the impact of mechanical vibration and impact in industrial sites to a certain extent, ensuring the stable operation of the equipment.

• Physical Specifications: Adopting a compact modular design, the size is approximately 150mm×100mm×80mm, and the weight is about 0.8kg. It occupies a small space, which is convenient for installation and layout in the control cabinet, and is especially suitable for industrial environments with limited space. The installation method adopts the standard DIN rail installation, the installation process is simple and fast, and it can be quickly integrated into the existing automation system.

•


• High-Precision Signal Processing: The module adopts advanced signal processing circuits inside, which can accurately filter and shape the input digital signals, effectively eliminate signal noise caused by electromagnetic interference in industrial sites, and ensure that the collected signals are true and reliable. At the same time, the output control signals can also maintain high precision, ensuring that actuators and other equipment can act accurately according to preset instructions, improving the control precision of industrial production processes.

• Powerful Diagnostic Function: Equipped with perfect self-diagnosis and fault alarm functions, it can real-time monitor the operation status of the module itself, such as power supply voltage, communication status, channel working conditions, etc. When an abnormal situation is detected, it will promptly send fault alarm information to the upper-level control system through the communication interface, and display the fault status through the indicator light on the module, which is convenient for maintenance personnel to quickly locate the cause of the fault, shorten the fault troubleshooting and repair time, and improve the availability of the system.

• Flexible Configuration and Expansion: It supports parameter setting and function configuration through special configuration software. Users can flexibly adjust the working mode of input/output channels, communication parameters, etc. according to actual industrial control needs, so that the module can adapt to different application scenarios. In addition, the module also supports expansion and combination with other I/O modules, forming a larger-scale I/O system through fieldbus connection, meeting the needs of industrial automation systems for more signal acquisition and control, and having good expandability.

• High-Reliability Design: In terms of circuit design, component selection and production process, full consideration is given to the harsh requirements of the industrial environment. High-quality industrial-grade components are used to ensure that the module has a long service life and stable operation performance. The module is also equipped with overvoltage and overcurrent protection circuits. When there is a power supply abnormality or external circuit failure, it can cut off the relevant circuits in time to protect the module itself and connected equipment from damage, improving the reliability and safety of the entire automation system.

•


• Petrochemical Industry: In processes such as petroleum refining and chemical production, the module can be used to collect digital signals of key parameters such as temperature, pressure and liquid level of reaction kettles, and control the start-stop and operation status of valves, pumps and other equipment, realizing real-time monitoring and automatic adjustment of the production process, ensuring the safe and stable progress of the production process, and improving product quality and production efficiency.

• Power Industry: In the auxiliary systems of power plants and the automation control of substations, the module can collect various switch states, equipment operation signals, etc., and remotely control fans, water pumps, circuit breakers and other equipment. Through cooperation with the monitoring system, it realizes comprehensive monitoring of power production and transmission processes, timely detects and handles abnormal situations, and ensures the reliable operation of the power system.

• Manufacturing Industry: In automated production lines such as automobile manufacturing and mechanical processing, it can be used to collect sensor signals from various stations of the production line, such as workpiece in-place signals and equipment operation status signals, and control the actions of conveyors, robots and other equipment. Through precise signal acquisition and control, the automatic operation and collaborative work of the production line are realized, improving production efficiency and the consistency of product quality.

• Municipal Engineering: In municipal automation fields such as urban sewage treatment and water supply systems, the module can collect signals such as pool liquid level, pipeline pressure, and water pump operation status, and control the operation of water pumps, valves and other equipment according to preset control logic, realizing automatic management of municipal infrastructure, improving the efficiency and stability of water supply and sewage treatment, and ensuring the normal production and living order of the city.
