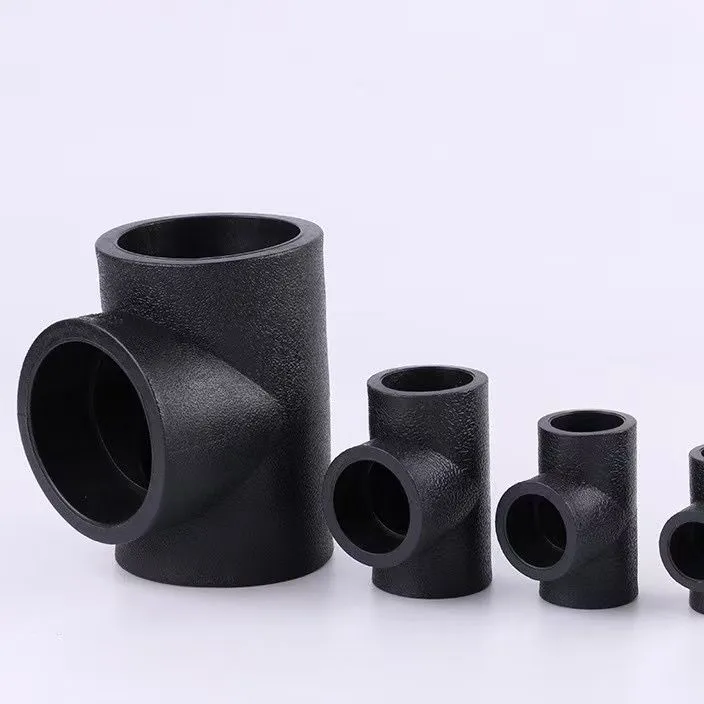

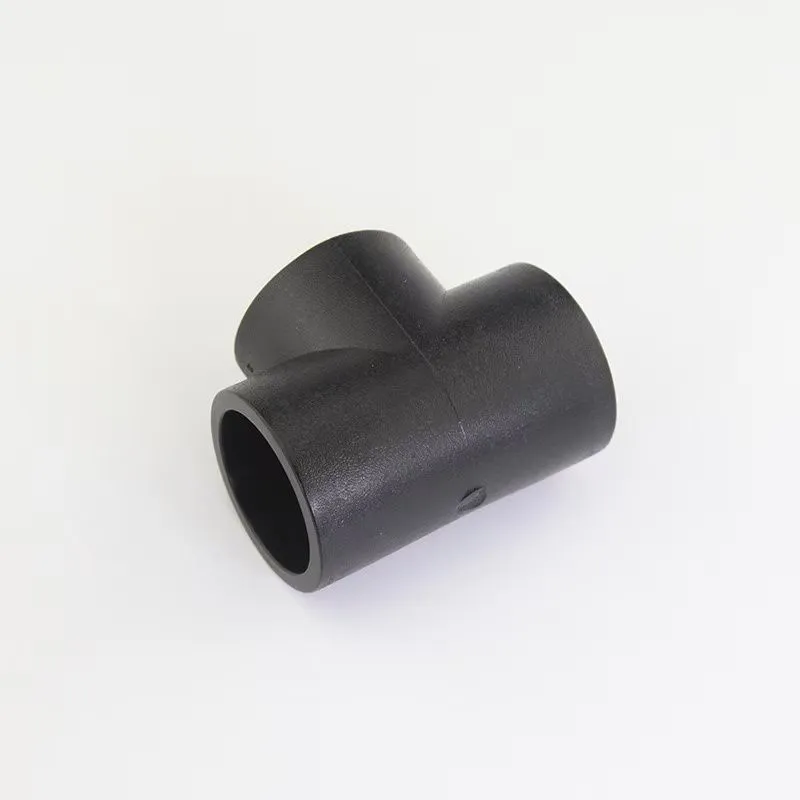

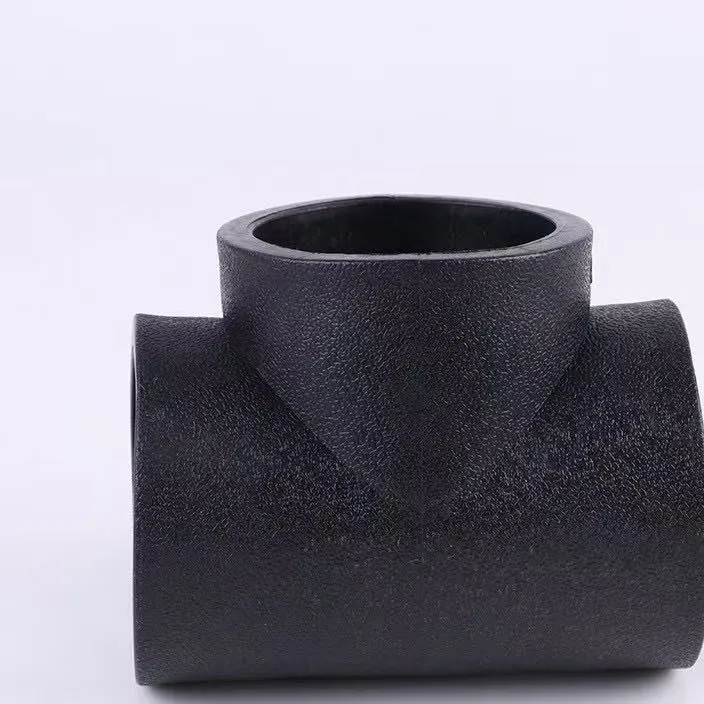

HDPE socket equal-diameter tee is the key fitting to realize the three-way equal-diameter pipe connection in the pipeline system, and is widely used in many fields due to the advantages of HDPE material and socket structure.
Strong adaptability of equal diameter
The three interfaces of the tee are exactly the same size, which can accurately dock HDPE pipes of the same specification without the need for additional reducer accessories, ensuring the uniform diameter of the pipeline system, reducing local resistance during fluid transportation, and improving the overall flow efficiency.
Socket connections are reliable
Socket design with hot-melt or rubber ring seal connection at the interface:
When the hot-melt socket is inserted, the pipe and the tee interface are melted to form an integrated structure, with high connection strength, no leakage risk, and can withstand high pressure (usually ≥ 1.6MPa);
The rubber ring sealing socket is easy to operate, relying on the compression seal of the elastic rubber ring, which is suitable for the slight thermal expansion and cold contraction of the pipeline, and is suitable for low-pressure scenarios (≤ 1.0MPa).
Corrosion and aging resistance
HDPE material has excellent chemical stability, can resist acid, alkali, salt and other corrosive media, and has strong UV resistance and weather resistance, and can last more than 50 years in underground or open air environments, reducing maintenance and replacement costs.
Good impact resistance and flexibility
The material has high toughness, is not easy to be brittle at low temperature, and can withstand the impact of external soil extrusion and vehicle crushing, especially suitable for buried pipeline systems and complex geological environments.
Low fluid resistance
The inner wall is smooth and the tee corner is rounded, which reduces the eddy current and resistance of the fluid at the diversion and reduces the energy consumption, which is suitable for water supply and drainage and fluid transportation systems with high requirements for conveying efficiency.
Easy and efficient installation
The socket structure does not require complex tools, and the hot-melt or rubber ring connection can be completed quickly, the construction period is short, and the interface sealing is not affected by human operation error, which reduces the construction difficulty.
Application Scenarios:
Building water supply and drainage systems
It is used for the branch of domestic water supply pipes in residential, office buildings, hotels and other buildings (such as the diversion of toilets and kitchen waterways), or the three-way convergence of sewage and waste water pipelines (such as the connection of balconies and kitchen sewage with the main sewage pipes) to realize the diversion/confluence of pipes of the same diameter.
Municipal engineering
In the urban rainwater and sewage pipe network, it is used for the equal diameter connection between the main road and the branch pipeline (such as the residential sewage pipe is connected to the municipal main sewage pipe);
In the municipal water supply system, the branch pipe is diverted from the main pipeline to ensure the water supply of users along the line.
Industrial piping systems
In the chemical, pharmaceutical, electroplating and other industries, it is used for the pipeline diversion of corrosive fluids (such as industrial wastewater, chemical solvents) to ensure the safety of transportation with corrosion resistance; It is also suitable for the three-way distribution of neutral fluids such as industrial cooling water and compressed air.
Agroforestry irrigation system
It is used for the branch of irrigation pipelines in farmland, orchards and green belts, and diverts the water flow of the main water pipe to the branch pipes in different areas to ensure the uniform water volume of each irrigation point and improve the irrigation efficiency.
Ground source heat pump system
In the water circulation pipeline of the soil source or water source heat pump, the equal diameter branch connection of the underground buried pipe is used to adapt to the low temperature and humid conditions of the buried environment and ensure the stable water circulation of the heat pump system.
