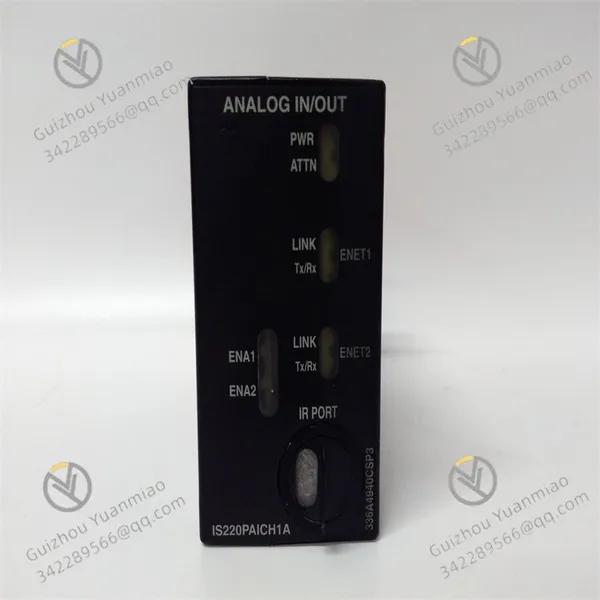

IS220PAICH1A GE Analog Input Module photo-2
IS220PAICH1A GE Analog Input Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




The IS220PAICH1A is an analog input module in GE's (General Electric) Mark VIe series, primarily used for collecting and processing analog signals in industrial automation control systems. It is widely applied in the monitoring and control of large-scale equipment such as turbines and generators. Here is its detailed information:
I. Basic Parameters

  • Model: IS220PAICH1A

  • Manufacturer: GE Power (General Electric Power Division)

  • Series: Mark VIe (a modular system designed for industrial-grade control)

  • Input Type: Analog input (supports current and voltage signals)

    • Current input: 4-20mA (typical)

    • Voltage input: 0-10V DC (optional)

  • Number of Channels: 8 independent analog input channels

  • Accuracy: ±0.1% of full scale (within normal operating temperature range)

  • Isolation: Electrical isolation between channels, with isolation voltage ≥250V AC

  • Sampling Rate: Up to 100Hz per channel (configurable)

  • Operating Voltage: 24V DC (allowable range: 18-32V DC)

  • Power Consumption: Approximately 5W (at maximum load)


IS220PAICH1A (3)


    • II. Environmental and Physical Characteristics

    • Operating Temperature Range: -40°C to 70°C (industrial-grade wide-temperature design)

    • Storage Temperature Range: -40°C to 85°C

    • Humidity: 5% to 95% RH (non-condensing)

    • Protection Rating: IP20 (suitable for installation in control cabinets)

    • Dimensions: Approximately 120mm × 80mm × 30mm (length × width × height, excluding connectors)

    • Weight: Approximately 0.2kg

    • III. Functions and Features
    • High Reliability

      • Uses industrial-grade components, with resistance to electromagnetic interference (EMI) and radio frequency interference (RFI), adapting to complex industrial environments.

      • Supports online hot swapping, allowing module replacement during system operation without affecting the overall control process.

    • Signal Processing Capability

      • Built-in signal filtering circuit, which can effectively suppress high-frequency noise and ensure the stability of signal collection.

      • Supports wire break detection function, which can send fault alarms in real-time when the input signal is abnormal (such as wire breakage).

    • Communication and Integration

      • Compatible with the backplane bus of the GE Mark VIe system (such as IC698 bus), enabling seamless communication with other modules (such as processor modules and output modules).

      • Supports parameter configuration and status monitoring through system software (such as GE CIMPLICITY).

    • Diagnostic Functions

      • Built-in self-diagnostic circuit, which can monitor module power supply and internal circuit faults, and feedback status through indicator lights or system alarms.

      • Supports channel-level fault isolation, so that a single channel fault does not affect the normal operation of other channels.

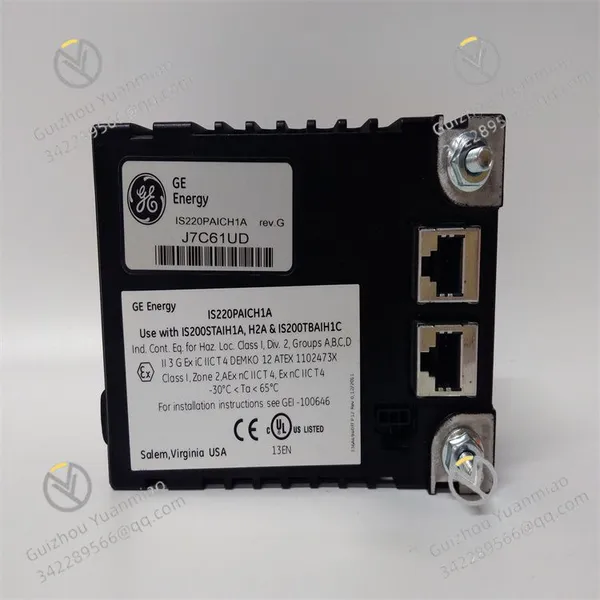

IS220PAICH1A (2)
