Home > Electrical & Electronics > Electrical Control System > IS220PDIOH1B GE Digital Input/output Module

IS220PDIOH1B GE Digital Input/output Module

IS220PDIOH1B GE Digital Input/output Module thumbnail-3

IS220PDIOH1B GE Digital Input/output Module photo-1

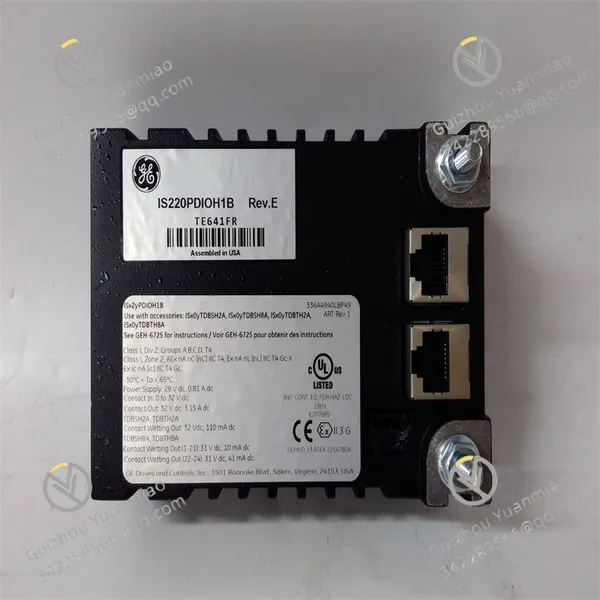

IS220PDIOH1B GE Digital Input/output Module photo-2

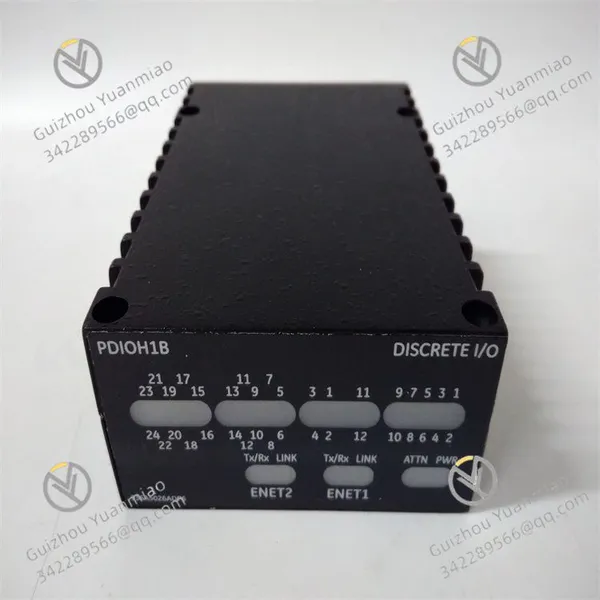

IS220PDIOH1B GE Digital Input/output Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

The IS220PDIOH1B is a digital input/output module in General Electric (GE)'s Mark VIe series. It is primarily used for collecting and outputting digital signals in industrial automation control systems, and is widely applied in the control of large-scale units in fields such as electric power, energy, and heavy industry. Here is its detailed information:

I. Basic Parameters

Model: IS220PDIOH1B
Manufacturer: GE Power (General Electric Power Division)
Series: Mark VIe (industrial-grade modular control system)
I/O Type: Digital input/output hybrid module

Rated load voltage: 250V AC / 30V DC
Rated load current: 2A (resistive load), 1A (inductive load)
Input signal range: 24V DC (typical), allowable range 18-32V DC
Input current: ≤5mA (when high level is active)
Digital input channels: 16 channels, supporting dry contact (passive contact) or wet contact (active signal) input
Digital output channels: 16 channels, relay output (normally open contacts)

Isolation Method: Electrical isolation between channels, isolation voltage ≥250V AC; isolation between module and system bus
Response Time:

Input response: ≤1ms (from signal change to system recognition)
Output response: ≤5ms (from system command to contact action)

Operating Voltage: 24V DC (allowable range 18-32V DC)
Power Consumption: Approximately 8W (at full load)

II. Environmental and Physical Characteristics
Operating Temperature Range: -40°C to 70°C (industrial-grade wide-temperature design)
Storage Temperature Range: -40°C to 85°C
Humidity: 5% to 95% RH (non-condensing)
Protection Rating: IP20 (suitable for installation in control cabinets)
Dimensions: Approximately 140mm × 90mm × 35mm (length × width × height, excluding connectors)
Weight: Approximately 0.35kg
III. Functions and Features
Hybrid I/O Design

Integrates 16 digital input channels and 16 relay output channels, reducing the number of system modules and saving installation space.
Input supports programmable filtering time (0.1ms-100ms), which can suppress on-site interference signals (such as contact bounce).

Highly Reliable Output

The relay output uses industrial-grade sealed relays with a mechanical life of ≥1 million times and an electrical life of ≥100,000 times (under rated load).
The output contacts are equipped with overload protection. When the load current exceeds 150% of the rated value, the built-in protection circuit can delay cutting off the output (to avoid relay damage).

Comprehensive Diagnostic Functions

Input channels monitor faults such as wire breakage and overvoltage in real-time, and feed back through system alarms.
Output relay status self-check (such as contact adhesion detection), and fault information can be displayed through Mark VIe system software (such as CIMPLICITY).

Industrial-Grade Anti-Interference Capability

Complies with EN 61000-6-2 electromagnetic interference resistance standards for industrial environments, and can resist electromagnetic noise generated by on-site motors, frequency converters and other equipment.
The module shell adopts a grounding design to further reduce electromagnetic coupling interference.

Flexible Compatibility

Compatible with the Mark VIe system backplane bus, enabling seamless communication with processor modules (such as IS220PRAH1A), analog modules, etc.
Supports online hot swapping, so replacing the module does not require interrupting system operation, improving maintenance efficiency.
